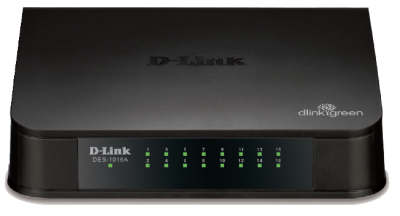

D-Link DES-1016A 16-port 10/100 Base-T Unmanged Switch

Buy D-Link DES-1016A 16-port 10/100 Base-T Unmanged Switch  online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of D-Link products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

The D-Link DES-1016A 16-Port 10/100 Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy

savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V

qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

The DES-1016A 16-Port 10/100 Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link,

allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

The switch also conserves energy by adjusting power usage according to different cable lengths of connected devices without affecting performance.

The DES-1016A was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations

that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses

recyclable packaging that helps reduce waste, complying with the WEEE directive.

• Built-in D-Link Green Technology
• Inexpensive Fast Ethernet solution for
• Home/SOHO
• Sixteen 10/100 Mbps Fast Ethernet ports
• 3.2 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast
• Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,216 Byte Jumbo Frames
• RoHS compliant
• Plug-and-play installation

IEEE 802.1P QoS support

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3az Energy-Efficient Ethernet

(EEE)

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

CSMA/CD

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

Star

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed

Per device: Power

Store-and-forward

8K entries per device

Automatic update

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

?256 KBytes per device

Switching 5 V / 1 A Level V Power

Adapter

Power Consumption

Power On (Standby):

AC input: 2.36 watts

DC input: 1.2 watts

Maximum:

AC input: 2.69 watts

DC input: 1.6 watts

0 to 40 ?C (32 to 104 ?F)

-10 to 70 ?C (14 to 158 ?F)

10% to 90% RH non-condensing

5% to 90% RH non-condensing

155.7 x 122 x 41 mm

(6.13 x 4.80 x 1.61 inches)

CE Class B

FCC class B

CB

RoHS

EuP
