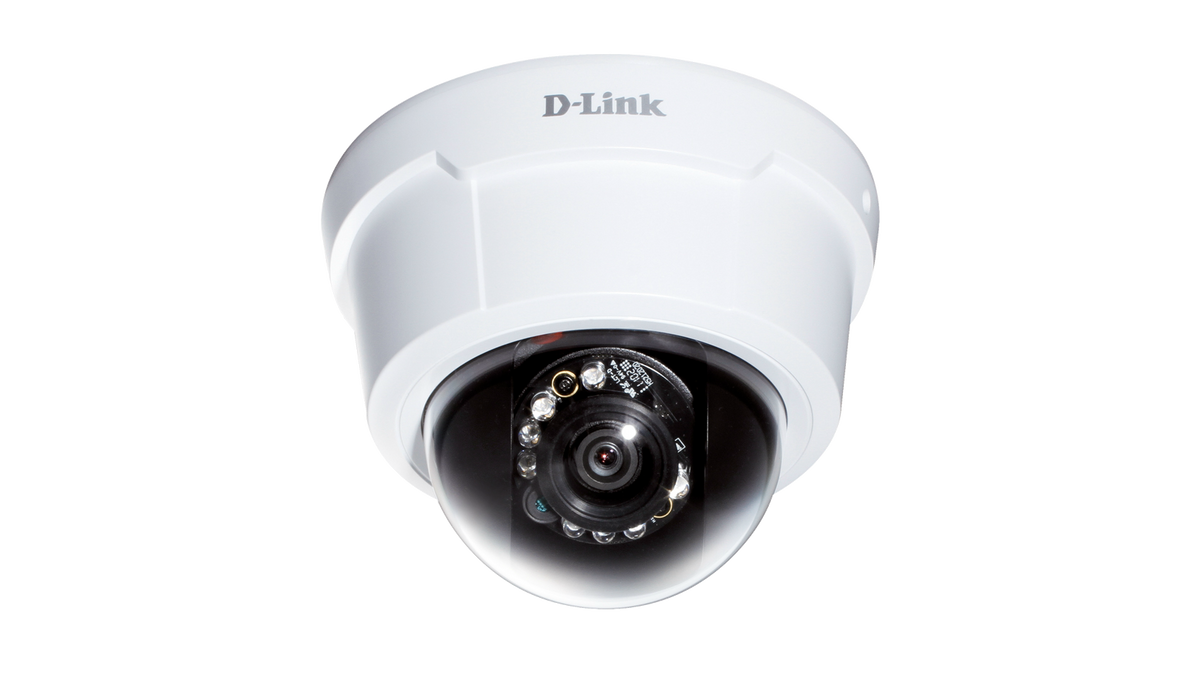

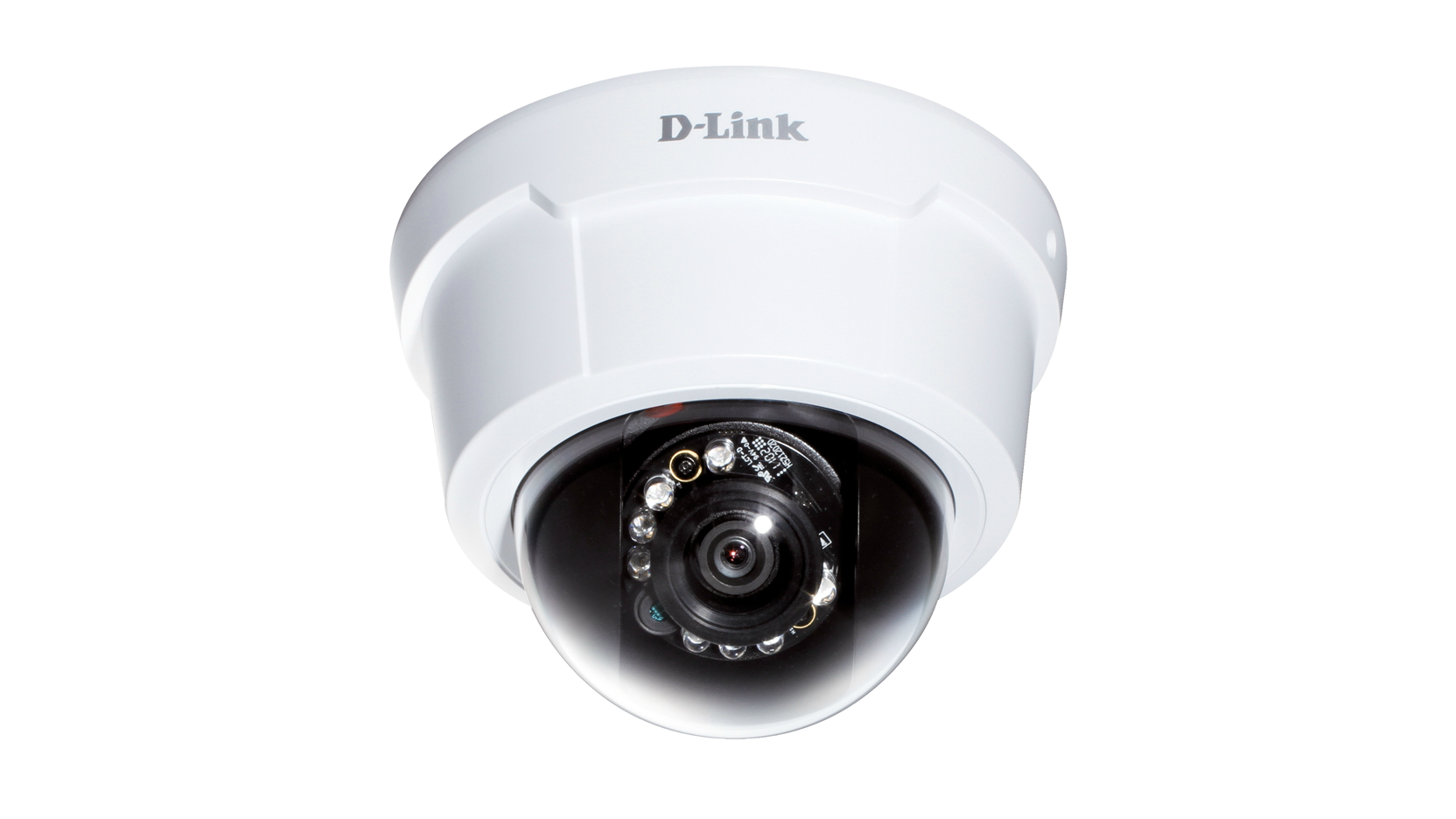

D-Link DCS‑6113 Full HD PoE Day & Night Fixed Dome Network Camera

Buy D-Link DCS‑6113 Full HD PoE Day & Night Fixed Dome Network Camera online at Rs. 15500 Buy complete range of CCTV Cameras on Vmart.pk, We Offer home delivery all over Pakistan.

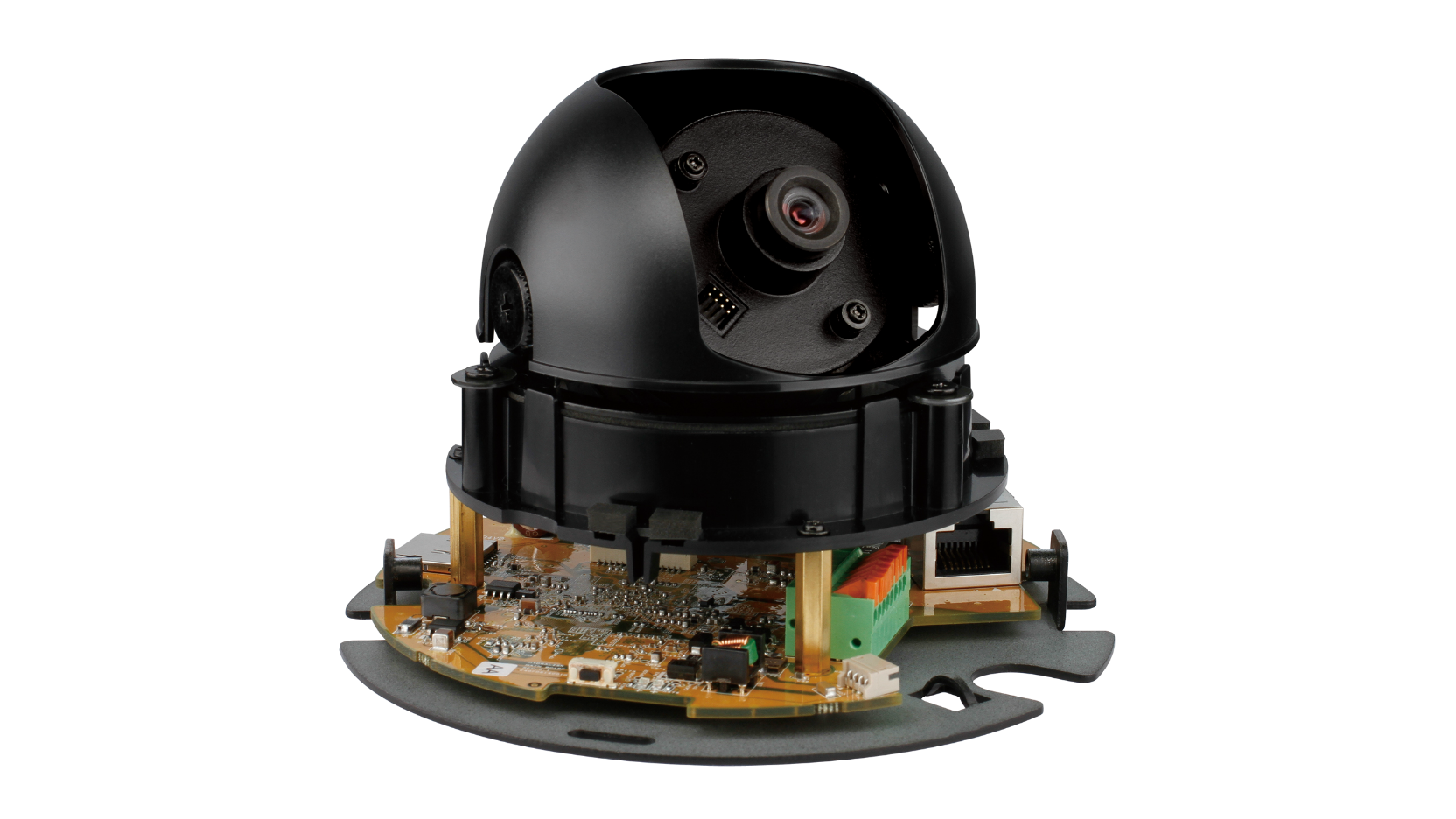

D-Link’s DCS-6113 Full HD PoE Day/Night Fixed Dome Camera - with IR LED features industry-leading High-Definition (Full 1080p HD) Megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. DCS-6113 connects to a network to provide high-quality live video over the Internet. This cameras also features a 3-axis inner bracket that allows for flexible observation area adjustment. With the free-bundled D ViewCam 32-channel recording software, this IP camera provides a complete solution for high-quality live viewing and reliable recording. The camera also have a built-in MicroSD card slot which can be used for local backup by storing important events on an easily retrievable MicroSD card.

The DCS-6113 delivers Full HD 16:9 widescreen IP video surveillance which provides vivid high-quality video, making it easier to view and monitor footage.

The DCS-6113 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, DCS-6113 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

The DCS-6113 can be used during both day and night. The ICR filter allows the camera to capture crisp color images during the daytime and detailed grayscale at night, in low-night conditions, and even in complete darkness.

Anti-tamper features make the DCS-6113 camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

The DCS-6113 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. They also incorporate Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device. This extends monitoring capability, allowing users to check the camera’s video feed while on the go without a computer.

The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly important events to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

Customise your Region of Interest (ROI) by simply drawing a rectangle on the full view display in the web interface. Being able to digitally move the ROI is an advantage for a fixed camera since it can utilize the virtual auto pan along with preset point settings to display vivid details from HD video footage. The viewing window also allows you to utilize zoom to obtain more in-depth footage.

Open Network Video Interface Forum (ONVIF) compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-6113 ia ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.

• Hardware Profile
• 1/2.7" 2 Megapixel CMOS progressive sensor
• Minimum Illumination: 0 lux (with IR illuminator)
• Lens: fixed length 4.0mm, f1.5, 16x digial zoom
• Built-in Infrared-Cut Removable (ICR) Filter module
• Field of View
• Horizontal: 73.5°
• Image Features
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• 5 Configurable privacy masks zone
• Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness
• Video Compression
• H.264/MPEG4/MJPEG compression (simultaneous operation)
• H.264/MPEG-4 multicast streaming
• JPEG for still images
• Video Resolution
• 1920 x 1080 @ 15fps
• 1280 x 720 @ 30fps
• 320 x 240 @ 30fps
• 1280 x 1024 @ 20fps
• 640 x 480 @ 30fps
• 176 x 144 @ 30fps
• Audio Support
• 2-way Audio Support
• Audio Mute Function
• GSM-AMR speech encoding, 4.75 to 12.2 Kbps
• MPEG-4 AAC audio encoding, 16 to 128 Kbps
• External Device Interface
• microSD card slot
• Digital I/O
• External AV Output: NTSC/PAL switch

• Network Protocols
• IPv4
• IPv6
• TCP/IP
• UDP
• ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP / HTTPS
• Samba Client
• PPPoE
• UPnP Port Forwarding
• RTP / RTSP/ RTCP
• IP fi ltering
• 3GPP
• LLTD
• CoS/QoS
• SNMP
• IGMP
• 802.1x
• ONVIF Compliant
• Connectivity
• 1 x 10/100BaseT (Ethernet) with PoE
• Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption
• HTTPS streaming
• Remote client access control

• System Requirements for Web Interface
• Operating System:
• Windows® 7, Windows Vista®, Windows® XP, Windows® 2000
• Browser:
• Internet Explorer 6 or higher, Chrome, Firefox, Safari

• Operating System:
• Windows® 7, Windows Vista®, Windows® XP
• Web Browser:
• Internet Explorer 6 or higher
• Protocol:
• Standard TCP/IP

• Motion detection
• Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
• Multiple event notification
• Tamper detection
• Supports multiple HTTP, SMTP and FTP servers
• Multiple recording methods for easy backup
• Remote Management
• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive or NAS via web browser
• D-ViewCam™ Software Functionst
• Remote management control of up to 32 cameras
• Scheduled motion triggered, or manual recording options
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen

• Power Input
• 12V DC 1.25 A, 50/60 Hz, 802.3af PoE
• Max. Power Consumption
• 5.3watts
• Operating Temperature
• 0° to 40° C (32 to 104° F)
• Storage Temperature
• -20° to 70° C (-4° to 158° F)
• Humidity
• 90% non-condensing
• Weight
• 16.65 (472 grams)
• Certifications
• CE (Class A)C
• E LVD (EN60965-1)
• FCC (Class A)
• ICES-003
• C-Tick
• Dimensions
• Width (Base): 5.12" (130mm)
• Height: 3.85" (97.8mm)
