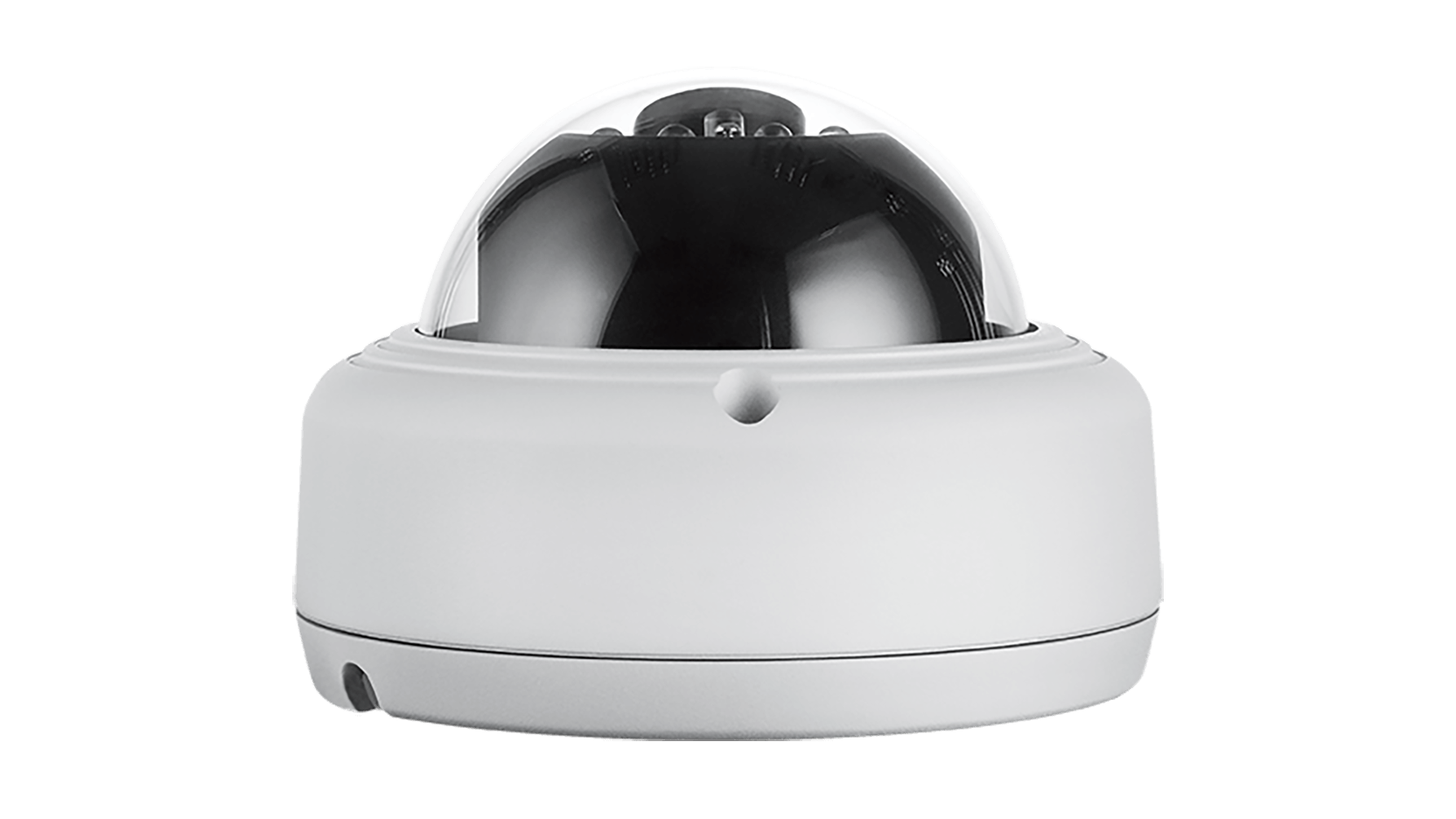

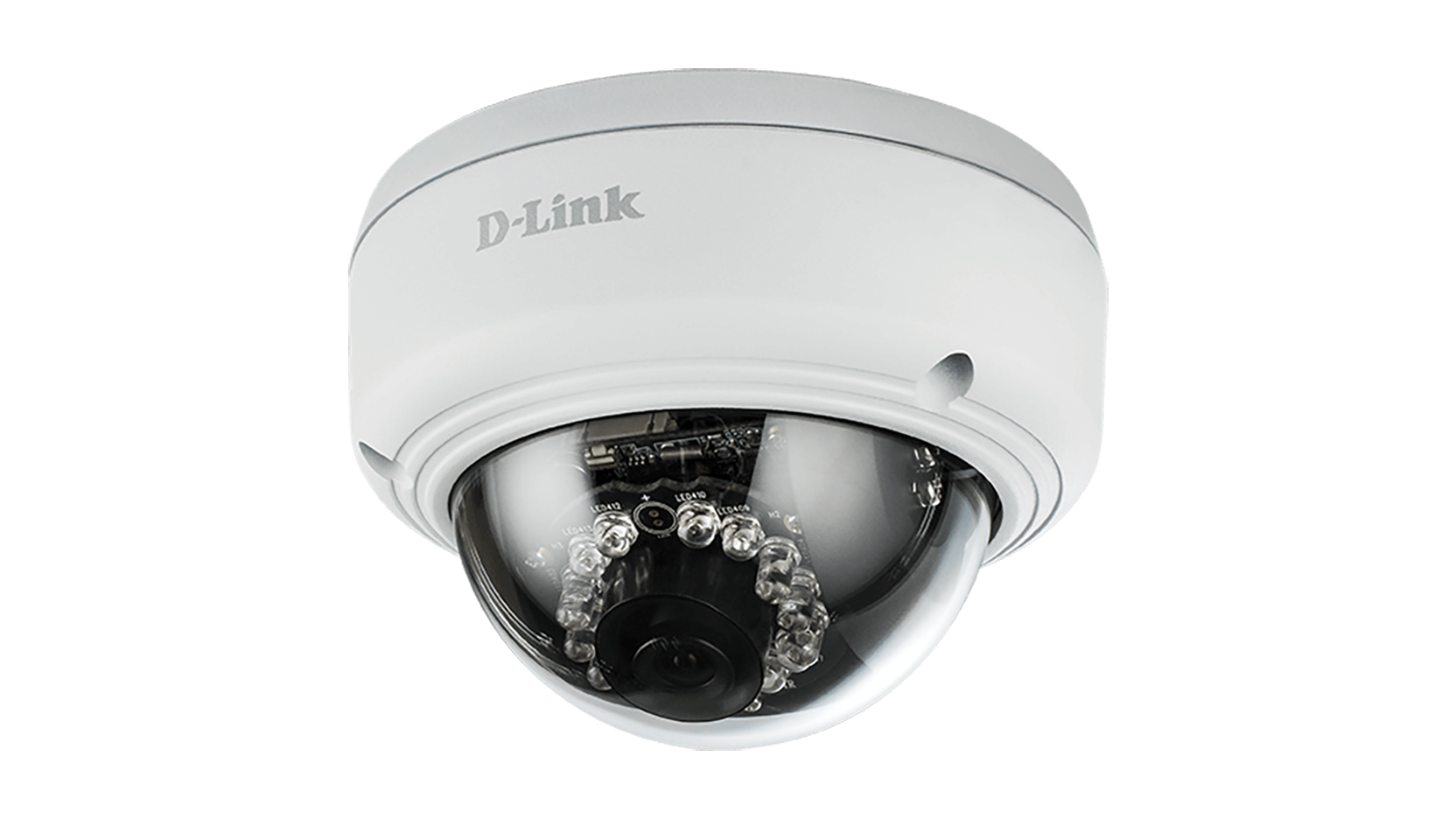

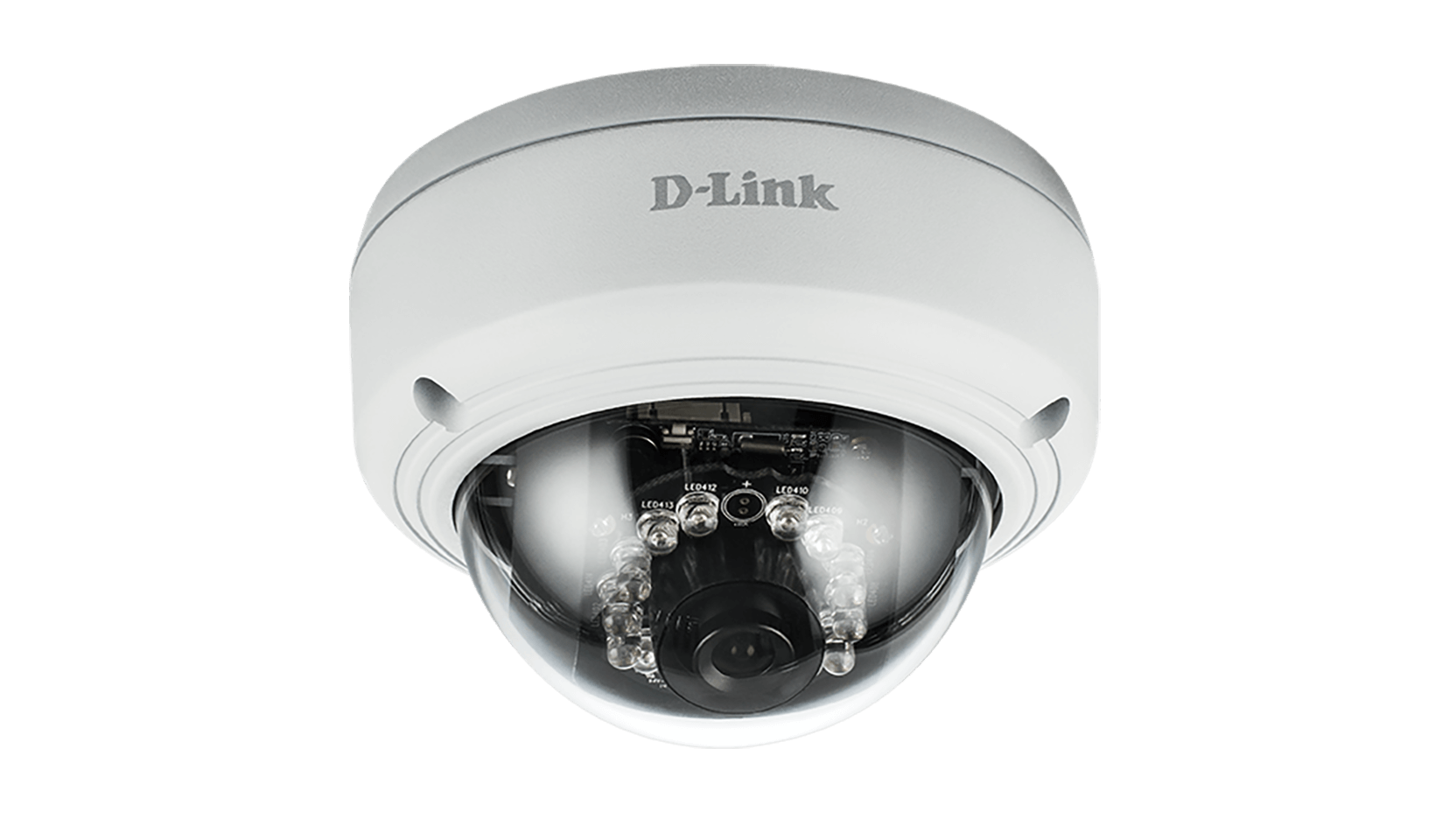

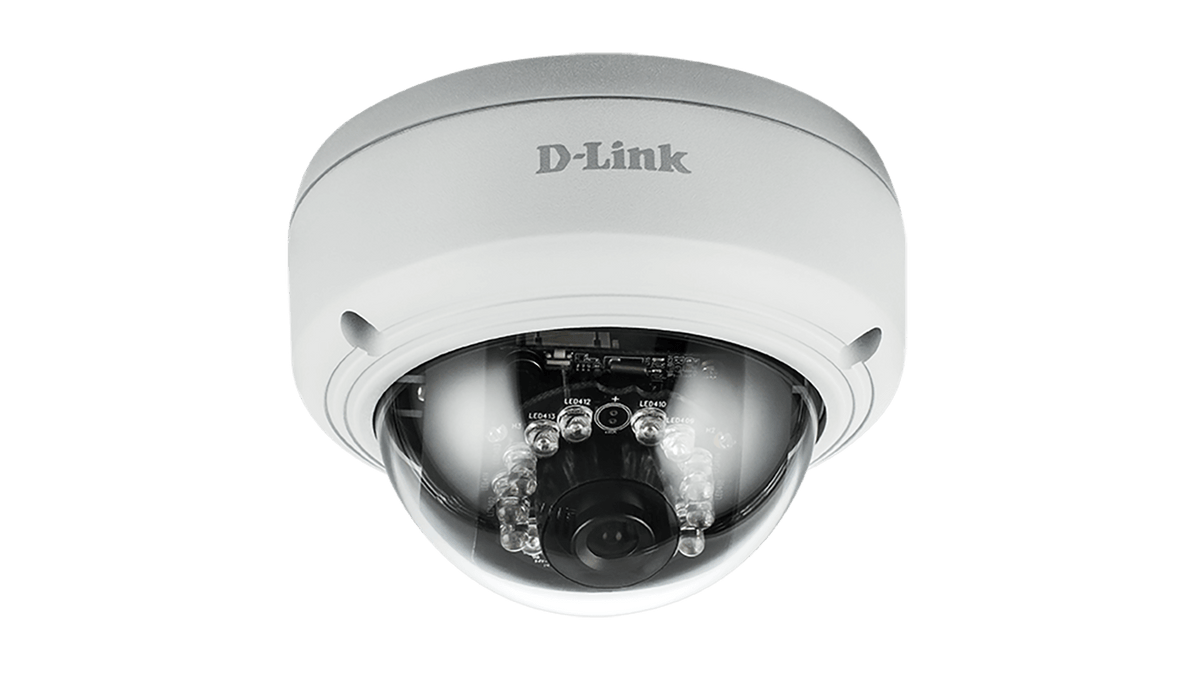

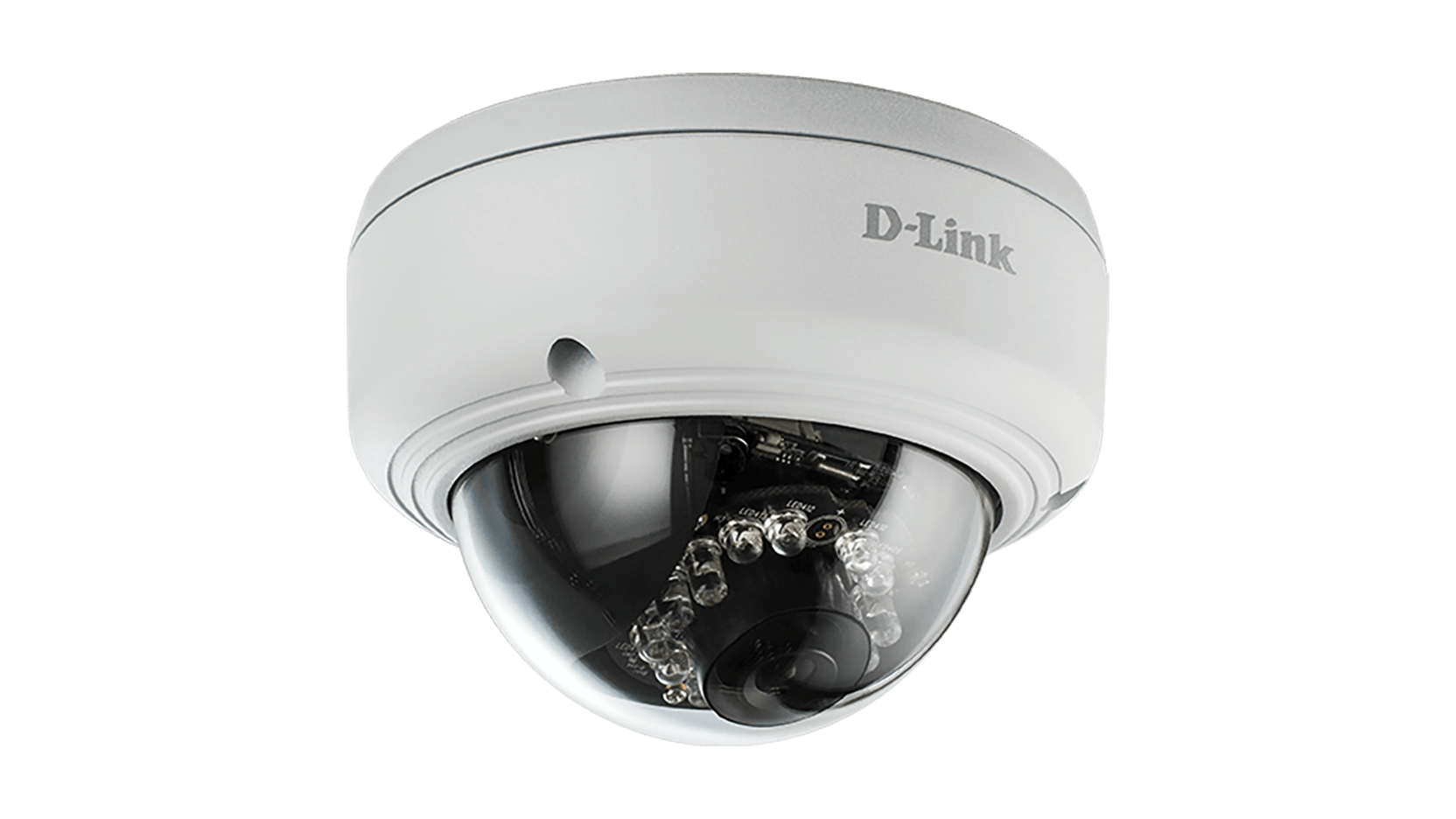

D-Link DCS‑4602EV Full HD Outdoor Vandal Proof PoE Dome Camera

Buy D-Link DCS‑4602EV Full HD Outdoor Vandal Proof PoE Dome Camera online at Rs. 17990 Buy complete range of CCTV Cameras on Vmart.pk, We Offer home delivery all over Pakistan.

D-Link DCS‑4602EV Full HD Outdoor Vandal Proof PoE Dome Camera

The D-Link DCS-4602EV Vigilance Full HD Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/3” megapixel progressive scan CMOS sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. The compact rugged design makes this camera ideal for deployment in a wide variety of surveillance applications.

To maximize bandwidth efficiency and improve image quality, the DCS-4602EV provides real-time video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

The DCS-4602EV’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-4602EV also has built-in IR LED illuminators with a 60 foot range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

The DCS-4602EV Vigilance Full HD Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

The DCS-4602EV has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. The DCS-4602EV can be mounted virtually anywhere with the Outdoor Dome Camera Wall Mount (DCS-37-1) or Outdoor Dome Camera Ceiling Mount (DCS-37-2) – sold separately.

• Maximum Resolution
• 2 Megapixel Full HD (1920 x 1080)
• Environment Capabilities
• Outdoor-Ready
• Light Conditions
• Built-in IR Illuminator
• Day/Night IR Filter
• Wide Dynamic Range (WDR)
• Operating Temperature Range
• -30 °to 50 °C
• Network Connectivity
• 10/100 Ethernet Port
• Power Options
• Power over Ethernet (PoE)
• Pan/Tilt/Zoom Functionality
• Digital PTZ
• Available Accessories
• Mounting options
• Interoperability
• Onvif-Compliant
• Unified D-Link API
• Frame Rate at Maximum Resolution
• 30 FPS

• Camera Hardware Profile
• 1/3” 2 Megapixel Progressive CMOS Sensor
• 60 ft IR Illumination Distance
• Minimum illumination
• 1 Lux Color mode
• 0.55 Lux Black and White mode
• 0 Lux Black and White mode with IR LED on
• Automatic Infrared-Cut Filter module for night viewing
• 10x digital zoom
• 2.8mm F2.0 fixed focal length lens
• Aperture F2.0
• Angle of view
• 96° horizontal
• 54° vertical
• 108° diagonal
• Minimum object distance: 8"
• 2-Axis gimbal adjustment angles (non-motorized)
• Horizontal: 350°
• Vertical: 60°
• Camera Housing
• IP66 compliant weatherproof housing
• IK10 compliant vandal-proof housing
• Image Features
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable exposure time, brightness, saturation, contrast, contrast, sharpness, digital WDR and 3D filter
• Video Compression
• Simultaneous H.264/MJPEG format compression
• H.264 multicast streaming
• JPEG for still images
• Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
• 4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps
• External Device Interface
• 10/100 BASE-TX Ethernet port with PoE (802.3af)
• Optional 12VDC input jack

• Network Protocols
• IPv6
• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS/DSCP
• CoS
• Multicast
• ONVIF compliant
• Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption

• System Requirements for Web Interface
• Browser: Internet Explorer, Firefox, Chrome, Safari
• Event Management
• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
• Remote Management
• Take snapshots/video clips and save to local hard drive or NAS via web browser
• Configuration interface accessible via web browser
• OS Support
• Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android
• D-ViewCam™ System Requirements
• Operating System: Microsoft Windows 8/7/Vista
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP
• D-ViewCam™ Software Functions
• Remote management/control of up to 32 cameras
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options

• Weight
• 1.15 lbs (525 grams) ±5%
• Power Requirement
• PoE (802.3af)
• 12V DC 1.25 A
• Power Consumption
• 5.5 Watts ±5%
• Temperature
• Operating: -22° to 124° F (-30° to 50° C)
• Storage: -4 to 158° F (-20° to 70° C)
• Humidity
• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing
• Certifications
• CE
• CE LVD
• FCC
• C-Tick
