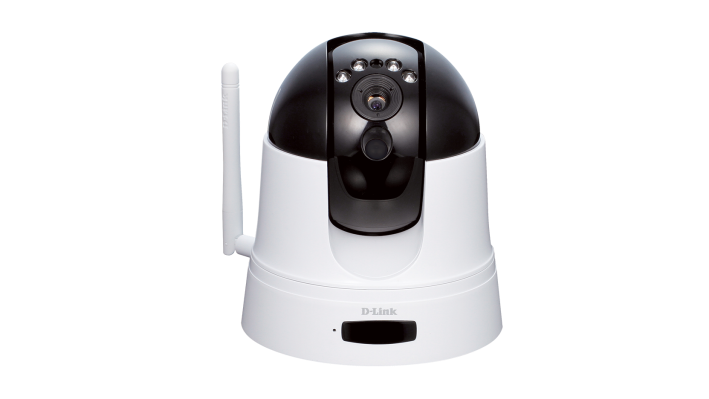

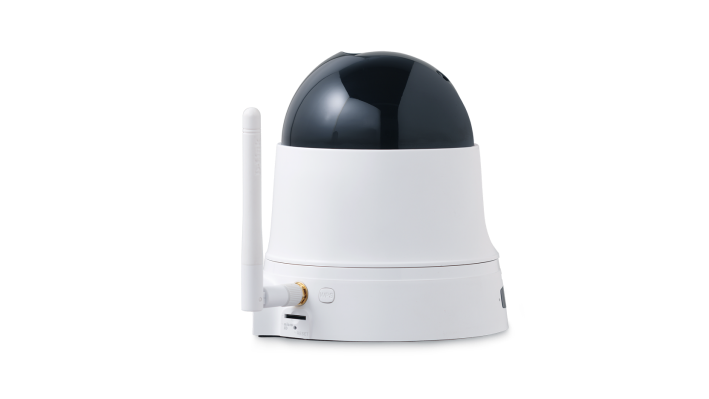

D-Link DCS-5222L Pan/Tilt/Zoom Cloud Camera

The Pan/Tilt/Zoom Cloud Camera (DCS-5222L) is a versatile monitoring solution for your home or small office. Unlike a traditional webcam, the camera transmits and records High Definition (HD) video images and audio even in complete darkness courtesy of the built-in Infrared LEDs. With mydlink™ Cloud Services, you can access and manage your camera remotely via the mydlink™ apps, available for iPhone, iPad and Android devices.

Specifications

Sensor and lens

• 1/4” Megapixel Progressive CMOS sensor
• Fixed length 4.57 mm, F1.9 lens

Night vision

• 4x IR LEDs
• 5 m. IR illumination distance
• Built-in Infrared-Cut Removable (ICR) filter

Video features

• Image size, quality, frame rate, and bit rate
• Shutter speed, brightness, saturation, contrast, mirror, flip
• Time stamp and text overlays
• Motion detection windows
• Three configurable privacy mask zones

Video Compression

• JPEG for still images
• H.264/MPEG4/MJPEG multi-streaming
• H.264/MPEG4 multicast streaming

Image Resolution

• HD 720p resolution
• Max. 1280x720 @ 30 fps

Pan/Tilt/Zoom

• Pan Range: -170° to 170°
• Tilt Range: -25° to 90°
• Digital Zoom: 4x
• Pre-set setting: 10 points

Audio Features

• Built-in microphone
• Speaker output
• ADPCM/PCM compression

Network Protocol Support

• IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP Server, PPPoE, RTP, RTSP, RTCP, 3GPP

Remote Access and Management

• Configuration accessible via web browser
• mydlink™ Cloud Services

Security

• Administrator and user group protected
• Password authentication
• HTTP and RTSP digest encryption

Recording options

• Continuously
• Weekly schedule
• On motion detection

Network Interfaces

• IEEE 802.11n
• Fast Ethernet port

Input/Output

• Passive Infra-Red (PIR) sensor
• DI x1, DO x1
• microSD card slot

System Requirements

• Operating System: Microsoft Windows 7/Vista/XP SP3
• Browser: Internet Explorer 6 or higher, Firefox 3.5, Safari 4.0

Supported Mobile Devices

• mydlink™ app requires a mobile device running iOS or Android™

Power

• 12 V/1.25 A, 50/60 Hz
• 10.5 Watts (maximum)

Dimensions (L x W x H)

• 114 x 114 x 125 mm

Weight

• 540 grams

Temperature

• Operation: 0 to 40 ºC
• Storage: -20 to 70 ºC

Humidity

• 20% to 80% non-condensing

Certifications

• FCC Class B
• CE
• CE LV D
• C-Tick

Warranty

2 year local card warranty
