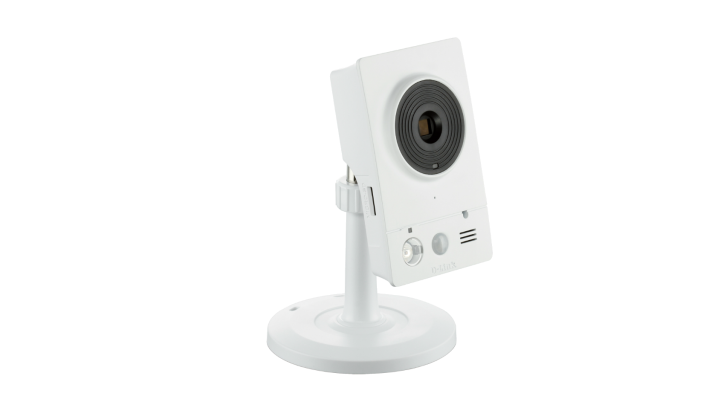

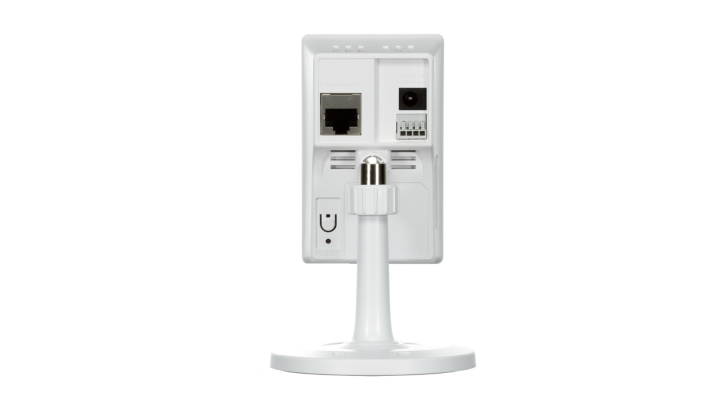

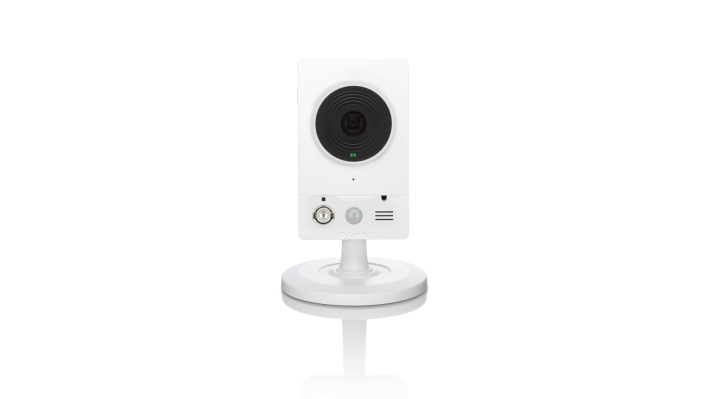

D-Link DCS-2132L HD Wireless N Cube Network Camera

Keep an Eye on What Matters Most

Keep an eye on what you value most with the clarity and mobile control of D-Link’s DCS-2132L surveillance solution. Download the exclusive mydlink app and monitor your home or business – anywhere, anytime – on your iPhone, iPad or Android device. Experience the clarity of 720p HD quality and never miss a detail. And with integrated motion-sensing, automated email alerts, and night-vision technology, the DCS-2132L remains vigilant 24 hours a day, whether you’re there or not.  It also comes with a built-in microSD card slot so you can record video footage directly to your camera.  And with easy DIY-installation, you’ll have a premium home or business surveillance solution up and running in no time. And with its compact design, placement is flexible and easy.

Anywhere Access with mydlink™

With the mydlink Lite app for iPhone and Android, you can quickly and easily see your camera feed from anywhere with a Wi-Fi, 3G or 4G connection. No more guessing what's going on at your house while you're away. Thanks to this app, you can monitor on-the-go... even if you don't have access to a computer.

• Remotely monitor your network cameras from anywhere
• Remote Pan & Tilt live video*
• Select video quality
• No Monthly service fees
• 2-way audio (supported on select models with mic and speaker)
• Pinch-zoom

Learn more about mydlink Lite

* supported on select models

HD Video Quality

The DCS-2132L delivers the confidence of 720P HD video clarity, ensuring rich detail and crisp image quality for your surveillance recordings. And with integrated night-vision and PIR motion-sensing technology, the DCS-2132L remains vigilant 24 hours a day, whether you're there or not.

Instant E-mail Alerts and Auto-Recording

Built with motion sensing technology, the DCS-2132L is capable of triggering instant e-mail alerts and auto-recording based on changes in your camera’s environment. The intuitive mydlink interface allows you to quickly customize your camera’s settings, so you can have full control of how and when you want to be alerted. Easily setup watch-zones to be instantly notified when your camera detects strange activity.

Night Vision Technology

The DCS-2132L provides around-the-clock surveillance with night vision capability, allowing you to see up to 15 feet in complete darkness.  Whether you're using your camera for home surveillance or to keep an eye on your loved ones, the DCS-2132L gives you the peace of mind you deserve.

• 720p HD Video Quality - Rich detail and crisp image quality for your surveillance recordings
• Enhanced Motion Detection - Enhanced email alerting based on PIR motion-sensing technology
• Local Recording - Record directly to your Cloud camera with the built-in microSD card slot
• Night Vision - View up to 15 feet in complete darkness
• Remote Viewing - View on iPhone®, iPad® or Android® with mydlink™ app or mydlink.com
• Wireless/Ethernet - Secure connection for flexible placement
• Zero Configuration - Automatic and intelligent syncs with your home's route

Specifications

Hardware Profile

• 1/4” Megapixel progressive CMOS sensor
• 5 meter IR illumination distance
• Minimum illumination: 0 lux with IR LED on
• Built-in Infrared-Cut Removable (ICR) Filter module
• Built-in PIR sensor (5 meter)
• 10x digital zoom
• Focal length: 3.45 mm
• Aperture: F2.0

Field of View

• (H)57.8°, (V) 37.8°, (D) 66°

Image Features

• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation, contrast, and sharpness

Video Compression

• H.264/MPEG-4/MJPEG simultaneous format compression
• H.264/MPEG-4 multicast streaming
• JPEG for still images

Video Resolution

• 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording
• 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording

Audio Support

• G.726
• G.711

External Device Interface

• 10/100 BASE-TX Fast Ethernet port
• 802.11n wireless
• DI/DO port
• MicroSD/SDHC card slot

Network Protocols

• IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS
• CoS
• Multicast
• IGMP
• ONVIF compliant

Security

• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption

System Requirements for Web Interface

• Browser: Internet Explorer, Mozilla Firefox, or Google Chrome

Event Management

• Motion detection
• Event notification and upload snapshots/video clips via email or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notification
• Multiple recording methods for easy backup

Remote Management

• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support

• Windows 7®/Vista®/XP® system, Pocket PC, or mobile phone with 3GPP playback support
• mydlink™ mobile apps for iOS and Android mobile devices

D-ViewCam™ System Requirements

• Operating System: Microsoft Windows 7/Vista/XP
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions in web interface
• Scheduled motion triggered or manual recording options

External Power Adapter

• Input: 100 to 240V AC, 50/60Hz
• Output: 5V DC, 1.2A

Max. Power Consumption

• 3.65 watts

Operating Temperature

• 32 to 104° F (0° to 40° C)

Storage Temperature

• -4° to 158° F (-20° to 70° C)

Operating Humidity

• 20% to 80% non-condensing

Storage Humidity

• 5% to 95% non-condensing

Certifications

• CE
• CE LVD
• FCC
• C-Tick

Dimensions

• 2.28” x 5.04” x 3.5” (58mm x 127.9mm x 89mm)

Weight

• 0.26lb (116g) ± 5%

Warranty

• 1-Year Limited
