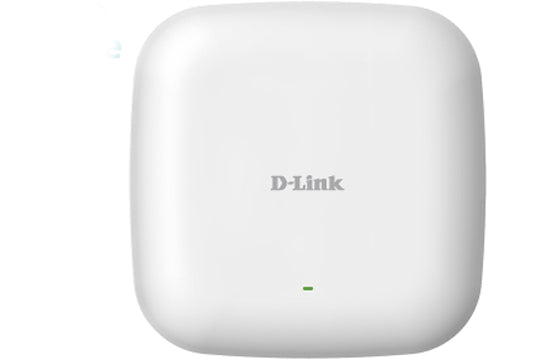

D-Link DAP-2660 Access Point

Features

Performance without Compromise

Utilising industry leading Wireless AC Chipset, the DAP-2660 delivers 4 times the speed of Wireless N by supporting simultaneous dual-band performance

Broadcast on 16 SSID Simultaneously

Supports up to 16 SSIDs, 8 per Band, including Station Isolation

Attractive Design

Featuring a clean modern design, the DAP-2660 can be mounted easily onto any wall or ceiling (mounting clips included). Designed with a standard PoE power requirements, the DAP-2660 can easily be deployed and configured in any network.

Wireless Range

The DAP-2660 has a wireless range of up to 100m and enhanced networking features like bandsteering to ensure wireless signal continuity.

Simultaneous Dual-Band Wireless

Supports up to 1200Mbps. Up to 900Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band

Free Wireless AP Controller software

D-Link’s free Central Wifi Manager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

Manage up to 1000 APs

Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud.

Scalable, flexible, centralised AP management

Manage up to 1000 Access Points from a central location, regardless of geography.

Specificaitons

High-performance Connectivity

IEEE 802.11ac wireless
Up to 1200 Mbps
Gigabit LAN port

Made for Business-class Environments

Simultaneous dual-band connectivity for increased network capacity
Band steering for efficient traffic management
Ideal for indoor deployment
Traffic control/QoS
Internal RADIUS server
Web redirection

Trusted Security Features

WPA/WPA2 - Enterprise/Personal
WPA2 - PSK/AES over WDS
MAC address filtering
Network Access Protection (NAP)
ARP spoofing prevention
WLAN partition

Convenient Installation

Supports 802.3af Power over Ethernet

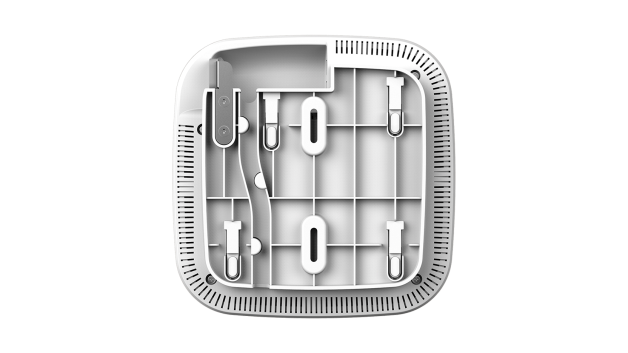

Wall and ceiling mounting brackets included

Technical Specifications

General

Device Interfaces

802.11a/b/g/n/ac wireless
1 Gigabit LAN port (supports PoE)

LEDs

Power

Standards

IEEE 802.11a/b/g/n/ac
IEEE 802.3u/ab/af

Wireless Frequency Range

2.4 GHz band: 2.4 GHz to 2.4835 GHz
5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz3

Antennas

Two internal 3 dBi for 2.4 GHz
Two internal 4 dBi for 5 GHz

Maximum Output Power1

26 dbm for 2.4GHz
26 dbm for 5GHz

Functionality

Security

WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server

Network Management

Telnet
Secure Telnet (SSH)
HTTP
Secure HTTP (HTTPS)
Traffic control
SNMP
AP Array

Physical

Dimensions

170 x 170 x 28 mm (6.69 x 6.69 x 1.1 inches)

Weight

316 grams with antennas

Operating Voltage

12 V DC +/- 10%, or 802.3af PoE

Maximum Power Consumption

11 Watts

Temperature

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing

Certifications

FCC
IC
CE
UL
Wi-Fi Certified

Warranty

2 year local card warranty
