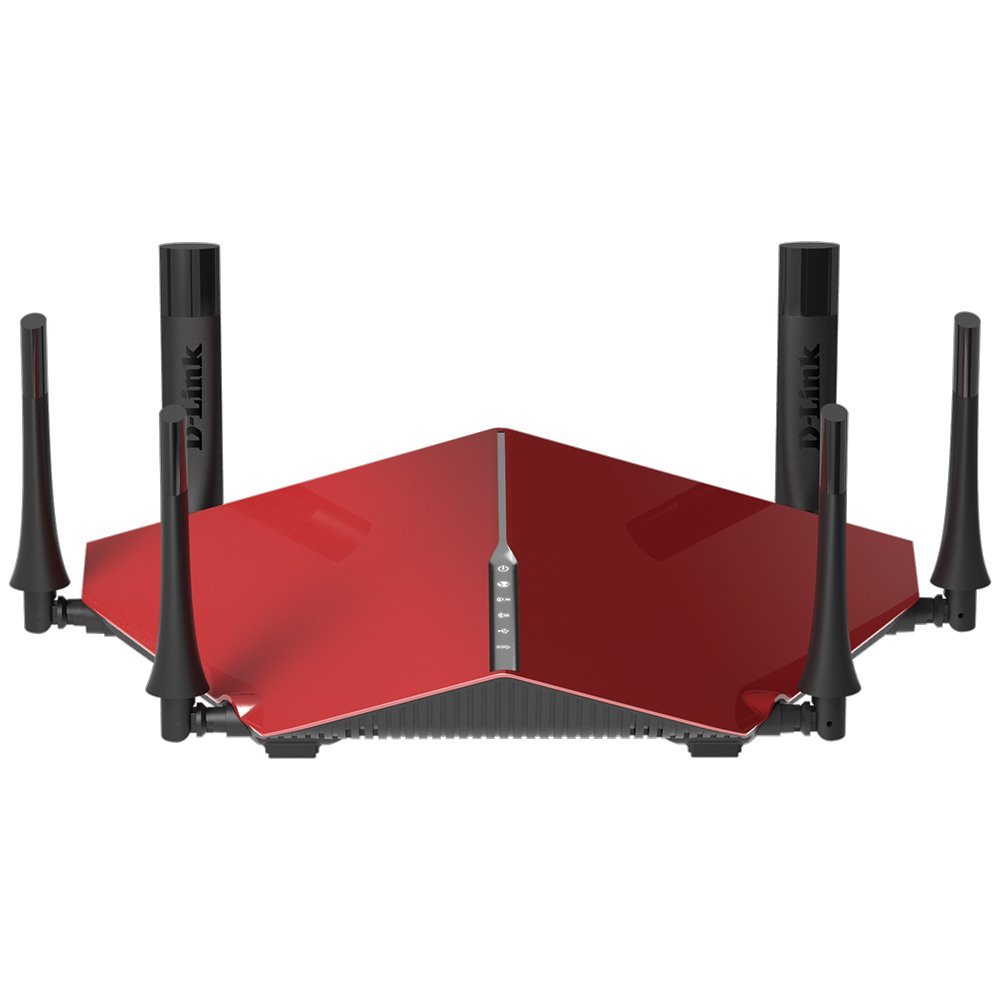

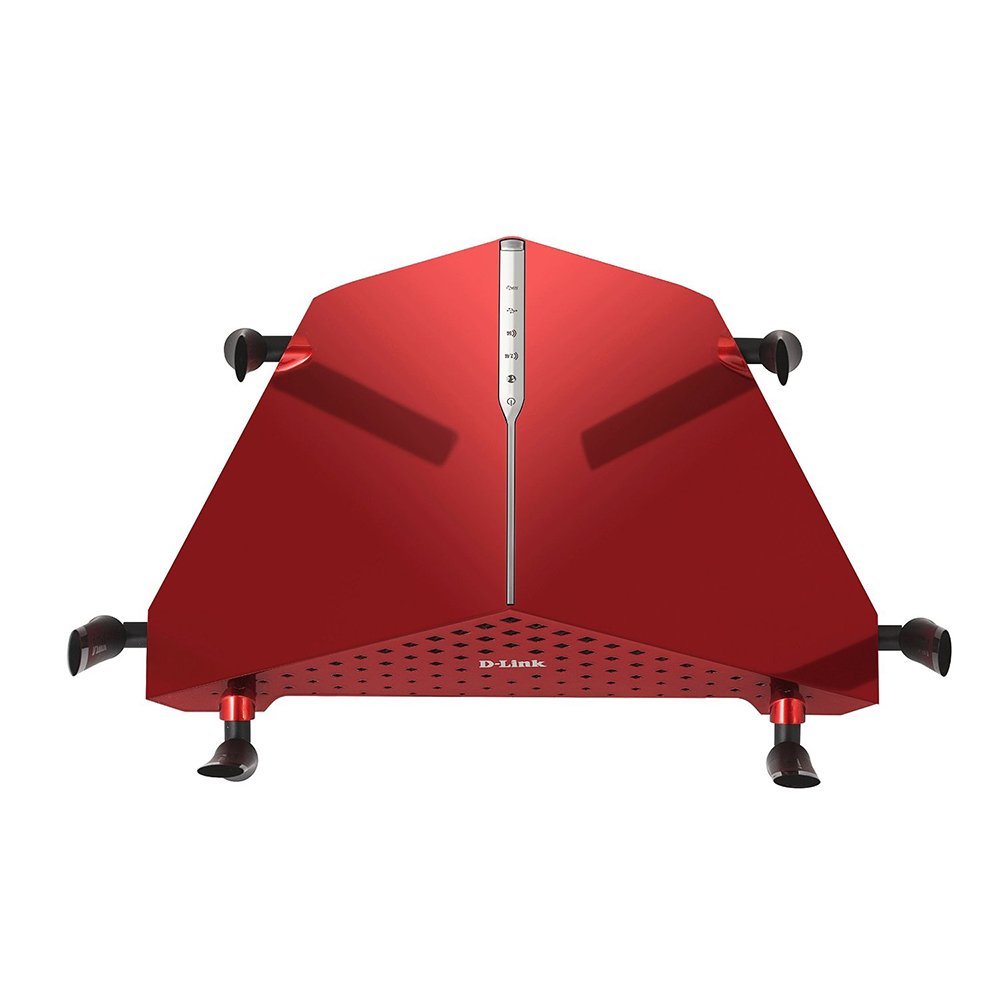

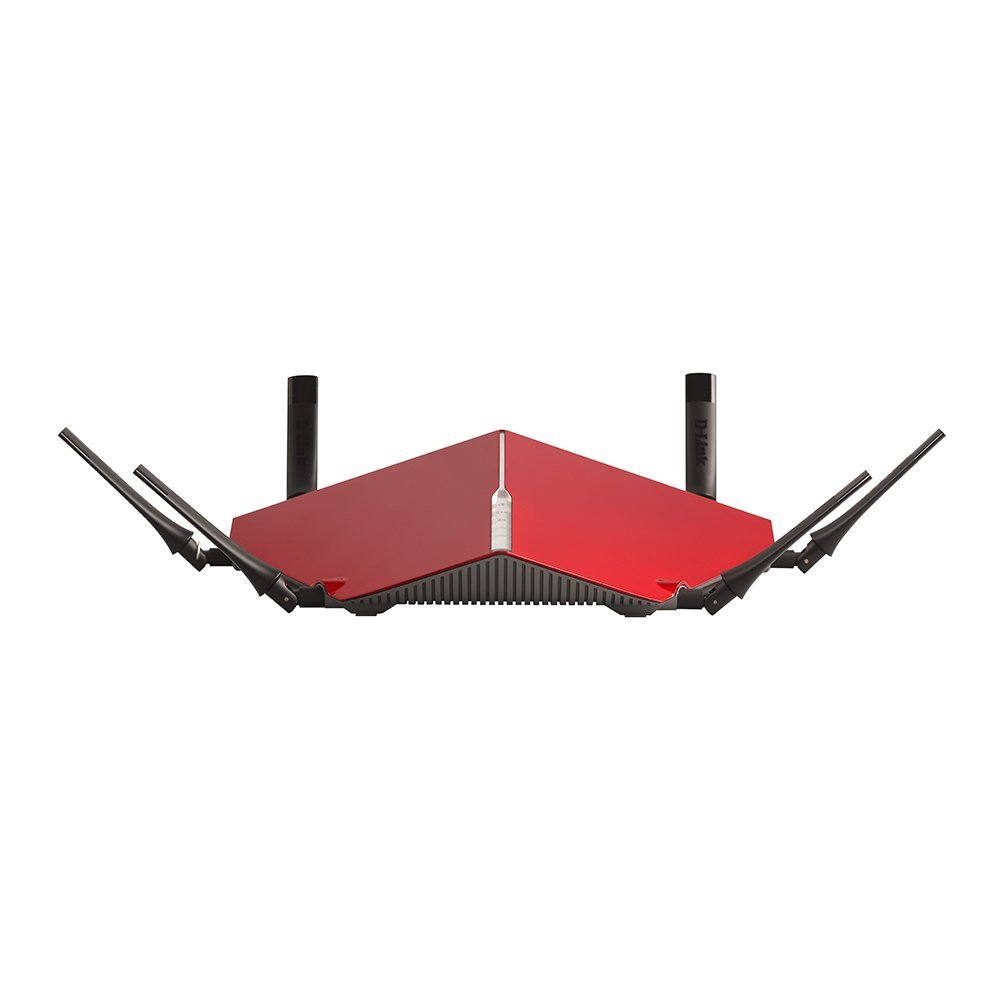

D-Link AC3200 Ultra Wi-Fi Router

Ultra-Fast Speed for HD Streaming & Gaming

Smartphones, laptops, tablets, phones, Smart TVs, game consoles and more – all being connected at the same time. That’s why we created the new AC3200 Ultra Wi-Fi Router. With Tri-Band Technology and speeds up to 3.2Gbps, it delivers the necessary ultra-performance to power even the most demanding connected homes, making it the best wireless home router for gaming.

Why You Want It

Ultimate Wi-Fi Performance
AC3200 speed for a ridiculously fast home network.

Advanced AC SmartBeam
Tracks your connected devices for enhanced Wi-Fi speed and range.

Tri-Band Wi-Fi
Two 5GHz and one 2.4GHz for maximum possible speed for each device.

Smarter Bandwidth
Distributes traffic using band steering technology for optimal Wi-Fi performance.

Remote Access & Management
Manage your network from your smartphone or tablet.

1GHz Dual Core Processor
Faster network speed for a more powerful router.

Tri Band Wi-Fi

The AC3200 ULTRA Wi-Fi Router is like three wireless routers in one. It has a 2.4GHz wireless band offering speeds up to 600Mbps and two separate 5GHz wireless bands delivering speeds up to 1,300Mbps that all operate at the same time. That means more lag free online gaming, 4k media streaming,and Facetime on more devices throughout your home.

Smart Connect

Not all Wi-Fi bands are the same, but you don’t need to worry about that. With Smart Connect Technology, the ULTRA Wi-Fi Router chooses from the three Wi-Fi bands and automatically connects each device on your network to the best, clearest band available for the best connection every time.

Smart Beam Forming

Improves coverage by directing bandwidth to your devices as you move around your home. You can stream HD video, surf the web, skype your friends and play online games from wherever you are so you’ll always get the best experience.

Controlling Your Network Just Got Easier

Controlling your network by enabling parental controls, blocking unwanted devices, monitoring internet activity and creating Wi-Fi guest networks is easier than ever with our new interface.

Smarter Bandwidth

Intelligent Traffic Prioritizations selects the fastest Wi-Fi for every device and prevents older devices from affecting optimal performance.

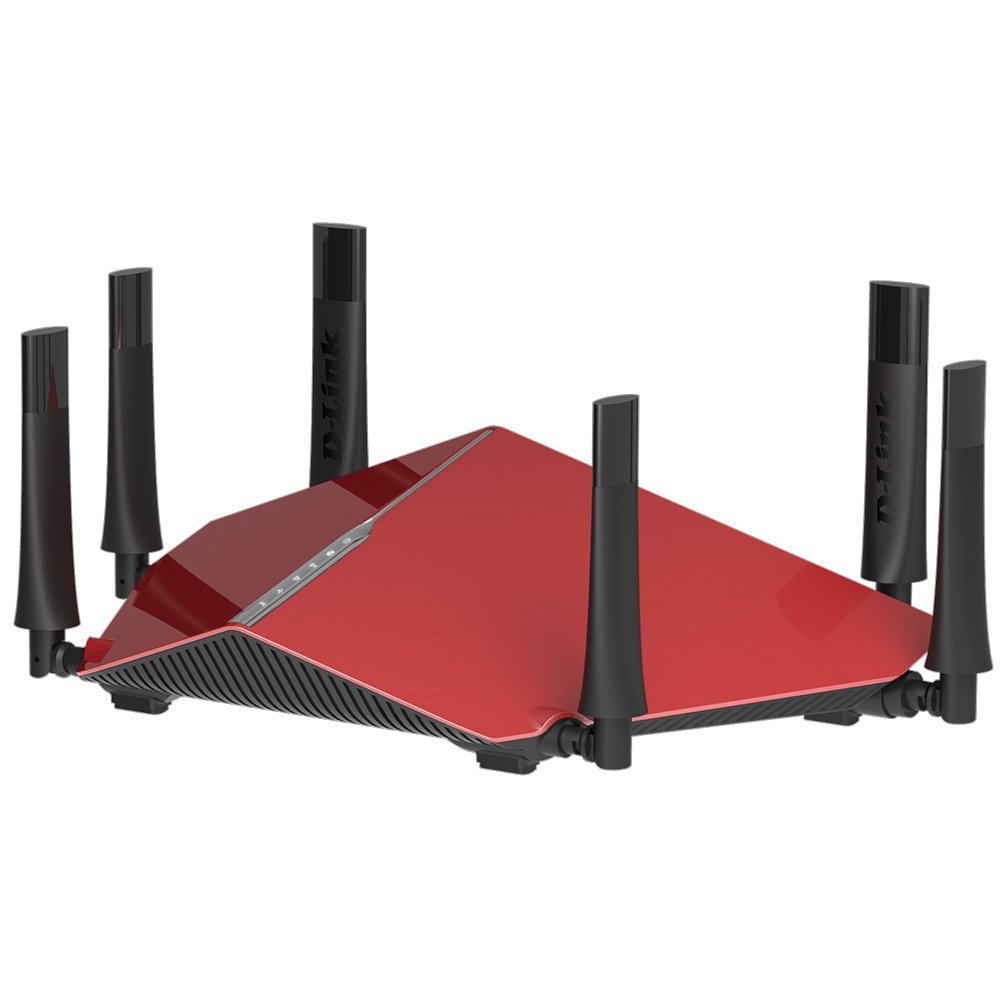

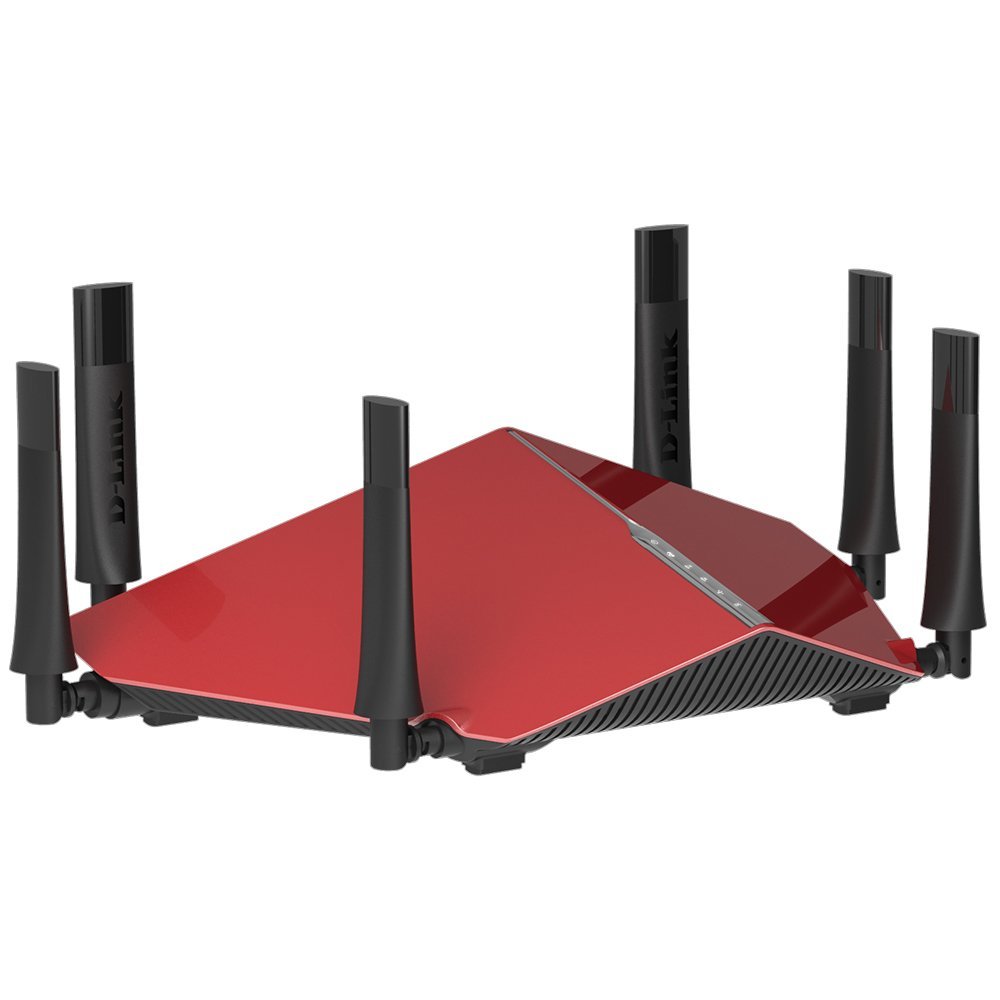

More Antennas for More Coverage

Six high performance external antennas keep all of your mobile devices connected with stronger Wi-Fi coverage and superior performance.

More Processing Power

A 1 GHZ Dual Core Processor gives you all the processing power you need to support more devices and apps in your home. Experience the ultimate in lag free gaming and 4K media streaming.

Smart Connections

Lots of connection options at your fingertips. Enjoy more of the stuff you love.

Media Sharing

Use our free mydlink SharePort app to stream and share pictures, videos, and more to your mobile devices.

DD-WRT Open Source

The D-Link AC3200 Wi-Fi Router (DIR-890L/R) provides a responsive graphical user interface for an exceptional experience right out of the box. Advanced users have the option to utilize Open Source firmware to modify their router further. The DIR-890L/R router supports the DD-WRT OpenSource, Linux-based operating system offering additional customization and features.

Ultimate Gaming Experience

Give your new NVIDIA SHIELD - The World's First 4K Android TV Console - the speed and power it craves. The AC3200 is an NVIDIA GameStream-Ready product. Your ultimate gaming experience awaits.

Technical Specifications

General

Device Interfaces

802.11a/g/n/ac wireless LAN
Four 10/100/1000 Gigabit LAN ports
10/100/1000 Gigabit WAN por
Two USB ports (one USB 3.0, one USB 2.0)

Standards

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11a
IEEE 802.3
IEEE 802.3u

Minimum System Requirements

Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7
Ethernet Network Interface
Cable, DSL or Fiber Optics
Internet access - for optimal performance, pair the DIR-890L with an AC adapter

Functionality

Advanced Features

SmartConnect
Guest zone
mydlink SharePort™ web access
Multi-language web setup wizard
Green Ethernet
DLNA media server support
Advanced AC SmartBeam
Dual active firewall
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
VPN Passthrough (PPTP/L2TP/IPsec)
Advanced QoS
QuickVPN - L2TP over IPsec

mydlink Lite Mobile App Features

Remote Management
View current upload/download bandwidth
View currently connected clients
View web browsing history per client
Block/unblock client network access
Manage wireless network details
Accessible through a web browser or iOS or Android
mobile app

Mobile App Support

mydlink Lite
mydlink SharePort
QRS Mobile v1.5

Wireless Security

WPA & WPA2 (Wi-Fi Protected Access)
Wi-Fi Protected Setup (WPS) PIN/PBC

Dimensions

15.23 x 9.73 x 4.7 inches

Power

Input: 100 to 240 V AC, 50/60 Hz
Output: 12V DC, 5A

Temperature

Operating: 32 to 104 F
Storage: -4 to 149 F

Humidity

Operating: 0% to 90% non-condensing
Storage: 5% to 95% non-condensing
