Cisco WAP131-E-K9-G5 Wireless-N Dual Radio Access Point with PoE

Highlights

● Provides cost-effective 802.11n connectivity for 2.4-GHz and 5-GHz clients

● Single Power over Ethernet (PoE) Gigabit Ethernet for connecting to PoE switch

● PD port allows access point to be powered by backbone switch

● Works right out of the box with easy installation and simple web-based configuration and wizard

Product Overview

In today’s dynamic business environment, employees are becoming more mobile and collaborative than ever. To stay productive, they need dependable, business-class access to network applications throughout the office. The Cisco® WAP131 Wireless-N Dual Radio Access Point provides a simple, cost-effective way to extend secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office. This flexible solution lets you connect dozens of employees, and can scale to accommodate additional users and changing business needs.

The Cisco WAP131 Wireless-N Dual Radio Access Point uses concurrent dual-band radios for improved coverage and user capacity. The Gigabit Ethernet port allows the AP to be powered by PoE switch to help reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice‑over-IP (VoIP) and video applications.

The Cisco WAP131 Wireless-N Dual Radio Access Point is easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive desktop design with an integrated stand allows you to place the AP on your desk vertically or horizontally.

To enhance reliability and safeguard sensitive business information, the Cisco WAP131 Wireless-N Dual Radio Access Point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1 X RADIUS authentications help keep unauthorized users out.

Figure 1 shows the front panel of the Cisco WAP131 Wireless-N Dual Radio Access Point with PoE, and Figure 2 shows the back panel.

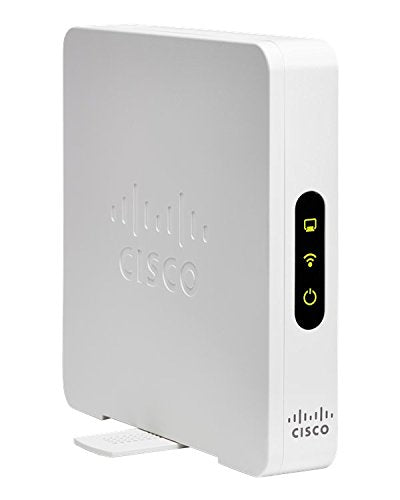

Figure 1. Front Panel of Cisco WAP131 Wireless-N Dual Radio Access Point with PoE

Figure 2. Back Panel of Cisco WAP131 Wireless-N Dual Radio Access Point with PoE

Specifications

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Cabling type

Category 5e or better

Antennas

Internal antennas optimized for desktop installation with vertical orientation

LED indicators

Power, WLAN, LAN

Operating system

Linux

Physical Interfaces

Ports

10/100/1000 Ethernet, with support for 802.3af/at PoE, Power Port for AC adapter

Power supply

External 12V 1.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af/at PoE

Buttons

Reset button, Power (on/off), Push button

Lock slot

Slot for Kensington lock

LED

Power, Wireless, Ethernet

Physical Specifications

Physical dimensions (W x D x H)

6.693 x 6.693x 1.413 in. (170 x 170 x 35.9 mm)

Weight

0.89 lb (0.40kg)

Network Capabilities

VLAN support

Yes

Number of VLANs

1 management VLAN plus 8 VLANs for SSIDs

802.1X supplicant

Yes

SSID to VLAN mapping

Yes

Auto channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

Yes

Layer 2

802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN

Security

WPA/WPA2/WEP

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

SSID broadcast

Yes

Rogue access point detection

No

Mounting and Physical Security

Multiple mounting options

Desktop only

Physical security lock

Kensington lock slot

Quality of Service

QoS

Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS

Performance

Wireless throughput

Up to 300-Mbps data rate (real-world throughput will vary)

Recommended user support

Up to 32 connective users, 16 active users per radio

Configuration

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

Management

Management protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

Remote management

Yes

Event logging

Local, remote syslog, email alerts

Network diagnostics

Logging and packet capture

Web firmware upgrade

Firmware upgradable through web browser, imported/exported configuration file

Dynamic Host Configuration Protocol (DHCP)

DHCP client

IPv6 host

Yes

HTTP redirect

No

Wireless

Frequency

Dual concurrent radios (2.4 and 5 GHz)

Radio and modulation type

Dual radio, orthogonal frequency division multiplexing (OFDM)

WLAN

802.11n

2x2 multiple-input multiple-output (MIMO) with 2 spatial streams

20, and 40 MHz for 802.11n

PHY data rate up to 600 Mbps

Data rates supported

802.11a/b/g:
● 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
● 802.11n: 6.5 to 300 Mbps
◦ 20-MHz bandwidth: MCS 0-15 for supported data rates
◦ 40-MHz bandwidth: MCS 0-15 for supported data rates

Frequency Band and 20-MHz Operating Channels

A Regulatory Domain:
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.240 GHz; 4 channels
● 5.745 to 5.825 GHz; 5 channels

E Regulatory Domain:
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.240 GHz; 4 channels

C Regulatory Domain:
● 2.412 to 2.462 GHz; 11 channels
● 5.745 to 5.805 GHz; 4 channels

Maximum Number of Nonoverlapping Channels

2.4 GHz
● 802.11b/g
◦ 20 MHz: 3
● 802.11n
◦ 20 MHz: 3

5 GHz
● 802.11a
◦ 20 MHz: 9
● 802.11n
◦ 20 MHz: 9
◦ 40 MHz: 4

Wireless isolation

Wireless isolation between clients

External antennas

None

Internal antennas

Internal fixed PIFA antennas

Antenna gain in dBi

Maximum antenna gain of 3.4 dBi on 2.4 GHz

Maximum antenna gain of 4.5 dBi on 5 GHz

Wireless distribution system (WDS)

Yes

802.11i

Yes

Multiple SSIDs

8

Wireless VLAN map

Yes

WLAN security

Yes

Wi-Fi Multimedia (WMM)

Yes, with unscheduled automatic power save

Operating Modes

Access point

Access Point mode, WDS Bridging, Workgroup Bridge mode

Environmental

Power options

IEEE 802.3af/at Ethernet switch

Cisco Power Injector - SB-PWR-INJ2-xx

AC Adapter - included 12v1.5A

PoE Peak power: 7.42W

Compliance

Safety:
● UL 60950-1
● CAN/CSA-C22.2 No. 60950-1
● IEC 60950-1
● EN 60950-1

Radio approvals:
● FCC Part 15.247, 15.407
● RSS-210 (Canada)
● EN 300.328, EN 301.893 (Europe)
● AS/NZS 4268.2003 (Australia and New Zealand)

EMI and susceptibility (Class B):
● FCC Part 15.107 and 15.109
● ICES-003 (Canada)
● EN 301.489-1 and -17 (Europe)

Operating temperature

0° to 40°C (32° to 104°F)

Storage temperature

–20° to 70°C (–4° to 158°F)

Operating humidity

10% to 85% noncondensing

Storage humidity

5% to 90% noncondensing

System memory

128-MB RAM

128-MB Flash

Minimum Requirements

● Switch or router with PoE support, PoE injector, or AC Power Adapter
● Web-based configuration: Java-enabled web browser
