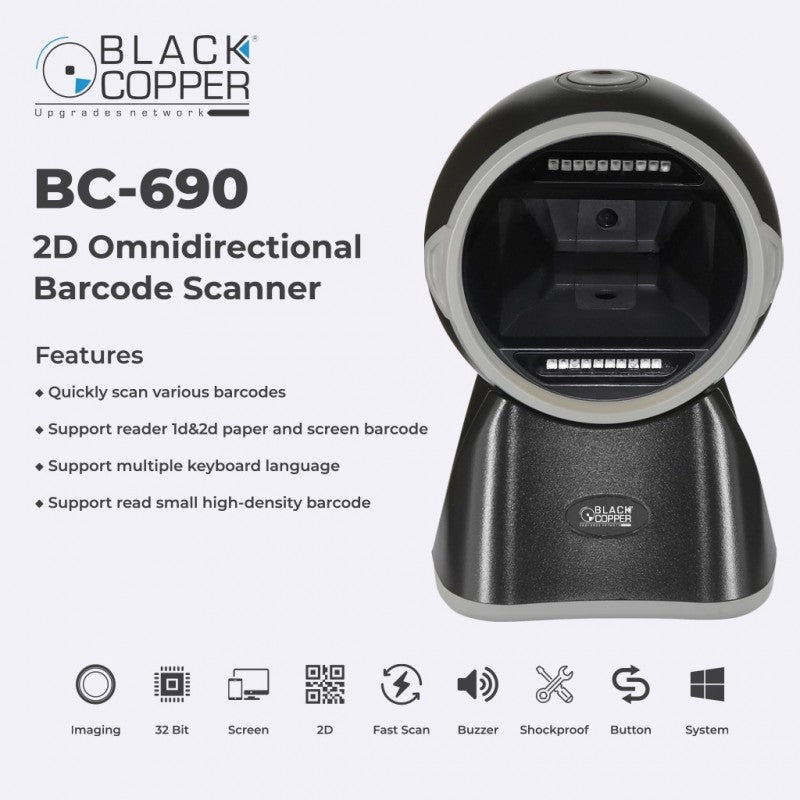

Black Copper BC-690 1D & 2D Image Omni-Directional Desktop Barcode Scanner

Buy Black Copper BC-690 1D & 2D Image Omni-Directional Desktop Barcode Scanner online at Rs. 12990. Buy complete range of Barcode Scanner on Vmart.pk. We Offer home delivery all over Pakistan.

Features:

Laser-free Aiming
Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.

Interface
USB connectivity.

Easily Scans Barcodes on Screens
Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.

Durable
The BC-690 can withstand up to drop to concrete from distances as high as 1.2m (4 ft).

Specifications

PHYSICAL CHARACTERISTICS

Dimensions (L*W*H)
100mm*95mm*158mm(3.94in*3.86in*5.9in)
Weight
265g
Configurations
Decoding

ENVIRONMENTAL

Temp.
0° to 50°C (operation)
-10° to 60°C (storage)
Humidity
5 - 85% (operation)
5 - 85% (storage)
Ambient light.
Fluorescent light 4000lx max, direct sun light 80,000lx max ,white light 4000lx max
Shock drop test.
1.5m drop onto concrete surface

ELECTRICAL

Interface
RS-232/USB HID KEYBOARD/USB VCP/
Voltage requirement.
5VDC±10%
Current consumption.
Max:200mA

OPTICAL CHARACTERISTICS

Photo sensor.
CMOS array sensor
Sensor resolution.
1280X800 pixels
Aim light source.
Red LED

SCANNING PERFORMANCE

Min resolution.
1D: 0.076mil/3mil (PCS 0.9)
2D: 0.152mil/7mil (PCS 0.9)
Min. PCS value.
〉30%UPC/EAN 13（13mil）
Field of View.
58°(H),45°(V)

Supported Barcode Symbologies.


1D: Codebar, Code128, Code39, Code39, Code93, Code11, EAN13, EAN8, GS1-Databar, GS1-128 (EAN-128), Interleaved 2 of 5, Matrix 2 of 5, Industry 2 of 5, UPC-A, UPC-E, ISBN, ISSN.

2D: PDF417, Data Matrix, QR Code, Micro PDF417, Micro QR Code, Aztec Code.
