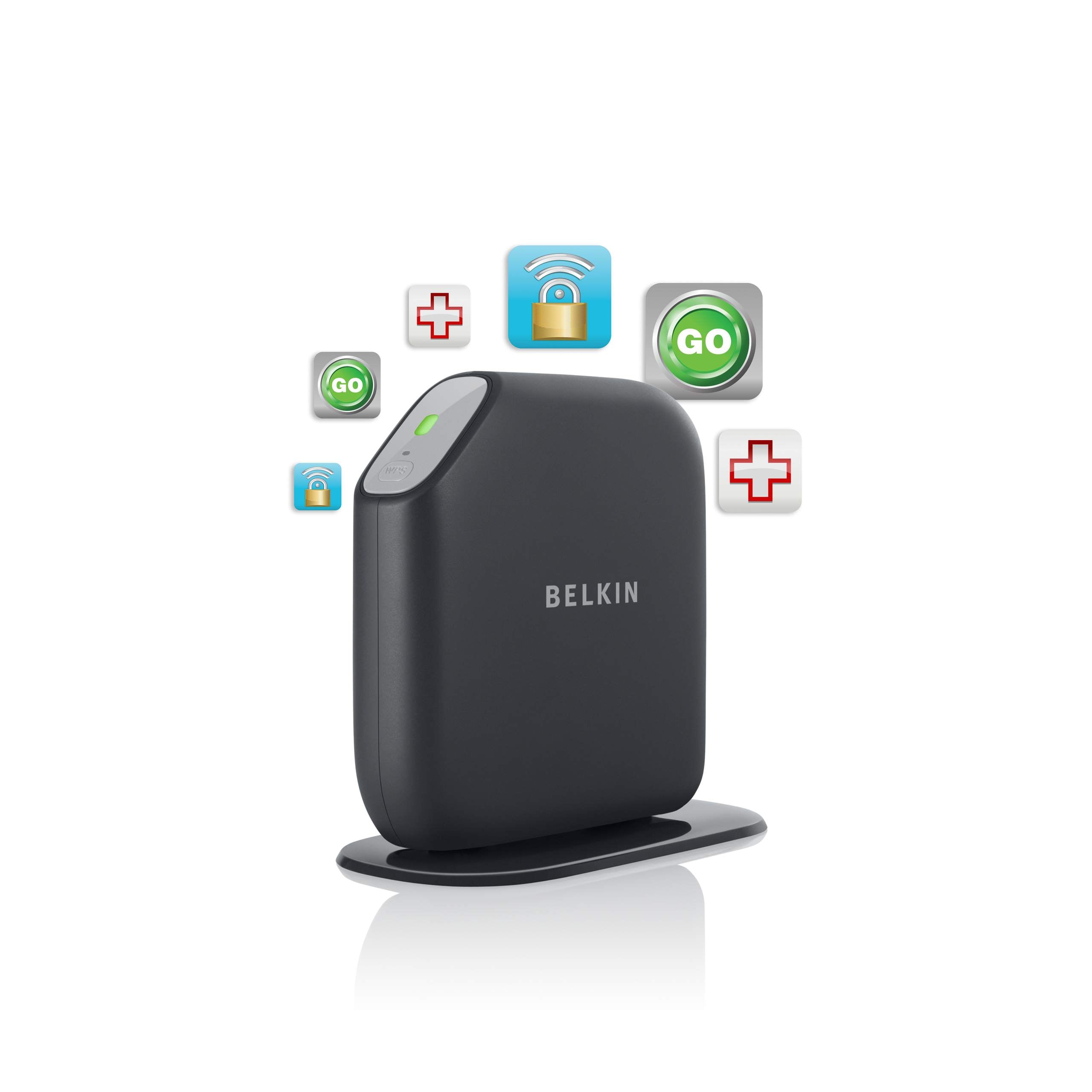

Belkin Surf Wireless Router

Surf the Web, email, and instant message from anywhere in your home


Performance
Great speed and coverage, with a range that easily covers your home.

Speed
Get the fastest speeds for all your wireless activities. 802.11n technology gives you speeds of up to 300 Mbps*—that’s 5 times the speed of G.

3D Coverage
3d Dual-plane antennas and MIMO technology provide three-dimensional whole-home coverage for consistent signal, even through walls and floors.

Security
WPS/WPA2 encryption standards and preset security settings get you up and running safely. One-touch Wi-Fi Protected Setup (WPS) securely connects multiple computers and devices with the push of a button.

Easy Setup
Get your secure wireless network up and running in minutes. Just 3 easy steps, and you're you out of the box and onto the Web.


Specifications

• Bandwidth: 20MHz and 20/40MHz auto
• Browser Based Management: Internet Explorer® 6–8, Firefox® 1.0, or Safari® 2.0
• Encryption Types Supported: WPA2/WPA-Personal (PSK) & WEP 64/128-bit
• Ethernet ports: 4
• Firewall: NAT and SPI
• Hardware Interface Type: Ethernet (4xLAN, 1xWAN)
• Humidity
• Operating: 10 ~ 85% non-condensing
• Storing: 5 ~ 95% non-condensing
• IP Sharing Method: NAT
• ISP Protocols Supported: Dynamic, Static, PPOE, Telstra BigPond
• LEDs: 1x network status LED, 1x WPS LED
• Max. No of WLAN Connections: 16
• Max. Operating Range: Up to 365m**
• Plug & Play: Yes
• Ports: 1x WAN 4x LAN
• Quality Of Service: 802.11e / WMM Quality of Service
• Radio Frequency Band: 2.4GHz
• Radio Frequency Channels: 1 - 13
• Reset Process
• Via recessed reset button Reboot router: Push and release (1 second)
• Restore default settings: Push and hold 10 seconds
• Security: Pre-configured security, Wi-Fi Protected Setup™ (WPS), 256-bit WPA®/WPA2® encryption, 64-bit, 128-bit WE P encryption
• Specifications Standards: IEEE 802.11b (up to 11Mbps*) , IEEE 802.11g (up to 54Mbps*) , IEEE 802.11n (up to 300Mbps*)
• Supporting Software: Easy Start, Preset Security, Self Healing
• User Interface : Web-based password-protected advanced
• VPN Support: PPTP, IPSec pass-through
• WPS Push Button Security: Yes

Warranty

• 3 year company provided
