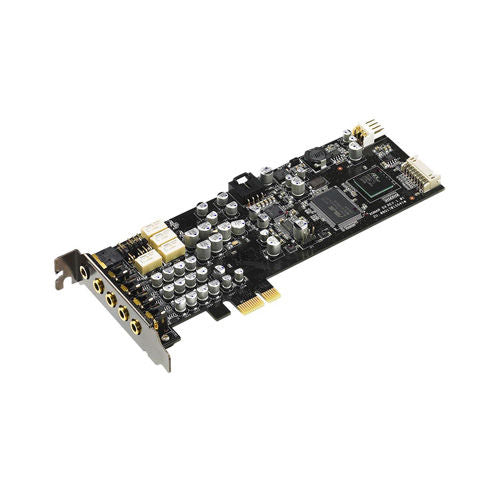

Asus Xonar DX Sound Card

Audio Interface

PCI Express

Audio Performance

Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :

116 dB

Output THD+N at 1kHz (Front-out) :

>0.00056 %(-105 dB)

Output THD+N at 1kHz (Headphone-out) :

>0.001 %(-100 dB)

Frequency Response (-3dB, 24bit/96KHz input) :

10 Hz to 48 KHz

Output/Input Full-Scale Voltage :

Unbalanced Output : 2 Vrms (5.65 Vp-p)

Chipset

Audio Processor :ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)

Sample Rate and Resolution

Analog Playback Sample Rate and Resolution :

44.1K/48K/96K/192KHz @ 16bit/24bit

Analog Recording Sample Rate and Resolution :

44.1K/48K/96K/192KHz @ 16bit/24bit

S/PDIF Digital Output :

44.1K/48K/96K/192KHz @ 16bit/24bit

ASIO Driver Support :

44.1K/48K/96K/192KHz @ 16bit/24bit

Connectivity

Analog Output

4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out)

Analog Input

1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)

Digital

1 x S/PDIF out (1 x Optical (Toslink)/(combo with analog in))

1 x Front-Panel Header

1 x Aux in (4-pin header)

Special Features

Dolby® Technologies : Dolby® Digital Live/Dolby® Headphone /Dolby® Virtual Speaker /Dolby® Pro-Logic II

Smart Volume Normalizer™

FlexBass™

10 -band Equalizer

27 Environment Effects

GX 2.5 Game Audio Engine

VocalFX™

Accessories

S/PDIF adaptor x 1

Low -profile Bracket x 1

Quick Start Guide x 1
