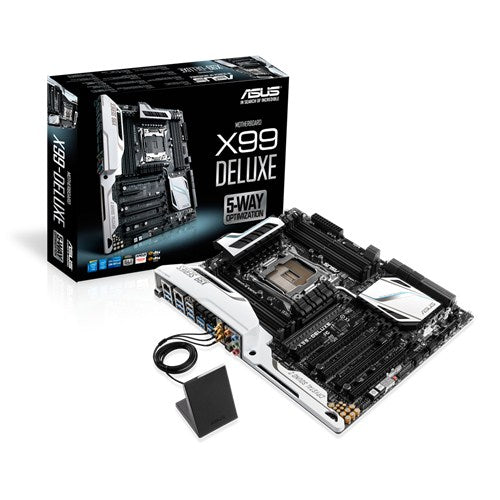

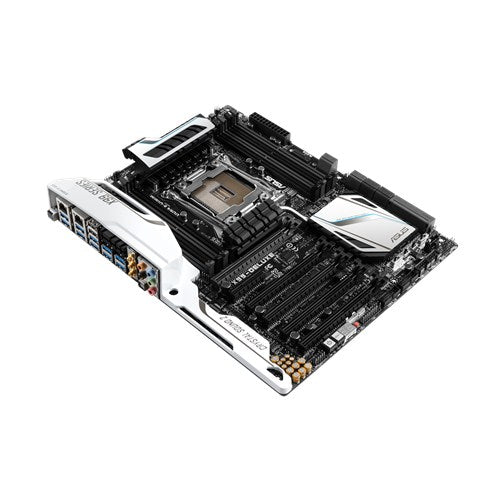

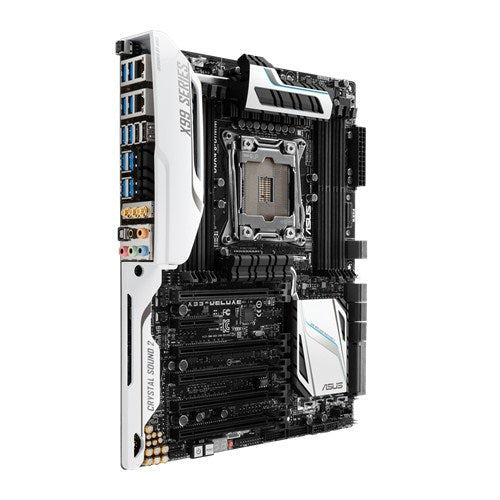

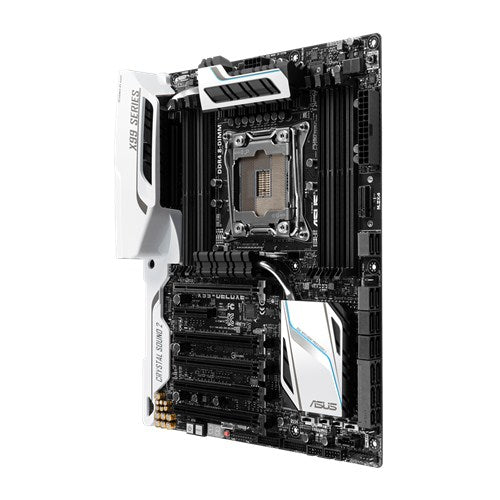

Asus X99-Delux

Buy Asus X99-Delux online for Rs.49300 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

Fully loaded with unmatched performance, 3x3 802.11ac Wi-Fi and extra fan extension card for an awesome X99 build.

• Patent Pending OC Socket – Drive CPU and DDR4 performance beyond all expectations!
• 5-Way Optimization by Dual Intelligent Processors 5 – One click overclock and cooling, done!
• 3x3(3T3R) 802.11ac Wi-Fi - Fastest onboard Wi-Fi up to 1300Mb/s

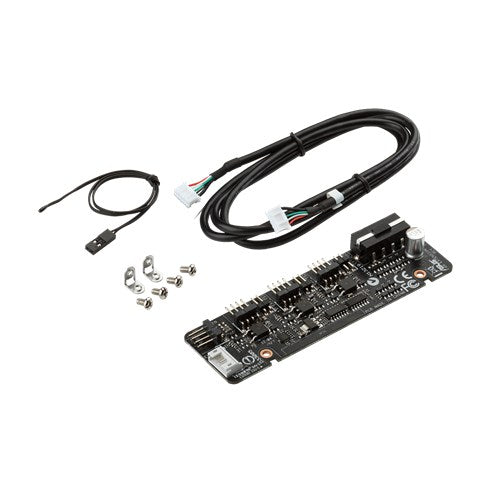

• Fan Extension Card - Powerful cooling with flexible installation & detailed control

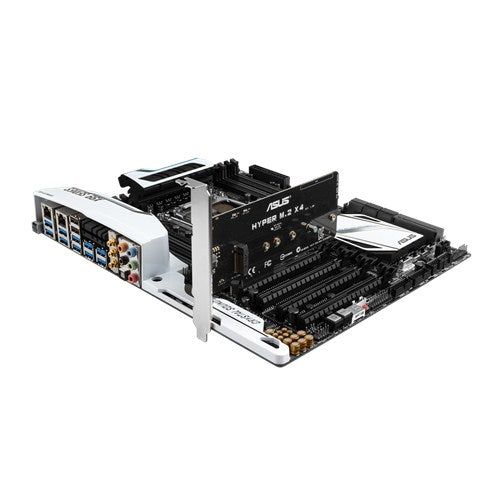

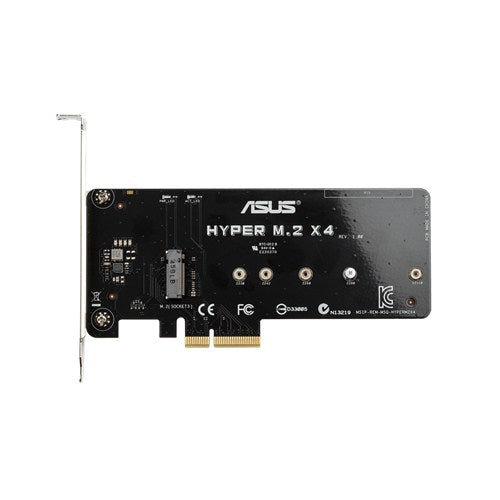

• Dual 32Gb/s ultrafast M.2 x4 (onboard and PCIE add-in card)

Specification

CPU

Intel® Socket 2011-v3 Core™ i7 Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® X99

Memory

8 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

40-Lane CPU-

5 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8 mode) *1
1 x PCIe 2.0 x4 (max at x4 mode) *2

28-Lane CPU-

3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8)
2 x PCIe 2.0 x16 (x1 mode)
1 x PCIe 2.0 x4 (max at x4 mode) *2

Storage

New Intel® Core™ i7 Processors :
1 x M.2 Socket 3, with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)

Intel® X99 chipset :

1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s), *3,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology*4

ASMedia® SATA Express controller : *5

1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports

LAN

Intel® I218V, 1 x Gigabit LAN Controller(s)
Intel® I211-AT, 1 x Gigabit LAN
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Support Teaming Technology
ASUS Turbo LAN Utility

Wireless Data Network

Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Support ASUS Wi-Fi Go! Utility
Up to 1300Mbps transfer speed

Bluetooth

Bluetooth V4.0

Audio

Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)

Audio Feature :

- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality

USB Ports

Intel® X99 chipset :

4 x USB 3.0/2.0 port(s) (4 at mid-board)

Intel® X99 chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

ASMedia® USB 3.0 controller :

10 x USB 3.0/2.0 port(s) (10 at back panel, blue)

Special Features

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS 5X Protection :

- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

ASUS TPU :

- Auto Tuning
- GPU Boost
- TPU switch

ASUS EPU :

- EPU switch

ASUS Digital Power Design :

- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility

ASUS Wi-Fi GO!

- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems

ASUS Exclusive Features :

- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2

Interactive HomeCloud

- Media Streamer

ASUS EZ DIY :

- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Special Memory O.C. Design
Turbo App
Fan Xpert 3

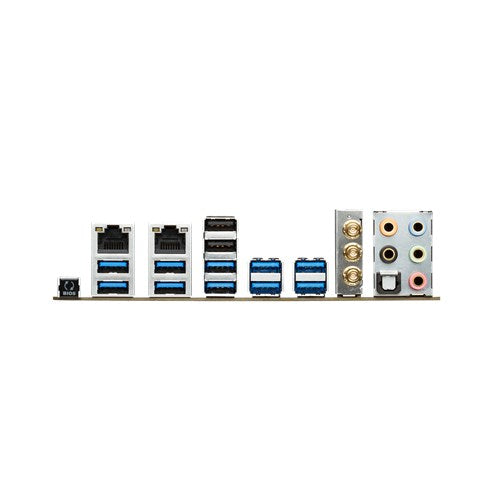

Back I/O Ports

2 x LAN (RJ45) port(s)
10 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0

Internal I/O Ports

1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: gray,
1 x M.2 Socket 3 with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x SLI/CFX switch (2/3-WAY adjustments)

Accessories

User's manual
ASUS Q-Shield
8 x SATA 6Gb/s cable(s)
1 x ASUS 2-Way/3-Way SLI bridge
1 x M.2 X4 bracket
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Q-connector(s) (2 in 1)
1 x 5-pin to 5-pin cable
- 1 x Thermistor cable(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers?ASUS Utilities?EZ Update ?Anti-virus software (OEM version)

Operating System

Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
