ASUS TUF X570-Plus (WiFi) Gaming Motherboard

Buy ASUS TUF X570-Plus (WiFi) Gaming Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

TUF Gaming X570-Plus distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus is the perfect foundation for your next high-core-count AMD battle rig.

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3X longer lifespan than traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!

Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.

Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

Effective shielding preserves the integrity of audio signals to ensure best quality.

Premium Japanese audio capacitors provide warm, natural, and immersive sound.

Delivers an expansive soundstage and authorative dynamics.

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

TUF Gaming X570-Plus' Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

• AMD AM4 Socket 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™ Processors

• AMD X570

• 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

• 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

• 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

• Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• Multi-VGA output support : HDMI/DisplayPort ports
• Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
• Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

• Supports AMD CrossFireX™ Technology

• 1 x PCIe 4.0 x16 (x16 mode)

• 1 x PCIe 3.0 x16 (x16 mode)

• 1 x PCIe 3.0/2.0 x16 (x8 mode)

• 1 x PCIe 4.0 x16 (max at x4 mode)
• 2 x PCIe 4.0 x1

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 8 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 10

• Realtek® L8200A
• ASUS Turbo LAN Utility
• TUF LANGuard

• Intel® Wireless-AC 9260
• Wi-Fi 802.11 a/b/g/n/ac
• Supports dual band frequency 2.4/5 GHz
• Supports MU-MIMO
• Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

• Bluetooth® 5.0

• Realtek® ALC S1200A 8-Channel High Definition Audio CODEC

• Exclusive DTS Custom for GAMING Headsets.
• Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

• 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )

• 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)

• 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)

• 4 x USB 2.0 port(s) (4 at mid-board)

• ASUS SafeSlot: Protect your graphics card Investment
• ASUS ESD Guard: Enhanced ESD protection
• ASUS Overvoltage Protection: World-class circuit-protecting power design
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• ASUS DIGI+ VRM: Precision control for stable power
• ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

• Aura Lighting Control
• Aura RGB Strip Headers
• Addressable Gen 2 Header

• AI Suite 3
• Ai Charger

• Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
• ASUS Fan Xpert 4

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM

• Procool
• SafeSlot
• Digi+ VRM
• Highly Durable components
• ESD Guards

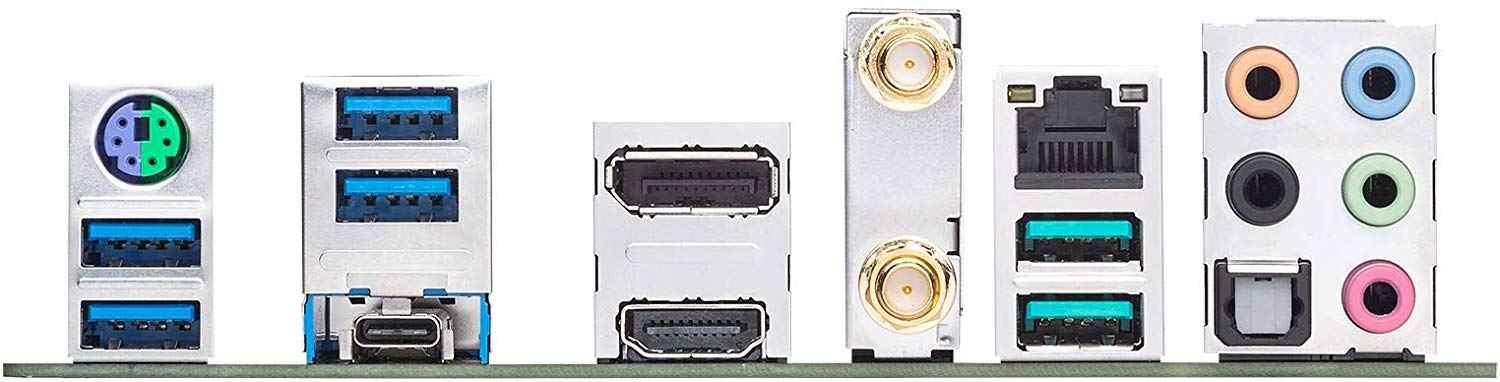

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
• ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

• 2 x Aura RGB Strip Header(s)
• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x TUF GAMING Sticker
• 1 x TUF Certification card(s)

• 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

• WOL by PME, PXE

• Windows® 10 64-bit

• 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
