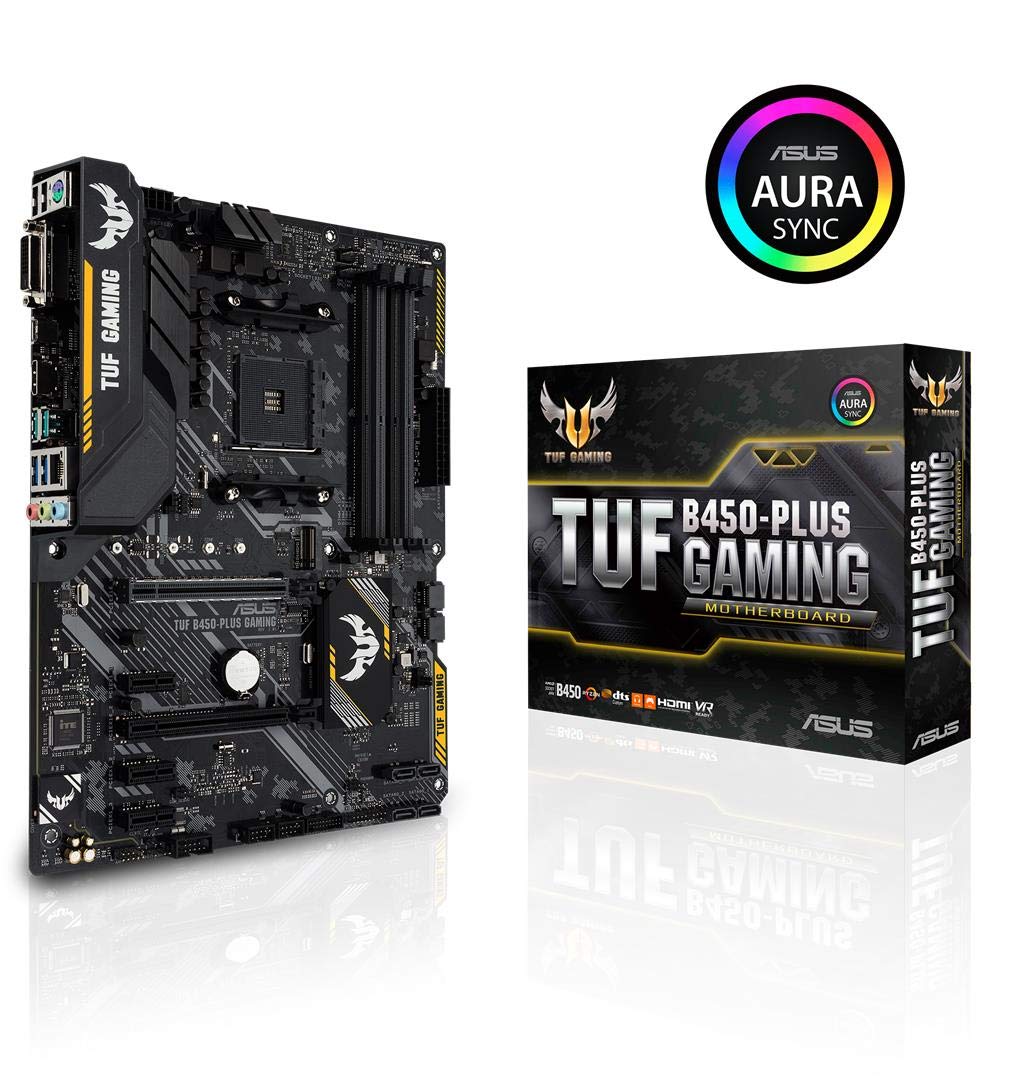

ASUS TUF B450-Plus Gaming Motherboard

Buy ASUS TUF B450-Plus Gaming Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

ASUS TUF B450-Plus Gaming AMD B450 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 4400MHz support, 32Gbps M.2, HDMI 2.0b, Type C and native USB 3.1 Gen 2.

TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.

TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Antec®, Apacer®, Ballistix, Cooler Master, Corsair, Deepcool, Enermax, G.Skill, GeIL®, In Win, Scythe, SilverStone, Team Group and XPG. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger.

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV

ESD TVS diode protection on the LAN Circuit.

Additional on-circuit ESD transient-voltage-suppression.

Additional on-circuit ESD TVS diodes to protect D-Sub functionality.

TVS diode for surface-mount and dual-inline package

Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.

+20% temperature tolerance and 2.5X-longer lifespan.

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

System temperatures are key to a stable gaming rig. TUF Gaming motherboards include FAN Xpert 4 Core software that's able to intelligently control system fans based upon the input of sensor. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.

TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.

Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

With dual backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps – or twice as fast as USB 3.1 Gen 1.

With x4 PCI Express® 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors.

AMD B450

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (x8 mode)

1 x PCIe 3.0/2.0 x16 (x4 mode)

1 x PCIe 2.0 x16 (max at x4 mode)

3 x PCIe 2.0 x1

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1

2 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Realtek® RTL8111H

TUF LANGuard

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC

- Exclusive DTS Custom for GAMING Headsets.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)

1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)

2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

- ASUS SafeSlot: Protect your graphics card Investment

- ASUS ESD Guard: Enhanced ESD protection

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: Precision control for stable power

- Aura Lighting Control

- Aura RGB Strip Headers

- AI Suite 3

- Ai Charger

- PC Cleaner

- File Transfer

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 4 Core

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS Q-Shield

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS C.P.R.(CPU Parameter Recall)

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x HDMI

1 x LAN (RJ45) port(s)

1 x 5Gb/s port(s) USB Type-CTM

2 x USB 3.1 Gen 2 (teal blue)Type-A,

2 x USB 3.1 Gen 1 (blue) Type-A

2 x USB 2.0

3 x Audio jack(s)

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

User's manual

ASUS Q-Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x TUF GAMING Sticker

1 x TUF Certification card(s)

128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Windows 10 64-bit

Windows 7 64-bit

ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

*1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.

*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

*3 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors.
