Asus Sabertoothh Z77

Buy Asus Sabertoothh Z77 online for Rs.25800 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

The ultimate thermal solution for Intel® Z77 motherboards with Thermal Armor and Thermal Radar

• LGA1155 Intel® 3rd/2nd Generation Processors Ready
• TUF Thermal Armor - Total Airflow-Boosting Heat Dissipation
• TUF Dust Defender - Repel the Dust, Expand the Lifespan
• TUF Thermal Radar - Real Time Temp. Detection and Heat Removal
• TUF Components [Choke, Cap. & MOSFET; Certified by Military-standard] - Certified for Tough Duty
• New DIGI+ Power Control - All-New Digital Power Control for both CPU and DRAM
• Windows 8 Ready – Assured Compatibility

Specification

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® Z77

Memory

4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 1696 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *1

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2
1 x PCIe 2.0 x16 (x4 mode, black) *3
3 x PCIe 2.0 x1

Storage

Intel® Z77 chipset

2 x SATA 6Gb/s port(s), brown
4 x SATA 3Gb/s port(s), black
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4
ASMedia® ASM1061 controller : *5
2 x SATA 6Gb/s port(s), gray
2 x eSATA 6Gb/s port(s), red

LAN

Intel® 82579V, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature

- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel

USB Ports

Intel® Z77 chipset : *6

4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

ASMedia® ASM1042 controller : *6

2 x USB 3.0 port(s) (2 at back panel, blue)

Intel® Z77 chipset


10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

Special Features

TUF ENGINE! Power Design :

- 8 +4 +2 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility

Ultimate COOL! Thermal Solution :

- TUF Thermal Armor
- TUF Thermal Radar


Safe & Stable! Guardian Angel

- Dust Defender

ASUS Exclusive Features

- USB BIOS Flashback
- MemOK!
- AI Suite II
- USB Charger+
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost

ASUS EZ DIY

- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS

ASUS Q-Design

- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

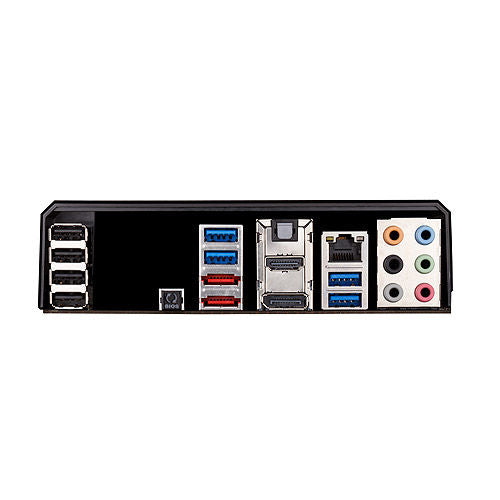

Back I/O Ports

1 x DisplayPort
1 x HDMI
2 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Optional Fan connector(s) (4 -pin)
2 x Assistant Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)

Accessories

User's manual
Accessory Guide
ASUS Q-Shield
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
2 x Accessory Fan(s) ( 35 mm )
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)
1 x Accessory Package(s):
- 1 x 40mm I/O Cover fan lid(s)
- 3 x PCIe x16 slot dust cover(s)
- 2 x DRAM slot dust cover(s)
- 3 x PCIe x1 slot dust cover(s)
- 2 x Short fan screw(s)
- 4 x Long fan screw(s)
- 1 x Adhesive Sponge(s) for 35mm Fan

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

Support Disc

Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
