ASUS ROG Strix Z390-E Gaming Motherboard

Buy ASUS ROG Strix Z390-E Gaming Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

ROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.

With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

Digital power control and an array of DrMOS power stages ensure the ROG Strix Z390 Gaming has the muscle to control Intel's latest CPUs.

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. The lower impedance helps to prevent hotspots and connector failure.

ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

To provide Intel's latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix Z390-E Gaming. Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. To further enhance overclocking headroom for fully stacked memory configurations, a highly customized T-Topology layout delivers time-aligned signaling.

ROG Strix Z390-E Gaming features Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

ROG Strix Z390-E Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-E Gaming wonderfully easy.

An illuminated ROG logo with a natural diffuse glow and onboard I/O shroud lighting with a futuristic cyber-text pattern gives ROG Strix Z390-E Gaming a unique and arresting design that communicates its gaming identity. The cyber outlook extends to the PCB and heatsink with subtle textures that contribute a premium look and feel.

ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard's built-in Aura RGB lighting easily syncs with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. ASUS Aura software provides simple and intuitive lighting management.

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory — so you can build fuss-free.

Gear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility — and enjoy more choice than any competing brand.

The ROG Strix Z390-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

• Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0
• The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Intel® Z390

• 4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Hyper DIMM support is subject to the physical characteristics of individual CPUs.

• Integrated Graphics Processor- Intel® HD Graphics support
• Multi-VGA output support : HDMI/DisplayPort ports
• Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
• Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

• Supports NVIDIA® 2-Way SLI® Technology
• Supports AMD 3-Way CrossFireX™ Technology

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
• 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
• 3 x PCIe 3.0/2.0 x1

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Intel® Optane™ Memory Ready

• Intel® I219V
• Anti-surge LANGuard
• ROG GameFirst Technology

• Intel® Wireless-AC 9560
• Wi-Fi 802.11 a/b/g/n/ac
• Supports dual band frequency 2.4/5 GHz
• Supports MU-MIMO

• Bluetooth® 5.0

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
• Dual OP Amplifiers
• Impedance sense for front and rear headphone outputs
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• SupremeFX Shielding Technology
• Supports up to 32-Bit/192kHz playback *2

• SupremeFX Shielding™ Technology
• Optical S/PDIF out port(s) at back panel
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Sonic Radar III
• Sonic Studio III + Sonic Studio Link

• 1 x USB 3.1 Gen 2 front panel connector port(s)

• 4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM)

• 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)

• 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

• RAMCache III
• CPU-Z
• GameFirst V
• Sonic Studio III + Sonic Studio Link
• Sonic Radar III

• OC Design - ASUS PRO Clock Technology
• Full BCLK range for extreme overclocking performance
• 5-Way Optimization by Dual Intelligent Processors 5
• 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App

• Improved DDR4 Stability

• Aura Lighting Control
• Aura RGB Strip Headers
• Aura Lighting Effects Synchronization with compatible ASUS ROG devices
• Aura Addressable Strip Header(s)

• MemOK! II
• AI Suite 3
• Ai Charger
• Armoury Crate
• Pre-mounted I/O Shield
• ASUS NODE: hardware control interface

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3

• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM

• 3D printing friendly
• AURA-RGB Lighting

• Procool
• SafeSlot
• Digi+ VRM
• DRAM Overcurrent Protection
• Highly Durable components
• ESD Guards

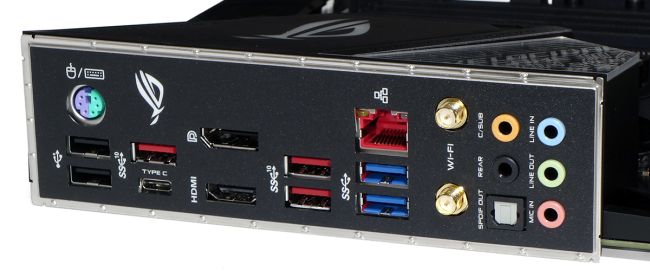

• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)
• 2 x USB 3.1 Gen 1
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x ASUS Wi-Fi Module

• 1 x Aura Addressable Strip Header(s)
• 1 x AAFP connector
• 2 x Aura RGB Strip Header(s)
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x M.2_FAN connector
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x W_PUMP+ connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! II switch(es)
• 1 x Thermal sensor connector(s)
• 1 x CPU OV
• 1 x Clear CMOS jumper(s)
• 1 x Node Connector(s)
• 1 x 14-1 pin TPM connector
• 1 x COM port header
• 1 x AIO PUMP Header
• 1 x USB 3.1 Gen 2 front panel connector

• User's manual
• 4 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x CABLE TIE BLACK
• 1 x SLI HB BRIDGE(2-WAY-M)
• 1 x ROG Strix stickers
• 1 x Assistant Fans(40mm)
• 1 x screws for Assistant Fan(s)
• 1 x ROG Door Hanger(s)
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED
• 1 x Thermistor cable(s)

• 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

• WOL , PXE

• Windows® 10 64-bit

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

• When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
• Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
