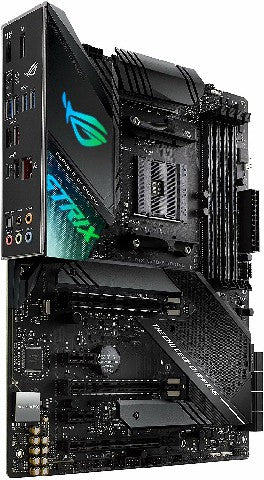

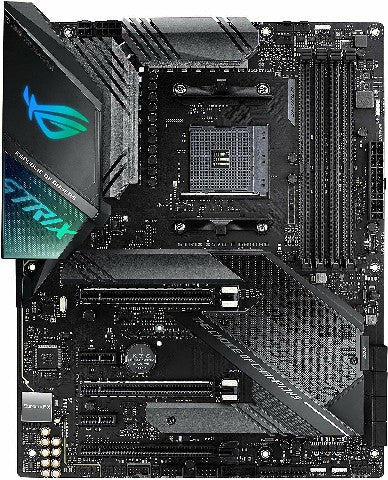

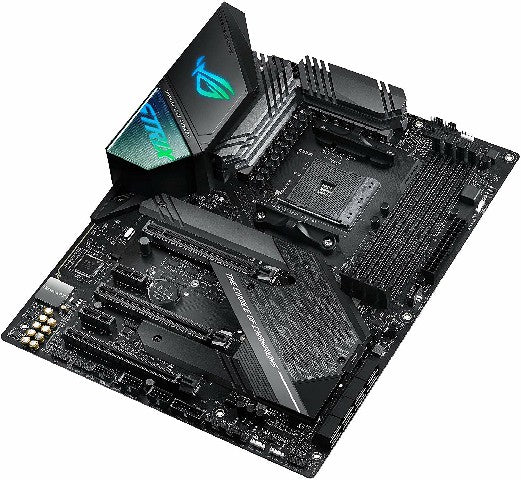

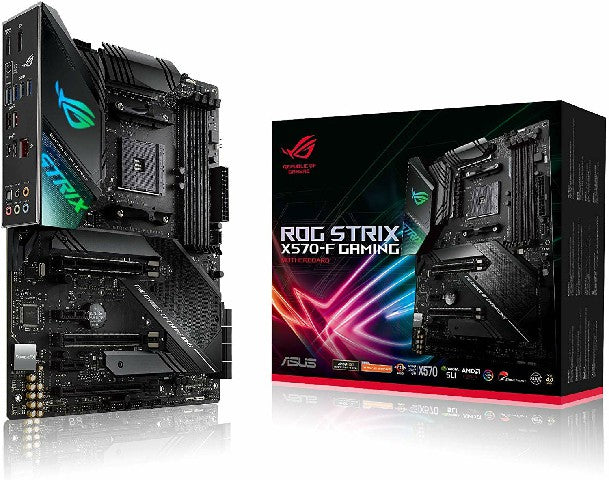

ASUS ROG Strix X570-F Gaming Motherboard

Buy ASUS ROG Strix X570-F Gaming Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.

With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.

The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

A MOS heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north MOS heatsink for better performance and wattage resistance.

A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.

The 6-layer PCB quickly dissipates heat around the VRM, improving overall system stability and giving the CPU more overclocking headroom.

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. ROG Strix X570-F Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

ROG Strix X570-F Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ROG Strix X570-F Gaming's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard's built-in Aura RGB lighting easily syncs with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. ASUS Aura software provides simple and intuitive lighting management.

GameFirst V is an ROG-exclusive tool that let you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

• AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

• AMD X570

• 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

• 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

• 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture

• Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• Multi-VGA output support : HDMI/DisplayPort ports
• Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
• Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

• Supports NVIDIA® 2-Way SLI® Technology
• Supports AMD 3-Way CrossFireX™ Technology

• Supports AMD 2-Way CrossFireX™ Technology

• 2 x PCIe 4.0 x16 (x16 or dual x8)

• 2 x PCIe 3.0 x16 (x16 or dual x8)

• 1 x PCIe 3.0 x16 (x8 mode)

• 1 x PCIe 4.0 x16 (max at x4 mode) *1
• 2 x PCIe 4.0 x1

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

• 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 8 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10

• Intel® I211-AT, 1 x Gigabit LAN Controller(s)
• Anti-surge LANGuard
• ROG GameFirst Technology

• SupremeFX 8-Channel High Definition Audio CODEC S1220A
• Dual OP Amplifiers
• Impedance sense for front and rear headphone outputs
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• SupremeFX Shielding Technology
• Supports up to 32-Bit/192kHz playback

• Optical S/PDIF out port(s) at back panel
• Sonic Radar III
• Sonic Studio III + Sonic Studio Link

• 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )

• 1 x USB 3.2 Gen 2 front panel connector port(s)

• 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)

• 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)

• 4 x USB 2.0 port(s) (4 at mid-board)

• RAMCache III
• CPU-Z
• GameFirst V
• Sonic Studio III + Sonic Studio Link
• Sonic Radar III
• Overwolf

• Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

• Auto Tuning, TurboV, GPU Boost

• DRAM Overcurrent Protection
• Stainless Steel Back I/O
• Highly Durable Components
• DIGI+ VRM
• SafeSlot
• ESD Guards on LAN, Audio,and USB ports

• EPU

• Aura Lighting Control
• Addressable Gen 2 Header

• USB BIOS FlashBack™
• AI Suite 3
• Ai Charger
• ASUS NODE : hardware control interface
• BIOS FlashBack™ Button

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3

• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM

• AURA-RGB Lighting

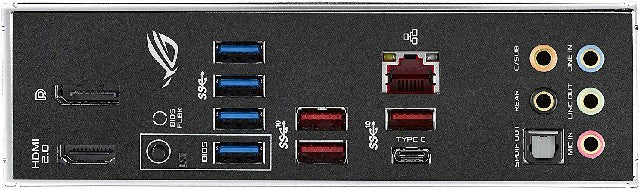

• 1 x DisplayPort
• 1 x HDMI
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x USB BIOS FlashBack™ Button(s)
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
• 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
• Anti-surge LAN (RJ45) port

• 1 x PCH_FAN
• 1 x AAFP connector
• 2 x Aura RGB Strip Header(s)
• 2 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
• 1 x SPI TPM header
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x Node Connector(s)
• 1 x System panel connector
• 1 x T_Sensor Connector
• 1 x M.2 Fan Header
• 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

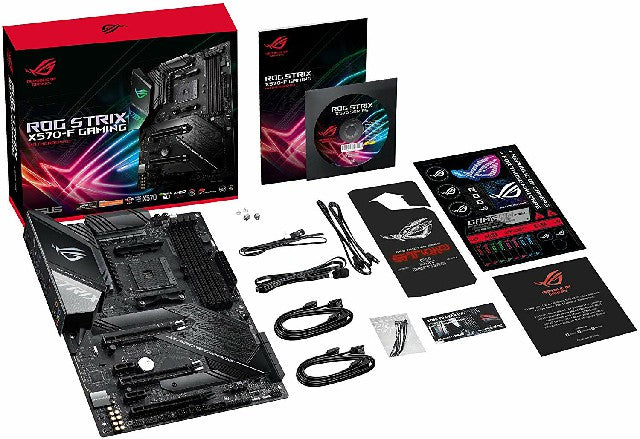

• User's manual
• 4 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x Strix door hanger
• 1 x ROG Strix stickers
• 1 x Cable ties pack(s)
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED
• 1 x Thermistor cable(s)
• 1 x ROG Thank you card

• 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.

• WOL, PXE

• Overwolf
• Anti-virus software (OEM version)
• WinRAR

• Windows® 10 64-bit

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

• PCIeX16_3 slot shares bandwidth with PCIeX1_2.
• Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
