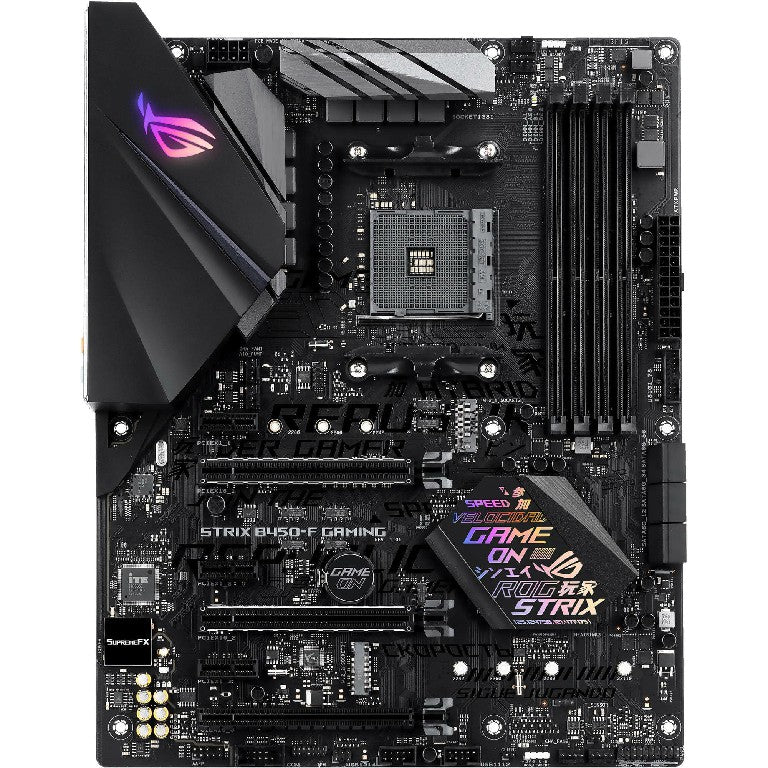

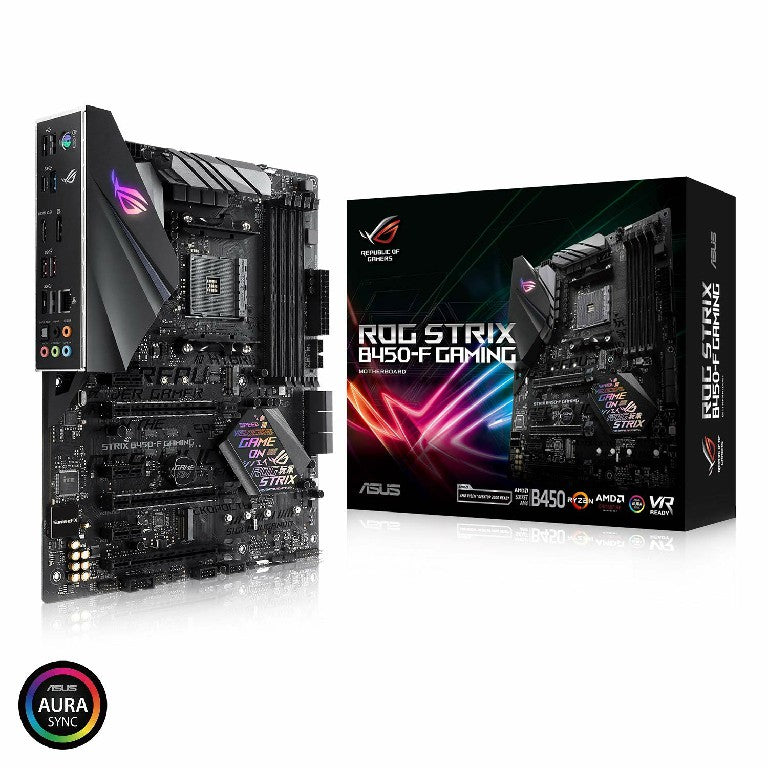

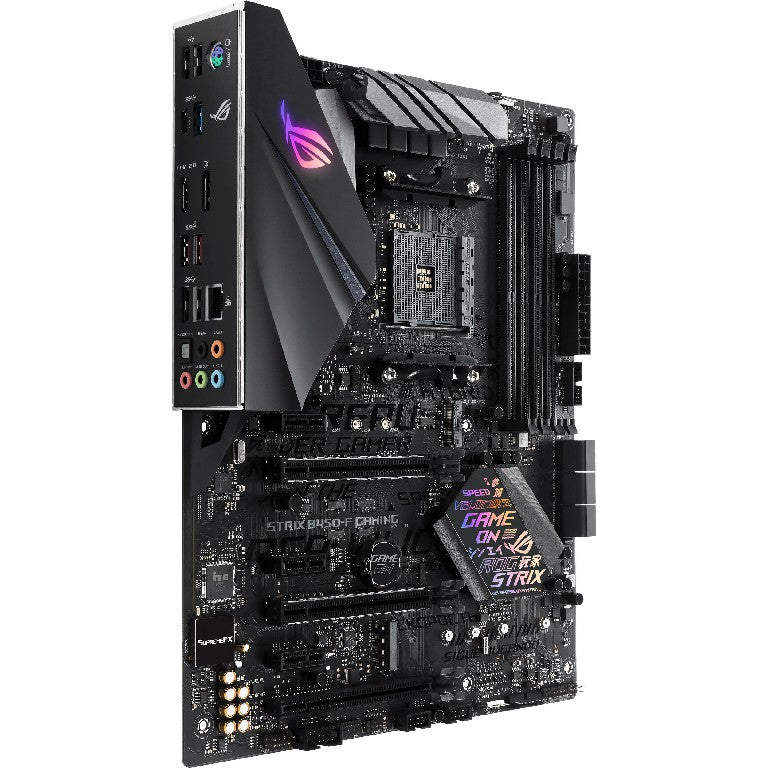

ASUS ROG Strix B450-F Gaming Motherboard

Buy ASUS ROG Strix B450-F Gaming Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

ASUS ROG Strix B450-F Gaming Motherboard AMD AM4 B450 ATX gaming motherboard with DDR4 4400MHz support, SATA 6Gbps, HDMI 2.0, dual NVMe M.2, USB 3.1 Gen 2, and Aura Sync RGB LED lighting

With ample power to fuel Ryzen's cores, plus cooling, storage and connectivity options for a range of hardware, the ROG Strix B450-F Gaming motherboard has everything you need to build on a budget or load up with high-performance components to game in the big leagues.

A host of design touches, customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix B450-F Gaming wonderfully easy.

The ROG Strix B450-F Gaming motherboard features firmware controls and software utilities crafted for all skill levels, making first-time setup, tuning, and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

The AMD Ryzen™ processor is based on the innovative Zen core architecture and features up to eight cores and Radeon™ Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.

The AMD B450 chipset delivers high performance and flexibility with the latest AMD AM4-socket Ryzen™ processors. It also offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, and four 6Gbps SATA ports for faster data retrieval.

AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors.

AMD B450

4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture.

Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors

Multi-VGA output support : HDMI/DisplayPort ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Supports AMD 3-Way CrossFireX™ Technology

2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)

1 x PCIe 3.0/2.0 x16 (x8 mode)

1 x PCIe 2.0 x16 (max at x4 mode) *1

3 x PCIe 2.0 x1

1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3

1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4

2 x SATA 6Gb/s port(s)

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3

2 x SATA 6Gb/s port(s)

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

Intel® I211-AT, 1 x Gigabit LAN Controller(s)

Anti-surge LANGuard

ROG GameFirst Technology

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- SupremeFX Shielding Technology

- Supports up to 32-Bit/192kHz playback

- Optical S/PDIF out port(s) at back panel

- Sonic Radar III

- Sonic Studio III + Sonic Studio Link

3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue)

1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C)

2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)

2 x USB 3.1 Gen 1 port(s)

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

ROG RAMCache II

ROG CPU-Z

Pre-mounted I/O Shield

Overwolf

GameFirst IV

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

- Auto Tuning, TurboV, GPU Boost

Fan Xpert4

- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control

- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports

- DRAM Overcurrent Protection

- Highly Durable Components

- SafeSlot

- EPU

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

- AI Suite 3

- Ai Charger

- ASUS Grid

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS Q-Shield

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- featuring system performance tuning for selected applications

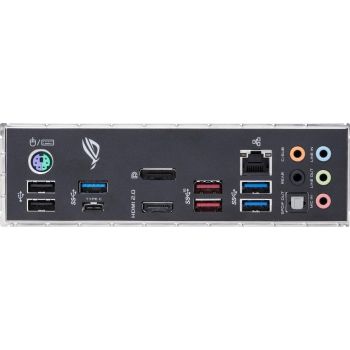

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (red)Type-A,

4 x USB 3.1 Gen 1 (blue)

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

2 x Aura RGB Strip Headers

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x TPM header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

User's manual

4 x SATA 6Gb/s cable(s)

2 x M.2 Screw Package

1 x Supporting DVD

1 x Strix door hanger

1 x ROG Strix stickers

1 x Cable ties pack(s)

1 x Extension Cable for RGB strips (80 cm)

1 x Replaceable PCH nameplate

Windows® 10 64-bit

Windows® 7 64-bit *6

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

1 PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3.

2 Support StoreMI and NVMe RAID

3 When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled.

4 When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode.

5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

6 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
