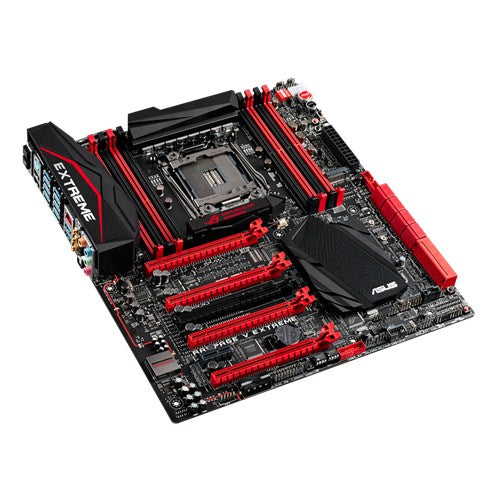

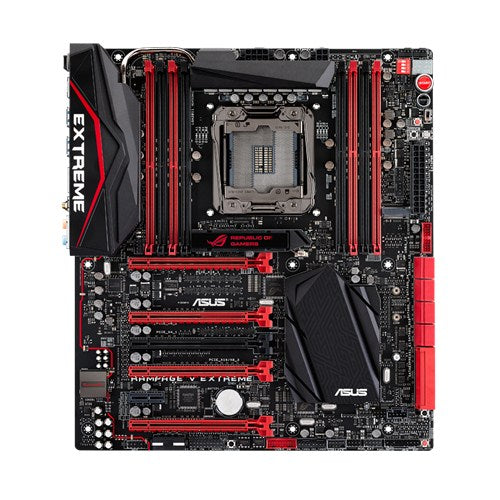

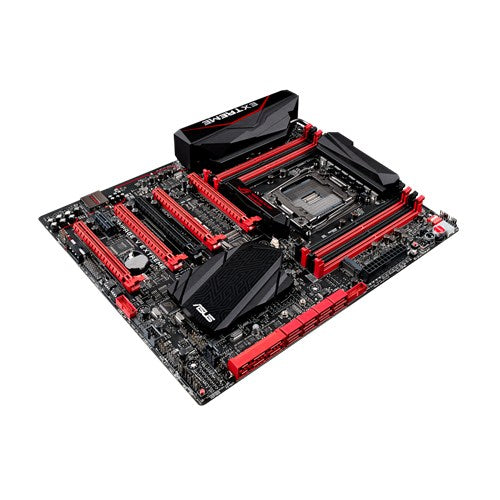

Asus Rampage V Extreme

Buy Asus Rampage V Extreme online for Rs.56800 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

Take X99 to the extreme

• Intel® Core™ i7 processors on LGA 2011-v3 socket
• Intel X99 Express chipset
• OC Socket, OC Panel, Safe Boot and ReTry buttons – Powerful tuning kit for breaking records
• Extreme Engine Digi+ IV – Primo components for rock-steady power
• DirectCU, X-Socket II, multiple thermal sensors and Fan Xpert 3 – Stay even cooler
• PCI Express 3.0 x4 M.2, dual SATA Express, 3T3R 802.11ac Wi-Fi – Unparalleled connectivity with blistering-fast transfer speeds
• SupremeFX 2014, Sonic Radar II, Intel Ethernet, LANGuard, GameFirst III, KeyBot, RAMDisk – Hear more, banish lag, accelerate loading and control

Specification

CPU

Intel® Socket 2011-v3 Core™ i7 Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® X99

Memory

8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

Supports NVIDIA® 4-Way SLI™ Technology *1
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD CrossFireX™ Technology

Expansion Slots

4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8 or x16/x8/x8/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU) *2
1 x PCIe 2.0 x16 (x4 mode) *3
1 x PCIe 2.0 x1 *3

Storage

New Intel® Core™ i7 Processors :

1 x M.2 Socket 3, gray, , with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)

Intel® X99 chipset :

1 x SATA Express port, red, compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology*5

ASMedia® SATA Express controller : *6

1 x SATA Express port, red, compatible with 2 x SATA 6.0 Gb/s ports

LAN

Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard

Wireless Data Network

Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Up to 1300Mbps transfer speed

Bluetooth

Bluetooth V4.0

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ELNA® premium audio capacitors

Audio Feature :

- Blu-ray audio layer Content Protection
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II

USB Ports

Intel® X99 chipset :

4 x USB 3.0 port(s) (4 at mid-board)

Intel® X99 chipset : *7

6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

ASMedia® USB 3.0 controller : *8

10 x USB 3.0 port(s) (10 at back panel, blue)

OC Panel

2.6 " LCM display
EXTREME/NORMAL mode switch

EXTREME Mode for subzero OC benching:*9

- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- VGA SMB header
- ProbeIt
- 4 x 4-pin extra fan connectors

NORMAL Mode for in-chassis usage:*10

- CPU Level Up OC button
- FanSpeed control button
- LCM backlight on/off button

I/O Ports:

- POWER?1 x SATA power connector
- ROG_EXT port?1 x 18-1 pin data connection port

ROG Exclusive Features

DirectCU thermal design
ROG Connect :

- RC Diagram
- RC Remote
- RC Poster

Extreme Engine Digi+ IV :

- IR3555 PoweIRstage®
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors

ROG Extreme OC kit :

- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- Debug LED

ProbeIt
KeyBot

- CPU Level Up
- XMP
- Direct Key

UEFI BIOS features :

- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview

ROG RAMDisk
GameFirst III
iROG
Extreme Tweaker
USB BIOS Flashback

Overclocking Protection :

- COP EX (Component Overheat Protection - EX)
- Voltiminder LED II

Special Features

5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App

Gamer's Guardian:

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O

ASUS Wi-Fi GO!

- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems

ASUS Exclusive Features :

- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- Push Notice

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Media Streamer
Turbo App
Fan Xpert 3

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

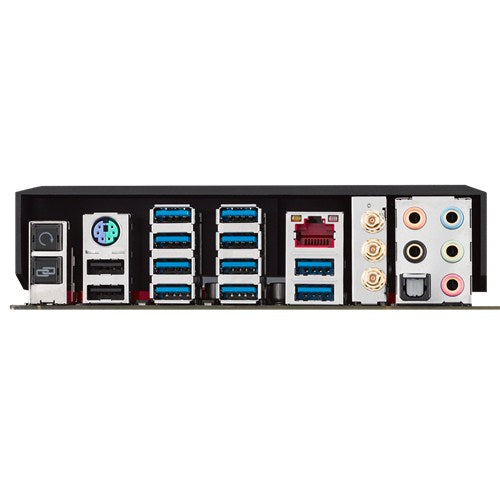

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
10 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0

Internal I/O Ports

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
6 x Chassis Fan connector(s) (6 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button
1 x Safe Boot button
1 x ReTry button

Accessories

User's manual
I/O Shield
10 x SATA 6Gb/s cable(s)
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (2 in 1)
3 x Thermal sensor cable pack(s)
1 x 12 in 1 ROG Cable Label(s)
1 x X-Socket 2 kit
1 x ROG Door Hanger(s)

OC Panel Kit:

- 1 x OC Panel(s)
- 1 x OC Panel 5.25-inch bay metal case
- 1 x OC Panel Cable(s)
- 1 x OC Panel screw pack(s)

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability

WfM2.0, DMI2.7, WOL by PME, PXE

Support Disc

Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
HomeCloud
ASUS Utilities

Form Factor

Extended ATX Form Factor
12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
