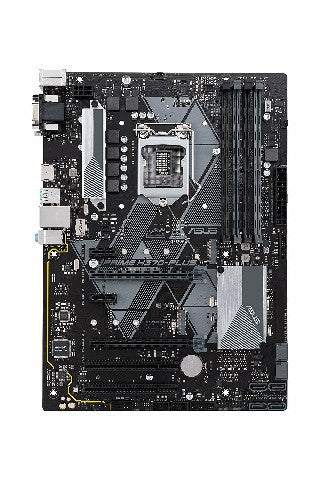

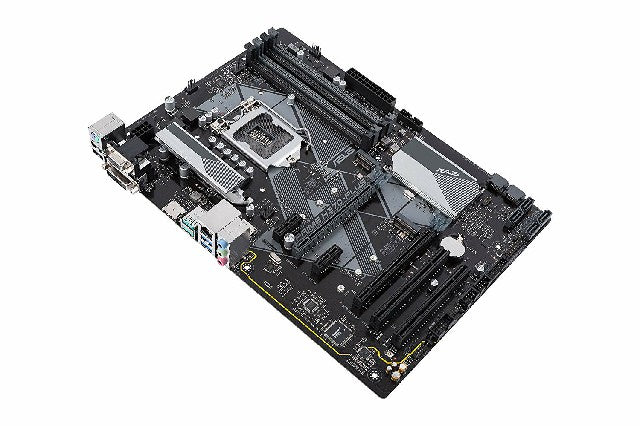

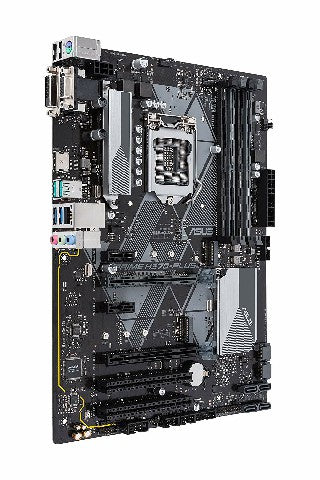

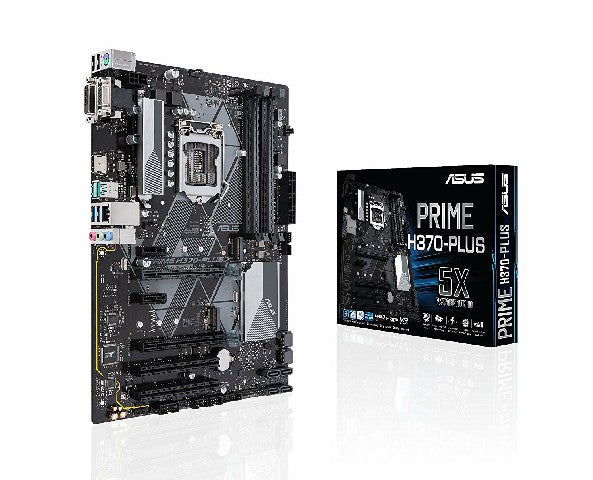

ASUS Prime H370-Plus LGA1151 (300 Series) Motherboard

Buy ASUS Prime H370-Plus LGA1151 (300 Series) Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center - server-grade IT management software.

ASUS Control Center is centralized IT management software designed to provide a convenient, effective, secure and cost-saving solution for enterprises, small and medium-sized businesses, and data centers in any type of industry. With the help of ASUS Control Center, your organization will be equipped to achieve success in even the most challenging modern IT environments.

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.

Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.

The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.

Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.

When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard

With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — twice as fast as standard USB 3.1 Gen 1.

Future-proof connectivity

USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

Speed up with onboard M.2

With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Ensures minimal crosstalk between audio paths.

Premium parts provide an immersive sound signature, with exceptional fidelity.

LED-illuminated control for PCIe slot

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

Complete your immersion

Prime 300 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime 300 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Intel® H370

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/D-Sub ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports up to 3 displays simultaneously

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

2 x PCIe 3.0/2.0 x1

2 x PCI

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1

1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)

6 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 4 at mid-board)

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: Premium components provide better power efficiency

- Optimem (Improved DDR4 stability)

- EPU

- AI Suite 3

- Ai Charger

- PC Cleaner

- File Transfer

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 2+

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS Q-Slot

- ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

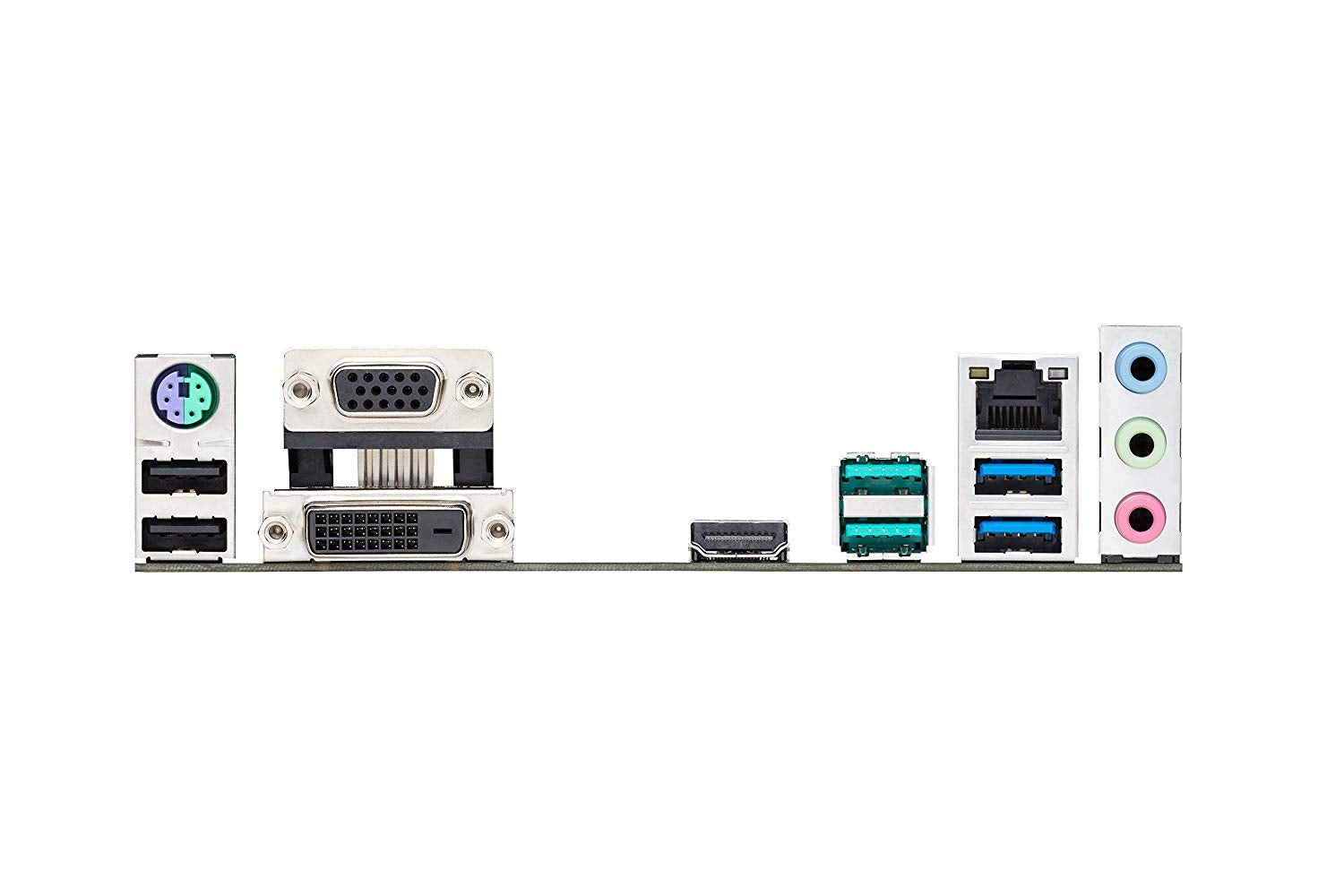

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps

2 x USB 3.1 Gen 1 (blue) up to 5Gbps

2 x USB 2.0

3 x Audio jack(s)

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x TPM header

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x COM port header

1 x Mono Out header

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x SCD (by region)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)

Windows® 10 64-bit

ATX Form Factor

12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm )

*1. When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
