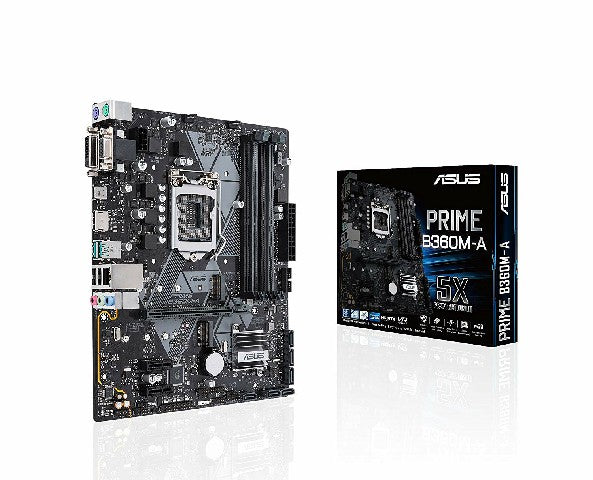

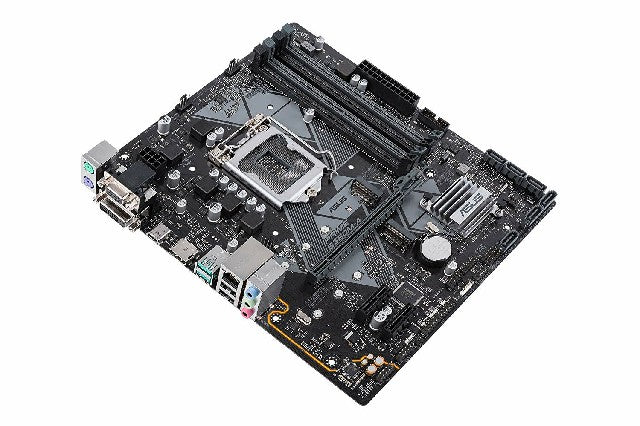

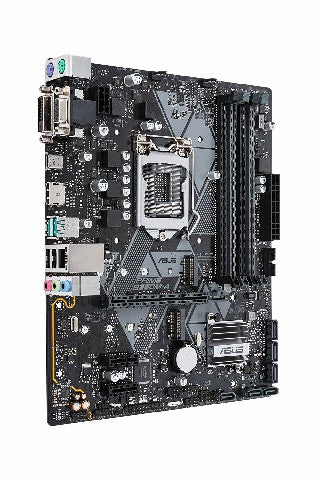

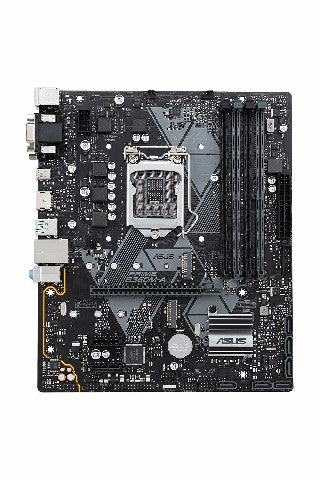

ASUS Prime B360M-A Motherboard

Buy ASUS Prime B360M-A Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.

Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.

The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.

Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.

When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard

With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — twice as fast as standard USB 3.1 Gen 1.

Future-proof connectivity

USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

Speed up with onboard M.2

With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Ensures minimal crosstalk between audio paths.

Premium parts provide an immersive sound signature, with exceptional fidelity.

Outshine the competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Complete your immersion

Prime 300 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime 300 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

The Intel® H310 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6Gbps ports, and 10Gbps M.2 and PCIe 2.0 lane-speed support, for faster data retrieval. Intel H310 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Intel® B360

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/RGB ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

1 x PCIe 3.0 x16 (x16 mode)

2 x PCIe 3.0/2.0 x1

1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

Intel® Optane™ Memory Ready

Realtek® RTL8111H, 1 x Gigabit LAN

ASUS LAN Guard

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)

3 x USB 3.1 Gen 1 up to 5Gbps port(s) (1 at back panel, , USB Type-CTM, 2 at mid-board)

6 x USB 2.0/1.1 port(s) (2 at back panel, +black, Type-A, 4 at mid-board)

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: Premium components provide better power efficiency

- Optimem (Improved DDR4 stability)

- EPU

- AI Suite 3

- Ai Charger

- PC Cleaner

- File Transfer

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert 2+

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

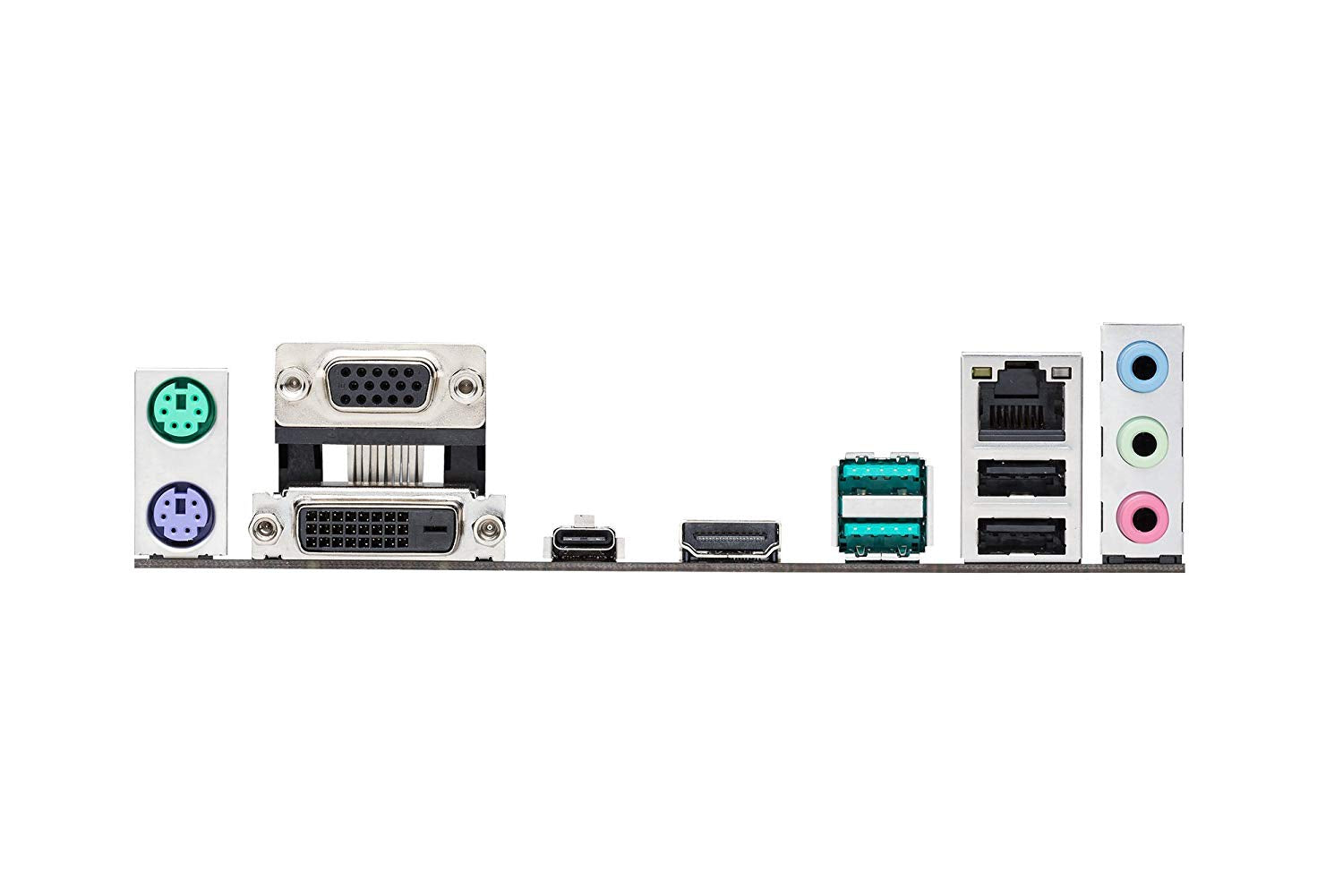

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps

1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps

2 x USB 2.0

1 x 8-channel Audio I/O

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices

1 x TPM header

1 x LPT header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x Chassis intrusion header

1 x Speaker connector

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x Supporting DVD

128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial

Presence Detect) memory information

WOL by PME, PXE

Windows® 10 64-bit

mATX Form Factor

9.6 inch x 8.1 inch ( 24.4 cm x 20.6 cm )

* When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.

**Only the M.2_2 supports Intel® IRST Technology and Intel® Optane memory
