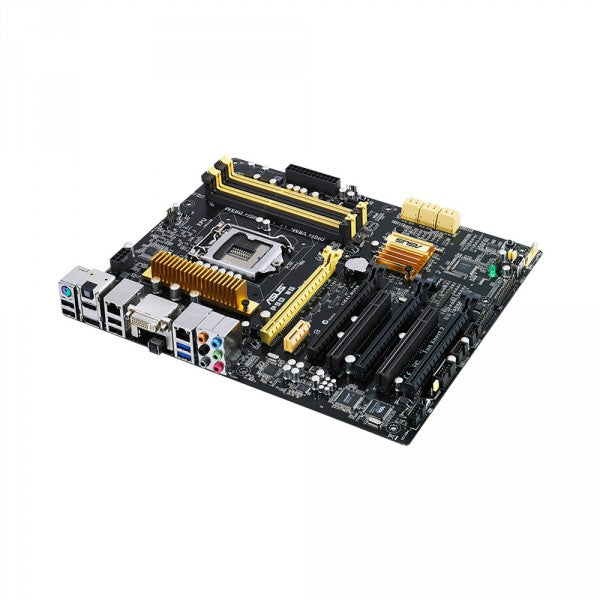

Asus P9D WS

Buy Asus P9D WS online for Rs.25800 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

Optimized & Certified for Professionals

The P9D WS motherboard with the new Intel® C226 chipset and support for Intel® Xeon® E3-1200 v3 and 4th generation Core™ processors. Fully ISV (Independent Software Vendor) certified, the P9D WS has been designed for workstation and high-end desktop usage, with wider memory compatibility. It features ASUS Dr. Power utility, which monitors power supply health to prevent sudden shutdowns, and extensive I/O including diverse display ports.

Specification

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Xeon® E3-1200/12x5 v3 series Processors
Supports Intel® 22 nm CPU
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® C226

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor *1
Multi-VGA output support : HDMI/DVI/DisplayPort ports
- Supports HDMI with max. resolution 4000 x 2000 @ 24 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 3200 x 2000 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports AMD 4-Way CrossFireX Technology

Expansion Slots

3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4)
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1 (x1 mode)
2 x PCI

Storage

Intel® C226 Chipset :

6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports

LAN

Intel® I210

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
IEEE 1394
1 x IEEE 1394a port(s)
(1 at mid-board)
USB Ports

Built-in Controller :

4 x USB 3.0/2.0 port(s) (2 at back panel, , 2 at mid-board)

Built-in Controller :

9 x USB 2.0/1.1 port(s) (4 at back panel, , 5 at mid-board)
Workstation Feature
G.P. Diagnosis Card bundled
Quick Gate: 1 x vertical USB 2.0 on board
ASUS Dr. Power

Special Features

ASUS EPU :

- EPU
- EPU switch

ASUS Power Design :

- 4 +2 Phase Power Design

ASUS Exclusive Features :

- MemOK!
- AI Suite 3
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash

ASUS Q-Design :

- ASUS Q-Connector

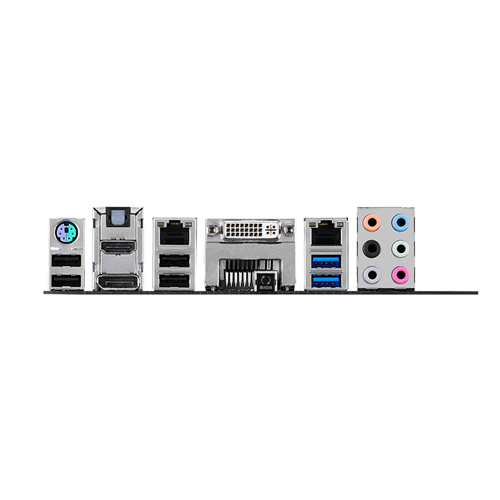

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-I
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

1 x AAFP connector
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x USB 2.0/1.1 vertical port(s)
1 x TPM header
1 x LPT1 header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU fan with PWM control
4 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s) (1 x 20 -pin)
1 x MemOK! button(s)

Accessories

User's manual
1 x G.P. Diagnosis card *2
I/O Shield
1 x COM port cable(s)
6 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB2.0 + 1394 bracket(s)

BIOS

64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Operating System

Fedora 18
Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit
RedHat® Enterprise Linux WS 6.3 32/64-bit
Open SUSE 12.3
Ubuntu Desktop 13.04
