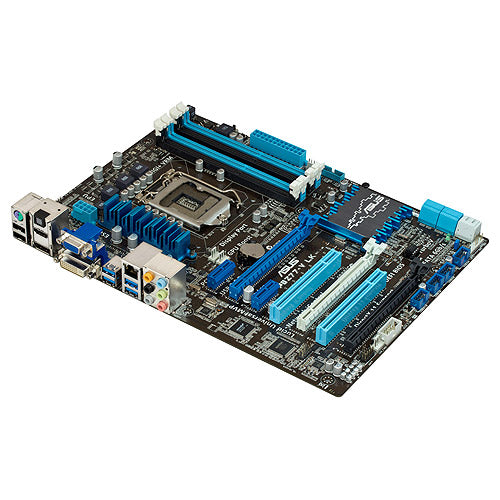

Asus P8Z77-V LK Motherboard
- Rs.18,800
- Rs.18,800
- Unit price
- per
Please hurry! Only 0 left in stock
- DIGI+ VRM Digital Power Design
- USB 3.0 Boost - Faster USB 3.0 Transmission with UASP(170%)
- Network iControl - Real-time Network Bandwidth Control
- LucidLogix® Virtu Universal MVP™ - Up to 60% Hybrid Graphics Boost!
- Quad-GPU SLI and Quad-GPU/3-Way CrossFireX Support!
- Windows 8 Ready – Assured Compatibility
Specifications
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list |
| Chipset | Intel® Z77 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 1696 MB Supports Intel® HD Graphics |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology *1 Supports AMD 3-Way CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *2 |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *3 1 x PCIe 2.0 x16 (x4 mode, black) *4 2 x PCIe 2.0 x1 2 x PCI |
| Storage |
Intel® Z77 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *5 |
| LAN | Realtek® 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| USB Ports |
Intel® Z77 chipset : *6 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z77 chipset : 10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board) ASMedia® USB 3.0 controller : *6 2 x USB 3.0 port(s) (2 at back panel, blue) |
| Overclocking Features |
Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading 4 + 1 + 1 Phase Power Design - ASUS DIGI+ VRM Utility TurboV GPU Boost ASUS Exclusive Features : - MemOK! - AI Suite II - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |

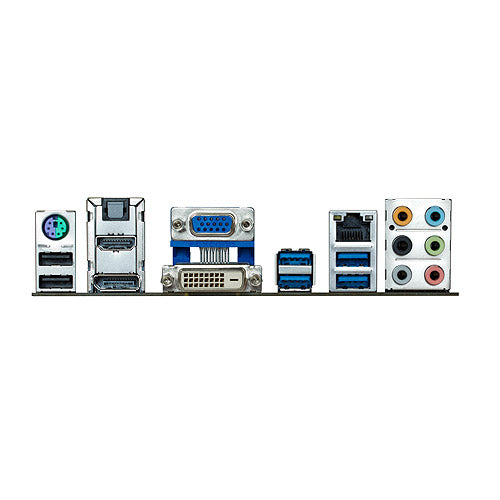

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x EPU switch(es) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s) |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | ATX Form Factor 12 inch x 8.8 inch ( 30.5 cm x 22.4 cm ) |
| Note | *1: Disable PCIe x1_2 slots and manual set the PCIe x16_3 to x4 mode in BIOS when configure CrossFireX™ with dual graphics cards. *2: LucidLogix Virtu MVP supports Windows 7 operating systems. *3: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. *4: The PCIe x16_3 slot shares bandwidth with PCIe x1_2 slot. The default setting is x2 mode. Go to the BIOS setup to change the settings. *5: Supports on Intel® Core™ processor family with Windows 7 operating systems. *6-1: The USB 3.0 ports only support Windows® 7 or later versions. *6-2: Supports ASUS USB 3.0 Boost UASP Mode. *7: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system. |
