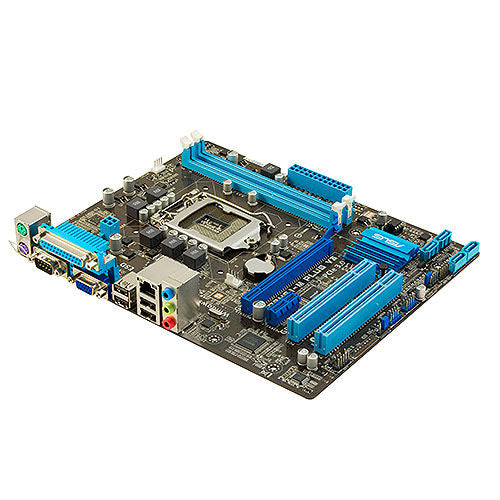

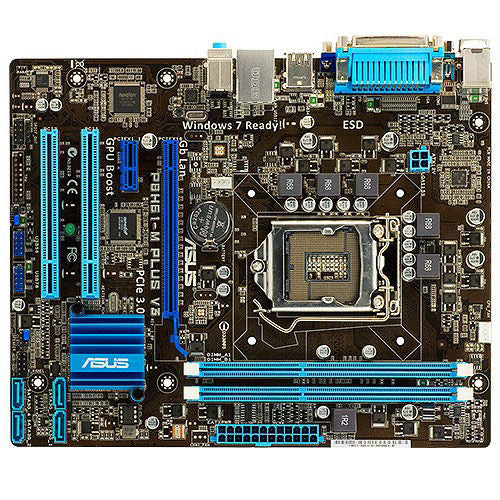

Asus P8H61-M Plus V3

Buy Asus P8H61-M Plus V3 online for Rs.5500 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

• PCIe 3.0 – Improve your graphic performance with incredible data speed.
• GPU BOOST - Go to the Limit with iGPU Level Up !
• UEFI BIOS (EZ Mode) - Flexible & Easy BIOS Interface
• Anti Surge - Full-time Power Guardian-Make System Free From Risk
• Windows 8 Ready – Assured Compatibility

Specification

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
* Refer to www.asus.com for CPU support list

Chipset

Intel® H61(B3)

Memory

2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Expansion Slots

1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x1
2 x PCI

Storage

Intel® H61(B3) chipset

4 x SATA 3Gb/s port(s), blue

LAN

Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *1

USB Ports

Intel® H61(B3) chipset

8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

Special Features

GPU Boost

ASUS Exclusive Features

- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS EZ DIY

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

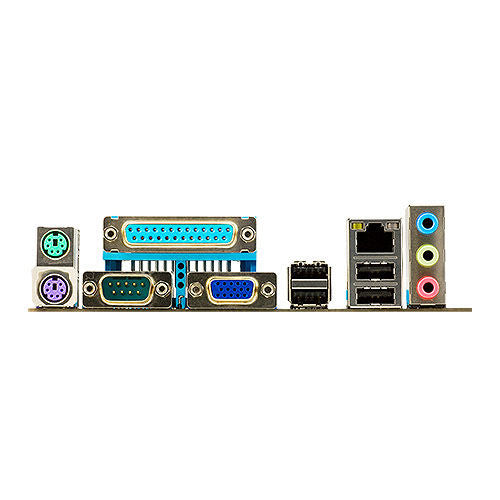

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)

Internal I/O Ports

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)

Accessories

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS
64 Mb Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS

Support Disc

Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor

mATX Form Factor
9.6 inch x 7.8 inch ( 24.4 cm x 19.8 cm )
