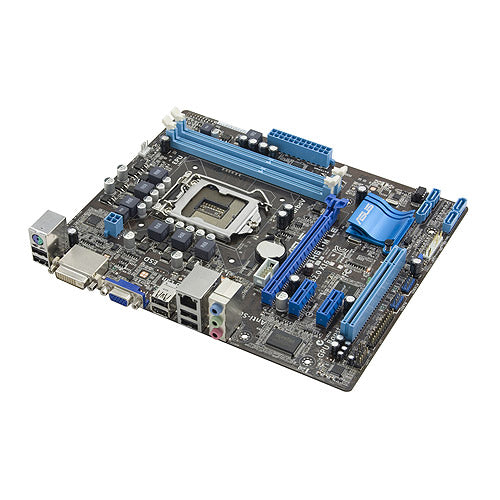

Asus P8H61-M LE Motherboard
- Rs.6,950
- Rs.6,950
- Unit price
- per
Please hurry! Only 0 left in stock
- GPU Boost - Instant iGPU Level Up!
- UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
- AI Suite II - One-stop Access to Innovative ASUS Features
- EPU - System Level Energy Saving
Specifications
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel® H61(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor VGA output support : RGB port - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Supports DirectX 10.1 |
| Expansion Slots | 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1 |
| Storage |
Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 887 8-Channel High Definition Audio CODEC *1 |
| USB Ports |
Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
| Overclocking Features |
Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite II - Ai Charger - Anti-Surge - Low EMI Solution - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |
| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) |
| Accessories | User's manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Note | *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
