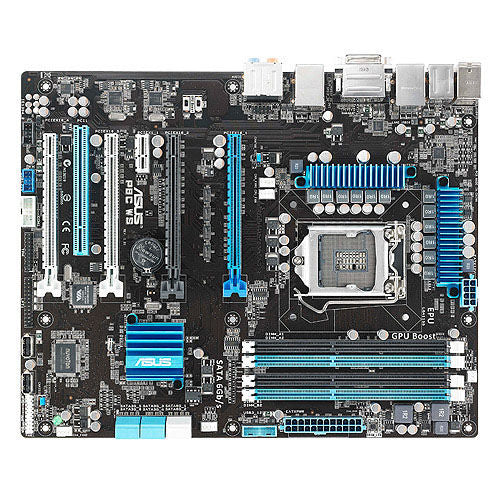

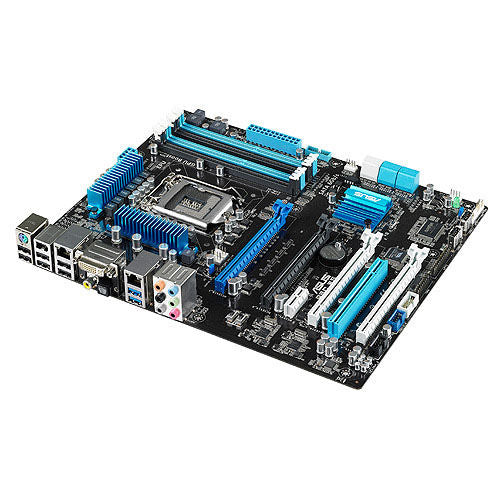

Asus P8C WS

Buy Asus P8C WS online for Rs.23800 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featutres

Optimized design delivers the best choice for workstation builds

• New Intel® workstation-specific C216 chipsets
• Independent Software Vendor (ISV) certification
• Diverse CPU and memory support - wide coverage for different needs
• Dual server-class Intel® Gigabit LAN lowers CPU utilization and improves throughput quality
• Complete USB 3.0 Integration: total four ports on front and rear panels
• Windows 8 Ready – Assured Compatibility
• Support Intel® Xeon Phi™ 3100 series (active fan SKU only) and NVIDIA Tesla K20C cards.

Specification

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Intel® Socket 1155 for Intel® E3-1200/12x5 v2 processors
Supports Intel® 32 nm CPU
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® C216

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor *1
Multi-VGA output support : DVI ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
2 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
1 x PCI

Storage

Intel® C216 chipset

2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

Intel® 82574L, 2 x Gigabit LAN Controller(s)
Support Teaming Technology

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature

- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
IEEE 1394
VIA® 6308S controller
2 x IEEE 1394a port(s)

USB Ports

Intel® C216 chipset

4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® C216 chipset

10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)
Workstation Feature
G.P. Diagnosis Card bundled
Quick Gate: 2 x vertical USB 2.0 on board

Special Features

ASUS EPU

- EPU
- EPU switch

ASUS Power Design

- 8 +2 Phase Power Design
GPU Boost with switch

ASUS Exclusive Features

- MemOK!
- AI Suite II
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert

ASUS EZ DIY

- ASUS CrashFree BIOS 3
- ASUS EZ Flash

ASUS Q-Design

- ASUS Q-Connector

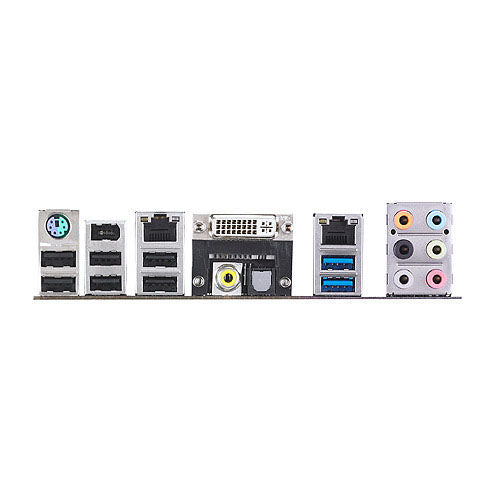

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-I
1 x IEEE 1394a
2 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Coaxial S/PDIF out
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x Vertical USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel connector(s) (1 x 20 -pin)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! button(s)

BIOS

64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Operating System

Fedora 16
Windows® Server 2008 R2 Enterprise
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit
Windows® XP 32/64-bit
RedHat® Enterprise Linux WS 6.2 32/64-bit
Open SUSE 12.1
Ubuntu Desktop 12.04

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
