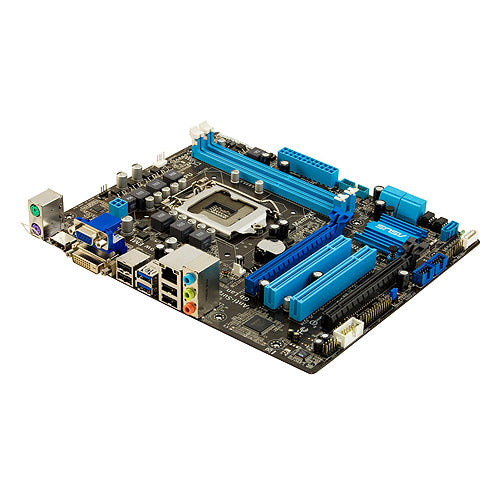

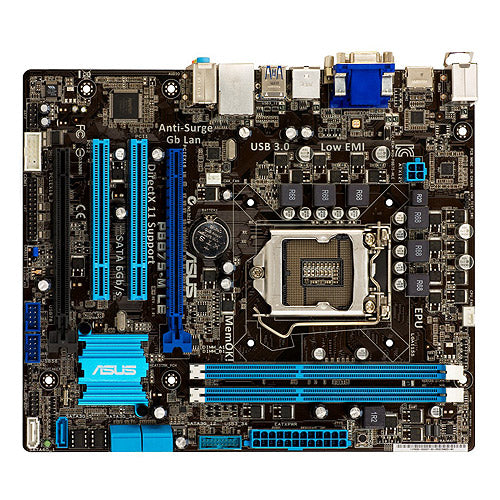

Asus P8B75-M LE Motherboard
- Rs.10,300
- Rs.10,300
- Unit price
- per
Please hurry! Only 0 left in stock
- ASUS UEFI BIOS – Experience the most friendly BIOS interface ever.
- GPU Boost – Enjoy great graphic performance with your iGPU.
- LucidLogix® Virtu MVP
- PCIe 3.0 – Improve your graphic performance with incredible data speed.
- SATA 6G / USB 3.0 – The latest data transfer technology.
- Windows 8 Ready – Assured Compatibility
Specifications
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® B75 |
| Memory | 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * 1600MHz and higher frequency is supported by Intel® 3rd generation processors. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1696 MB |
| Multi-GPU Support | Supports LucidLogix® Virtu™ MVP Technology *1 |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 1 x PCIe 2.0 x16 (x4 mode) 2 x PCI |
| Storage |
Intel® B75 chipset : 5 x SATA 3Gb/s port(s), blue 1 x SATA 6Gb/s port(s), gray |
| LAN | Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s) |
| Audio | VIA VT1708S 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
| USB Ports |
Intel® B75 chipset : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) Intel® B75 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) |
| Special Features |
ASUS EPU : - EPU GPU Boost ASUS Exclusive Features : - MemOK! - AI Suite II - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert - ASUS Q-Fan 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |

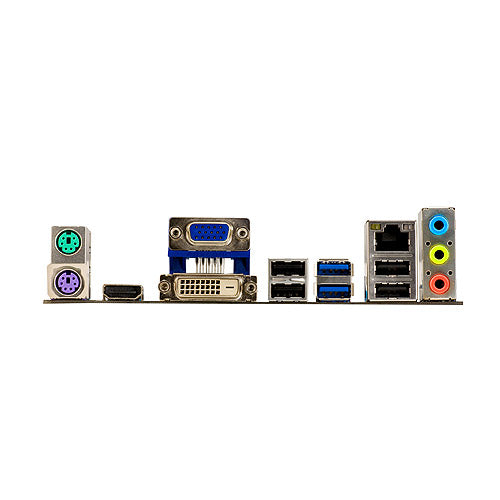

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 1 x SATA 6Gb/s connector(s) 5 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x MemOK! button(s) |
| Accessories | User's manual I/O Shield 1 x SATA 3Gb/s cable(s) 1 x SATA 6Gb/s cable(s) |
| BIOS | 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | uATX Form Factor 9.6 inch x 8 inch ( 24.4 cm x 20.3 cm ) |
| Note | *1: LucidLogix Virtu MVP supports Windows 7 operating systems. *2: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system. |
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
