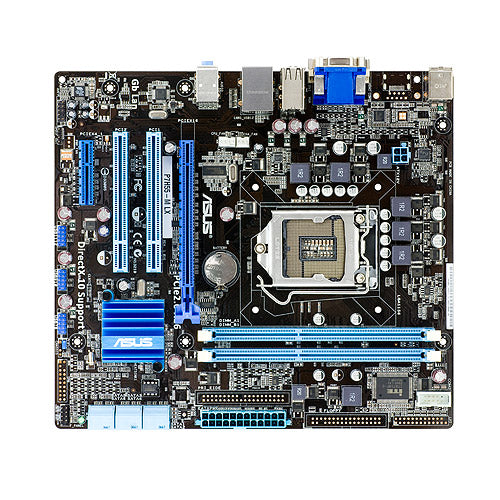

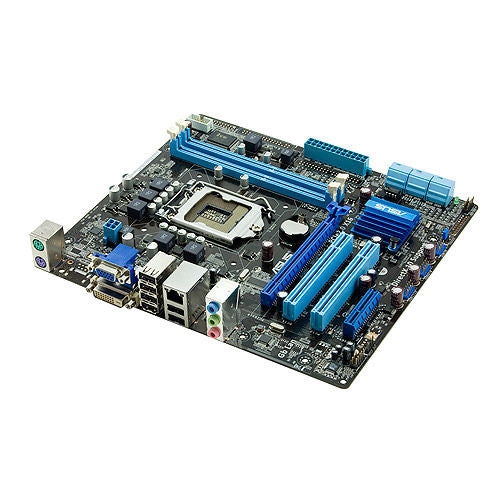

Asus P7H55-M LX

Buy Asus P7H55-M LX online for Rs.6700 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featutres

OThe Best Cost Performance H55 Solution

• Intel LGA1156 Platform
• Intel® H55 Express Chipset
• Legacy features For Computing Needs
• Full-time Power Guardian
• Touched Design

Specification

CPU

Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium®
Support Intel next generation 32nm Multi-Core CPU

Chipset

Intel® H55

Memory

2 x DIMM, Max. 8 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCI

VGA

Multi-VGA Output Support: DVI-D and RGB Ports
Supports Microsoft® DirectX 10
D-SUB with Max. Resolution : 2048 X 1536 @75Hz
DVI with Max. Resolution : 1920 X 1200 @60Hz

Storage

Intel® H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports

LAN

Realtek 8112L Gigabit LAN PCIe controller

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC
- Support Multi-streaming

USB

12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS Quiet Thermal Solution
- ASUS Q-Fan 2

ASUS EZ DIY

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS AI NET 2
ASUS Anti-Surge

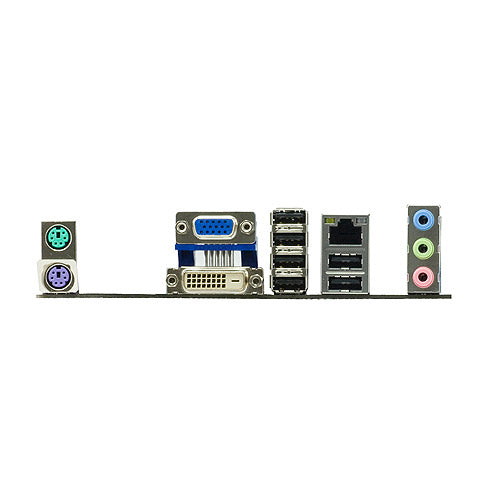

Back Panel I/O Ports

1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
6 x USB 2.0/1.1
3 -Channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
COM connector
System Panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector

BIOS

64 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a
Manageability
WOR by Ring, WOL, PXE, PME Wake up

Accessories

User's manual
1 x I/O Shield
2 x SATA cable(s)
1 x Support DVD

Support Disc

Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Form Factor

uATX Form Factor
9.6 inch x 8.6 inch ( 24.4 cm x 22.9 cm )
