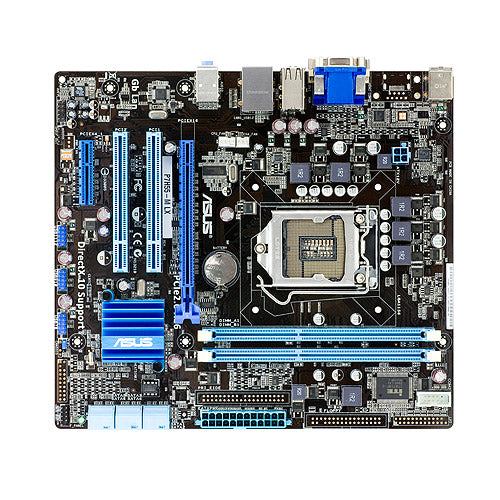

Asus P7H55-M LX Motherboard
- Rs.7,600
- Rs.7,600
- Unit price
- per
Please hurry! Only 0 left in stock
- Intel LGA1156 Platform
- Intel® H55 Express Chipset
- Legacy features For Computing Needs
- Full-time Power Guardian
- Touched Design
Specifications
| CPU | Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium® Support Intel next generation 32nm Multi-Core CPU |
| Chipset | Intel® H55 |
| Memory | 2 x DIMM, Max. 8 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory Dual Channel memory architecture When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. |
| Expansion Slots | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x4 2 x PCI |
| VGA | Multi-VGA Output Support: DVI-D and RGB Ports Supports Microsoft® DirectX 10 D-SUB with Max. Resolution : 2048 X 1536 @75Hz DVI with Max. Resolution : 1920 X 1200 @60Hz |
| Storage |
Intel® H55 Express Chipset built-in 6 xSATA 3.0 Gb/s ports |
| LAN | Realtek 8112L Gigabit LAN PCIe controller |
| Audio | VIA VT1708S 8-Channel High Definition Audio CODEC - Support Multi-streaming |
| USB | 12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel) |
| ASUS Unique Features |
ASUS Quiet Thermal Solution - ASUS Q-Fan 2 ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS AI NET 2 ASUS Anti-Surge |

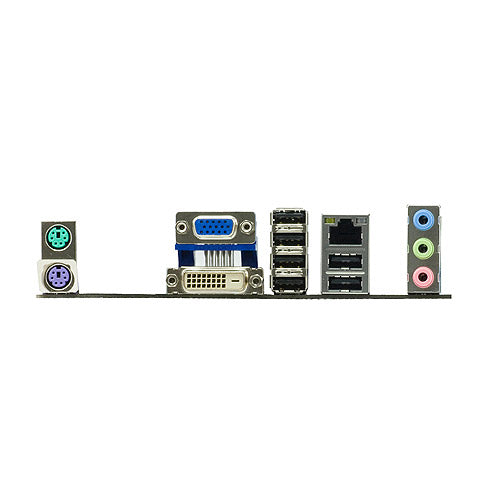

| Back Panel I/O Ports | 1 x DVI 1 x D-Sub 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x LAN(RJ45) port 6 x USB 2.0/1.1 3 -Channel Audio I/O |
| Internal I/O Connectors | 3 x USB connectors support additional 6 USB ports 6 x SATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x S/PDIF Out connector COM connector System Panel connector 1 x 24-pin ATX Power connector 1 x 4-pin ATX 12V Power connector 1 x Front panel audio connector |
| BIOS | 64 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a |
| Manageability | WOR by Ring, WOL, PXE, PME Wake up |
| Accessories | User's manual 1 x I/O Shield 2 x SATA cable(s) 1 x Support DVD |
| Support Disc | Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update |
| Form Factor | uATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x 22.9 cm ) |
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
