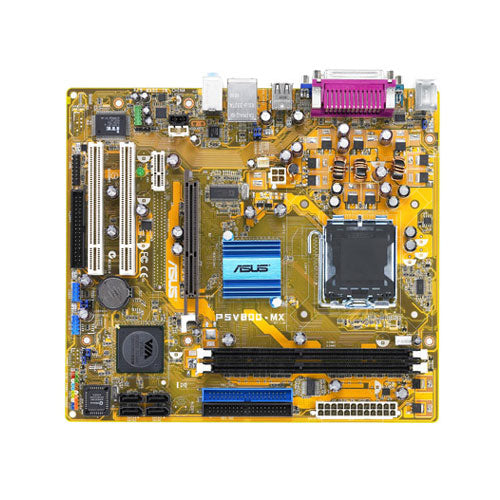

Asus P5V800-MX Motherboard
- Rs.3,550
- Rs.3,550
- Unit price
- per
Please hurry! Only 0 left in stock
- Intel LGA775 Pentium 4 CPU
- Dual-Core CPU
- VIA P4M800 Chipset
- PCI Express x 1
- DDR 400/333
- SATA II (RAID0, RAID1, RAID0+1& JBOD)
- High Definition Audio
Specifications
Specifications
| CPU | LGA775 socket for Pentium D/Pentium 4/Celeron CPU Compatible with Intel FMB 05B/05A and 04B/04A processors Intel Hyper-Threading Technology ready (Note: Due to chipset limitation, the Intel Enhanced Intel SpeedStep Technology, C1E, and TM2 are not supported in this model) |
| Chipset | VIA P4M800 VIA VT8251 |
| Front Side Bus | 800 / 533 MHz |
| Memory | 2 x 184-pin DIMM sockets support max. 2GB DDR 400/333 non-ECC unbuffered memory |
| Expansion Slots | 1 x AGP8X/4X (1.5V only) 1 x PCI Express x1 2 x PCI, PCI 2.2 |
| VGA | Integrated VIA UniChrome Graphics, up to 64MB shared memory |
| Storage/RAID | VIA VT8251 South Bridge: *2 x UltraDMA 133/100 *4 x Serial ATA 3Gb/s with RAID 0, 1, 0+1 & JBOD function |
| LAN | Realtek RTL8201CL 10/100 LAN Controller |
| Audio | ADI AD1986A HD Audio 6-channel CODEC Jack-Sensing Technology |
| USB | Max. 8 USB2.0 ports |
| Special Features | Power Loss Restart CrashFree BIOS 2 ASUS Q-Fen ASUS EZ Flash |
| BIOS | 4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3 |
| Manageability | WOL by PME,WOR by PME, Chassis Intrusion, PXE |
| Back Panel I/O Ports | 1 x Parallel 1 x COM Port 1 x VGA Port 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x RJ45 4 x USB 2.0/1.1 6-Channel Audio I/O |
| Internal I/O Connectors | 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports 1 x GAME/MIDI port connector 1 x S/PDIF out connector CPU / Chassis fan connectors Front panel High Definition Audio connector CD / AUX audio-in connector 24-pin ATX Power connector 4-pin ATX 12V Power connector Chassis intrusion System panel connector |
| Support Disc | Drivers ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM version) |
| Accessories | 1 x Serial ATA / Power cable 1 x UltraDMA 133/100/66 cable 1 x FDD cable 1 x I/O Shield User's manual |
| Form Factor | mATX Form Factor, 9.6”x 8.6”(24.5cm x 21.8cm) |
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
