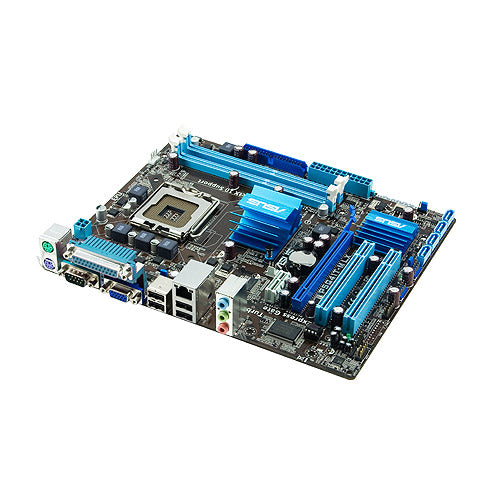

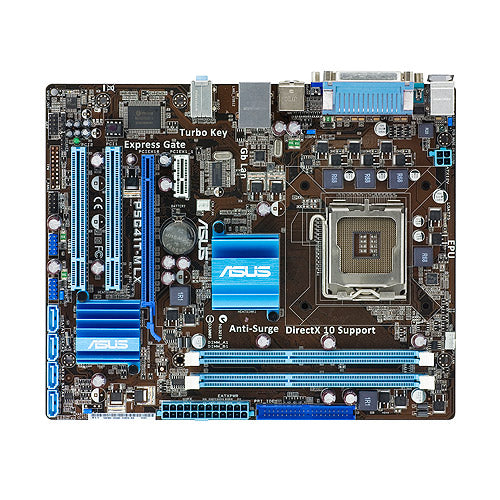

Asus P5G41T-M LX Motherboard
- Rs.5,150
- Rs.5,150
- Unit price
- per
Please hurry! Only 0 left in stock
- FSB 1333/1066/800MHz
- Dual-channel DDR3 1333(OC)/1066/800
- ASUS Anti-Surge
- ASUS Turbo Key
- DirectX10 support
- Express Gate & EPU
Specifications
| CPU | Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors Compatible with Intel® 05B/05A/06 processors Support Intel® 45nm Multi-Core CPU *Refer to www.asus.com for Intel CPU support list |
| Chipset | Intel® G41 /ICH7 |
| Front Side Bus | 1333/1066/800 MHz |
| Memory | 2 x240-pin DIMM, Max. 8 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory Dual Channel memory architecture ** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List) *** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. |
| Expansion Slots | 1 x PCIe x16 1 x PCIe x1 2 x PCI |
| VGA | Integrated Intel GMA X4500 graphics Maximum shared memory of 1G Supports RGB with max. resolution 2048 x 1536 (@75Hz) Supports Microsoft® DirectX® 10 |
| Storage |
Southbridge 1 xUltraDMA 100/66/33 4 xSATA 3 Gb/s ports |
| LAN | Qualcomm Atheros Gb LAN |
| Audio | ALC887 8-Channel AUDIO CODEC *Choose the chassis with HD audio module in front panel to support 8-Channel audio output Supports Jack-detect and Multi-Streaming teconologies Supports S/PDIF out interface |
| USB | 8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel) |
| ASUS Unique Features | ASUS MyLogo 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Fan ASUS Anti-Surge ASUS EPU-L ASUS Express Gate Turbo Key AI NET2 |
| Overclocking Features |
SFS (Stepless Frequency Selection) - FSB tuning from 200MHz to 800MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall) |

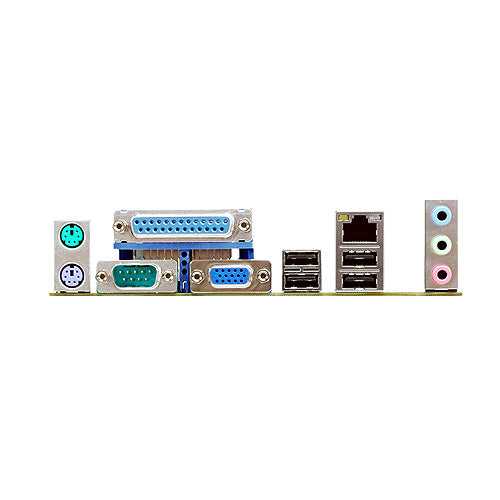

| Back Panel I/O Ports | 1 x D-Sub 1 x Parallel port 1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x LAN(RJ45) port(s) 4 x USB 2.0/1.1 1 x COM port 3 x Audio jacks |
| Internal I/O Connectors | 2 x USB connectors support additional 4 USB 2.0 ports 1 x IDE connector 4 x SATA connectors 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x High Definition front panel audio connector 1 x S/PDIF Out connector 1 x System Panel 1 x Internal Speaker connector 24-pin EATX power connector 4-pin ATX 12V Power connector |
| BIOS | 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5 |
| Accessories | User's manual 1 x UltraDMA 133/100/66 cable 2 x SATA cable(s) I/O Shield |
| Support Disc | Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update |
| Form Factor | uATX Form Factor 9.6 inch x 7.9 inch ( 24.4 cm x 20.1 cm ) |
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
