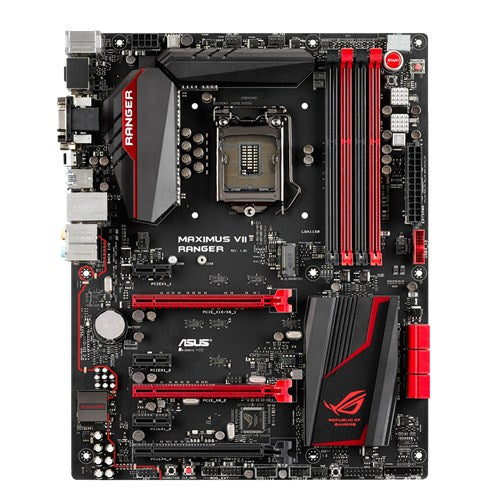

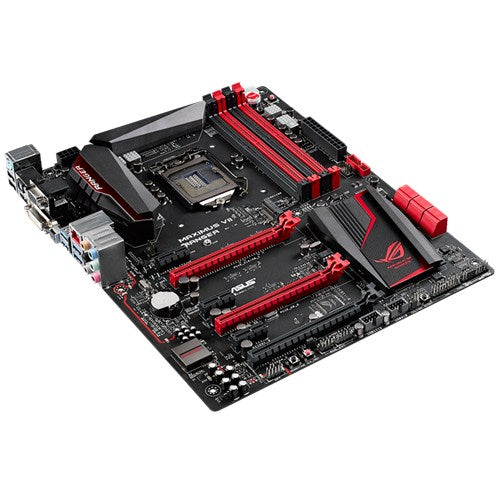

Asus Maximus VII Ranger

Buy Maximus VII Ranger online for Rs.23800 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

High-value entry-level ROG gaming ATX-board with superb specifications and game-boosting features

• Intel® LGA1150 4th, New 4th & 5th-Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
• Intel® Z97 Express Chipset with M.2 support (up to 10Gb/s data-transfer)
• Intel™ Ethernet + LANGuard + GameFirst III –This is game networking taken to the next level. This is ROG
• SupremeFX 2014 + Sonic Radar II – New and improved audio that’s beyond compare
• KeyBot + TrueVolt USB - Instant keyboard upgrade and rock-steady 5V USB supply
• USB UEFI BIOS and Secure Erase - Award-winning simplicity and factory-fresh conditioning for superb performance

Specification

CPU

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® Z97

Memory

4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

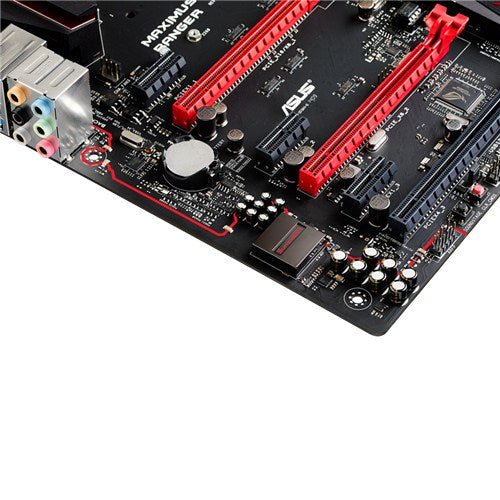

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
1 x PCIe 2.0 x16 (x4 mode, black) *1
3 x PCIe 2.0 x1

Storage

Intel® Z97 chipset :

1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
6 x SATA 6Gb/s port(s), red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2

LAN

Intel® I218V, 1 x Gigabit LAN Controller(s)

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ELNA® premium audio capacitors

Audio Feature :

- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II

USB Ports

Intel® Z97 chipset *3

6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)

Intel® Z97 chipset

7 x USB 2.0 port(s) (2 at back panel, , 5 at mid-board)

ROG Exclusive Features

Extreme Engine Digi+ III

- NexFET™ Power Block MOSFET
- New Alloy Chokes
- 10K Black Metallic Capacitors

KeyBot

- CPU Level Up
- XMP
- Direct Key
ROG RAMDisk
GameFirst III
Extreme Tweaker

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 2, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS Exclusive Features

- AI Suite 3
- Ai Charger
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker

ASUS EZ DIY

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

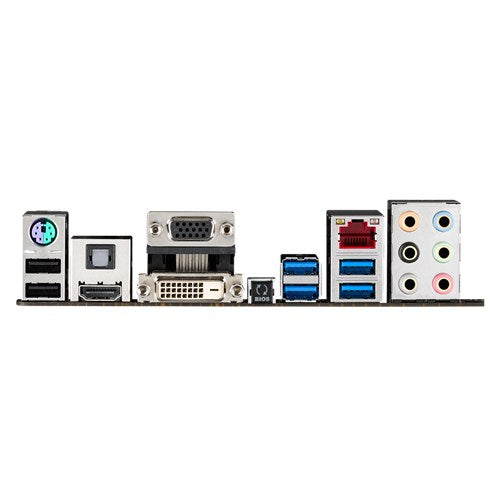

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
0 x Power-on button(s)
0 x Reset button(s)
1 x Clear CMOS jumper(s)
0 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button

Accessories

User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s)

BIOS

64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Operating System

Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Management Solution

WfM 2.0, DMI 2.7, WOL by PME, PXE
