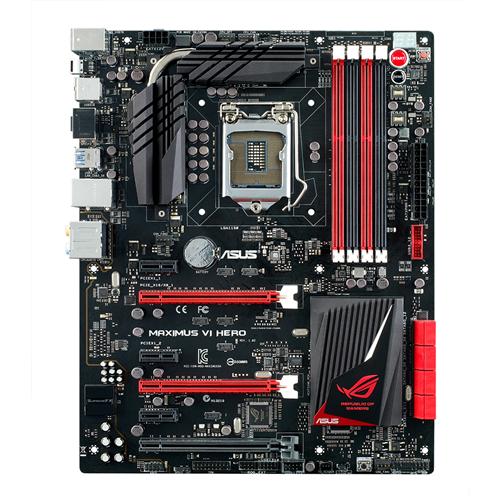

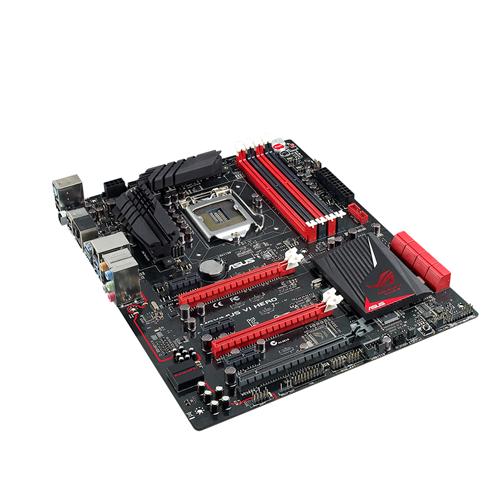

Asus Maximus VI Hero

Buy Asus Maximus VI Hero online for Rs.25800 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

More accessible while packing major ROG features

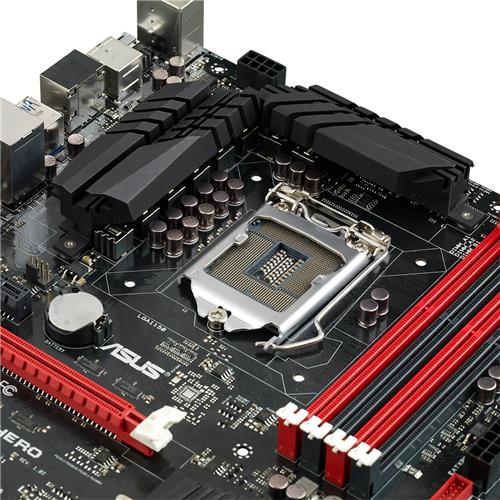

• LGA1150 socket for 4th Generation Intel®Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors
• Intel® Z87 Express Chipset
• SupremeFX - Supremacy through discrete-caliber audio
• Sonic Radar - Scan and detect to dominate
• Extreme Engine Digi+ III - Hardcore power delivery with premium components
• GameFirst II + Intel LAN - Put Your Frags First

Specification

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® Z87

Memory

4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
1 x PCIe 2.0 x16 (black) *1
3 x PCIe 2.0 x1 *2

Storage

Intel® Z87 chipset :

6 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3

ASMedia® ASM1061 controller : *4

2 x SATA 6Gb/s port(s), red

LAN

Intel® I217V, 1 x Gigabit LAN Controller(s)

Audio

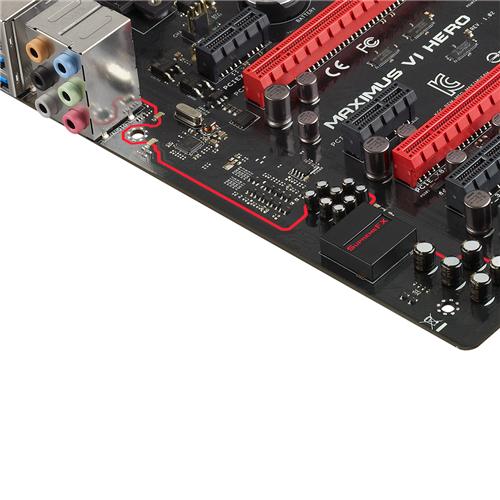

ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature

- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Blu-ray audio layer Content Protection
- Sonic Radar
- DTS Connect
- Optical S/PDIF out port(s) at back panel

USB Ports

Intel® Z87 chipset : *5

6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)

Intel® Z87 chipset : *6

8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

ROG Exclusive Features

Extreme Engine Digi+ III :

- 8 + 2 phase power design
- NexFET™ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors

UEFI BIOS features :

- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
GameFirst II
Extreme Tweaker

Special Features

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
CPU Level Up

ASUS Exclusive Features :

- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker

ASUS EZ DIY :

- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

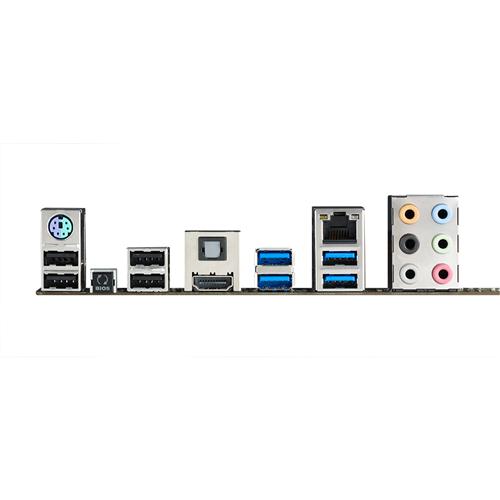

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x ROG extension (ROG_EXT) header(s)

Accessories

User's manual

I/O Shield

6 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s)

BIOS

64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers
ROG GameFirst II
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
