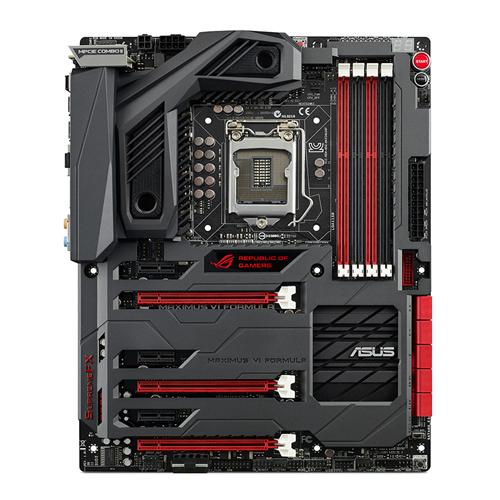

Asus Maximus VI Formula

Buy Asus Maximus VI Formula online for Rs.38600 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

Unbeatable Z87 board with double-sided ROG Armor, 23°C-cooler CrossChill and 120dB SNR with plus 600ohm-headphone amplifier

• LGA1150 socket for 4th Generation Intel®Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors
• Intel® Z87 Express Chipset
• CrossChill - Great on air. Cooler with water
• SupremeFX Formula - Amazing 120dB signal-to-noise ratio with integrated 600ohm-headphone amplifier
• ROG Armor - Style, strength, and cooling in one
• Sonic Radar - Scan and detect to dominate
• mPCIe Combo II With Wi-Fi - Extra connections with new gen support
• Extreme Engine Digi+ III - Hardcore power delivery with premium components
• GameFirst II + Intel LAN - Put Your Frags First
• RAMDisk - Double up on speed with RAM


Specification

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® Z87

Memory

4 x DIMM, Max. 32GB, DDR3 3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *1
1 x mini-PCIe 2.0 x1 *2
3 x PCIe 2.0 x1

Storage

Intel® Z87 chipset : *3

6 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4

Intel® Z87 chipset :

1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
Support M.2 (NGFF) Type 2242 SSD card (22mm x 42mm), Support PCI express 2.0 x1 and SATA 6Gb/s standards

ASMedia® ASM1061 controller : *5

4 x SATA 6Gb/s port(s), red

LAN

Intel® I217V, 1 x Gigabit LAN Controller(s)
Wireless Data Network
Wi-Fi 802.11a/b/g/n/ac*6
Supports dual band frequency 2.4/5 GHz

Bluetooth

Bluetooth V4.0
Bluetooth V3.0+HS

Audio

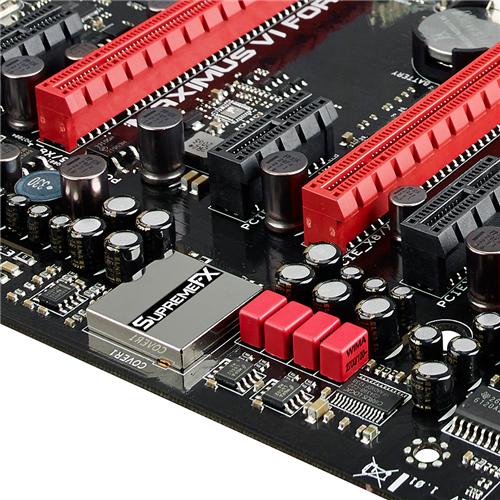

ROG SupremeFX Formula 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming
- SupremeFX Shielding Technology
- Cirrus Logic® CS4398 DAC: 120 dB SNR, -107 dB THD+N (Max. 192 kHz/ 24 -bit)
- TI 6120A2 high fidelity headphone amplifier
- WIMA® film capacitors
- ELNA® premium audio capacitors
- High-fidelity audio OP AMP(s)
- Differential circuit design

Audio Feature

- Blu-ray audio layer Content Protection
- Sonic Radar
- DTS Connect
- Optical S/PDIF out port(s) at back panel

USB Ports

Intel® Z87 chipset : *7

4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® Z87 chipset : *8

8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

ASMedia® USB 3.0 controller :

4 x USB 3.0 port(s) (4 at back panel, blue)

ROG Exclusive Features

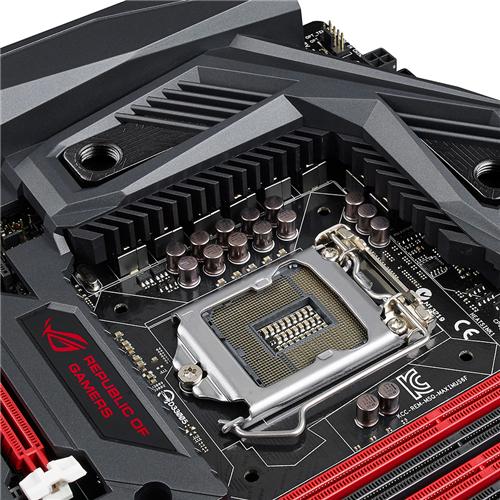

CrossChill (Hybrid air and liquid cooling)*9

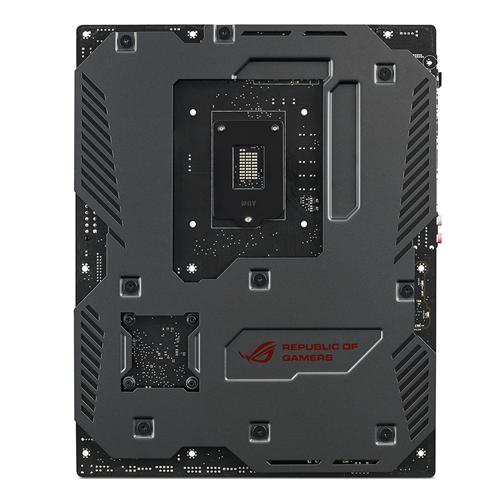

ROG Armor (including top cover and SECC steel backplate)*10
mPCIe Combo II (mPCIe/M.2 combo card)

Extreme Engine Digi+ III :

- 8 + 2 phase power design
- NexFET™ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ProbeIt

UEFI BIOS features :

- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
GameFirst II
Extreme Tweaker

Special Features

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
CPU Level Up
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Media Streaming Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
- Wi-Fi GO! & NFC Remote for portable Smartphone/Tablet, supporting iOS & Android systems

ASUS Exclusive Features :

- GPU Boost
- USB BIOS Flashback
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker

ASUS EZ DIY :

- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

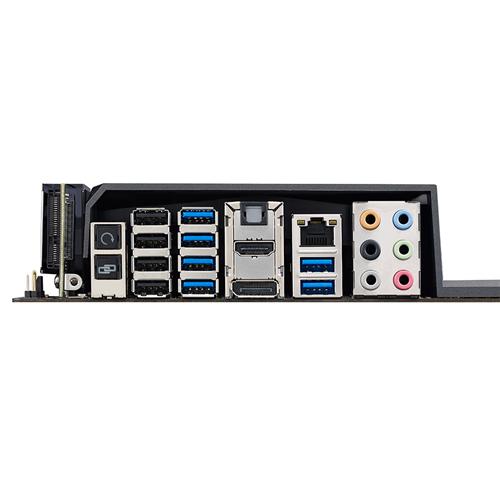

Back I/O Ports

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
3 x Optional Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
10 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x FastBoot switch(es)
1 x ROG extension (ROG_EXT) header(s)
1 x mPCIe Combo II connector(s)

Accessories

User's manual
I/O Shield
8 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo II card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0/3.0+HS module
1 x ROG Door Hanger(s)

BIOS

64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers
ROG GAMEFIRST II
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
