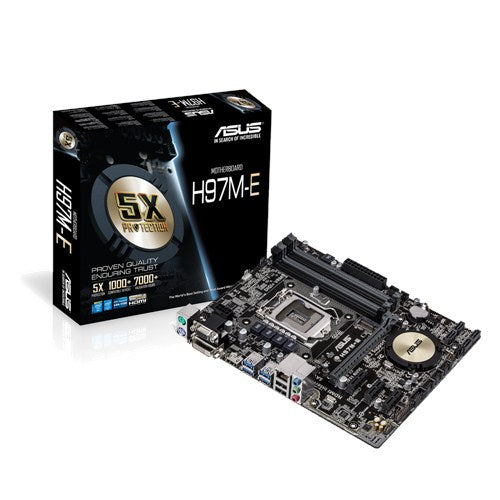

Asus H97M-E

Buy Asus H97M-E online for Rs.11400 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Intel products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

High-value H97 micro-ATX delivers enduring 5X Protection, high-clarity Crystal Sound 2 and M.2 for everyday multimedia enjoyment

•     Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
•     Crystal Sound 2 - Flawless audio that makes you part of the game
•     Speed up your system with lightning-fast 10Gb/s M.2
•     Media-acclaimed UEFI BIOS with new EZ Tuning Wizard
•     Fan Xpert 2+ - Ultimate cooling and quietness
•     ASUS HomeCloud - A digital PC hub perfect for sharing and home theater

Specifications

CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list


Chipset
    Intel® H97


Memory
    4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.


Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously


Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    3 x PCIe 2.0 x1
    Storage
    Intel® H97 chipset :
    4 x SATA 6Gb/s port(s), gray
    1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *1


LAN
    Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
    Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC featuring Crystal Sound 2*2
    - Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Audio amplifier: Provides the highest-quality sound for headphone and speakers
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Unique de-pop circuit: Reduces start-up popping noise to audio outputs


USB Ports
    Intel® H97 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® H97 chipset :
    8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)


Special Features
    ASUS 5X Protection :
    - ASUS DIGI+ VRM - 4 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - GPU Boost
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - USB 3.0 Boost
    - Disk Unlocker
    - Crystal Sound 2
    Interactive HomeCloud
    - Media Streamer
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM


Operating System Support
    Windows® 8.1
    Windows® 8
    Windows® 7
    Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    2 x USB 2.0
    3 x Audio jack(s)
    Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x M.2 Socket 3 for M Key, type 2260/2280 devices
    1 x TPM header
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)
    1 x Clear CMOS jumper(s)
    Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information


Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
    Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
    Form Factor
    mATX Form Factor
    9.6 inch x 7.8 inch ( 24.4 cm x 19.8 cm )
    Note
    *1:These functions will work depending on the CPU installed.
    *2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Warranty

3 year local warranty
