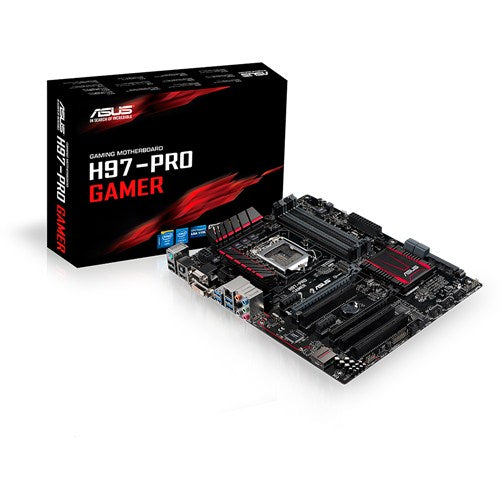

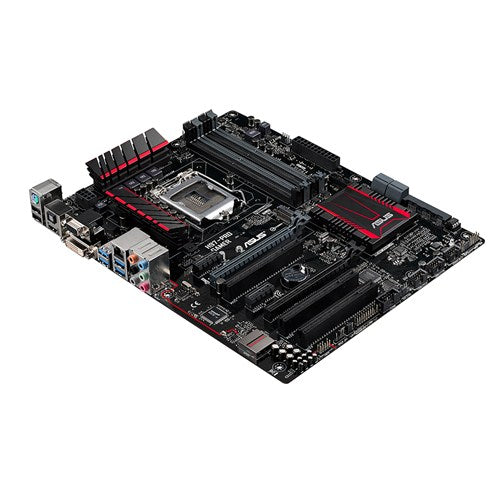

Asus H97 Pro-Gamer

Buy Asus H97 Pro-Gamer online for Rs.15400 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

Feature-loaded H97 gaming board with SupremeFX audio, Intel LAN, and M.2 & SATA Express for greater and faster enjoyment

• LGA1150 socket for the 4th, New 4th & 5th Generation Intel® Core™ i7/ Core™ i5 / Core™ i3, Pentium®, and Celeron® processors
• Intel® H97 Express Chipset
• Dual DDR3 1600 support
• SupremeFX - Flawless audio that makes you part of the game
• Intel Gigabit Ethernet & GameFirst II - Networking that just goes faster
• Sonic Radar ll - Scan and detect to dominate
• M.2 & SATA Express – Top-speed transfers for faster gaming
• Gamer's Guardian - for real-world protection

Specification

CPU

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® H97

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe x1
3 x PCI

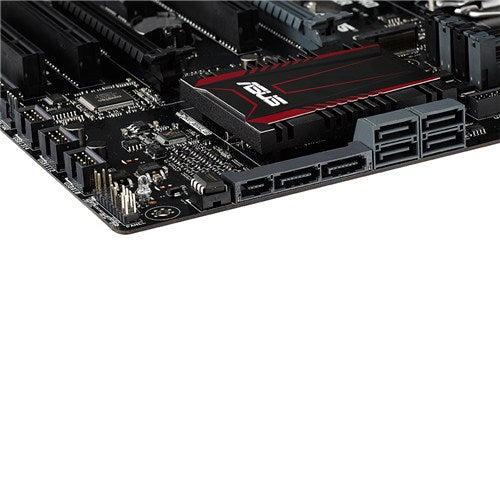

Storage

Intel® H97 chipset :

1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3

LAN

Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST II
Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance

Audio

SupremeFX 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
- High-fidelity audio OP AMP(s)

Audio Feature :

- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

USB Ports

Intel® H97 chipset :

6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)

Intel® H97 chipset :

8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)

ROG Exclusive Features

GameFirst II

Special Features

ASUS Dual Intelligent Processors 2 with DIGI+ VRM :

- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration

Gamer's Guardian:

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
- DIGI+ VRM

ASUS TPU :

- Auto Tuning
- TurboV
- GPU Boost without switch

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker

Interactive HomeCloud

- Media Streamer

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

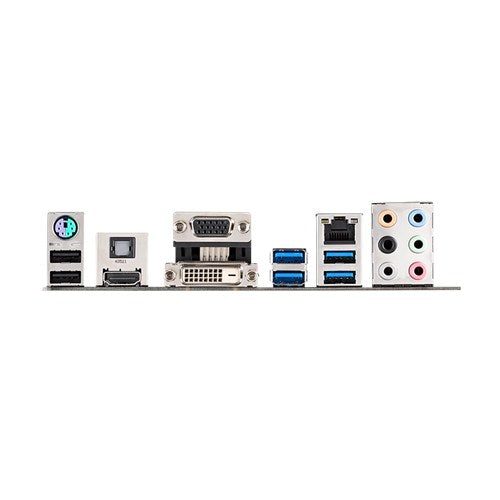

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
6 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)

Accessories

User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
