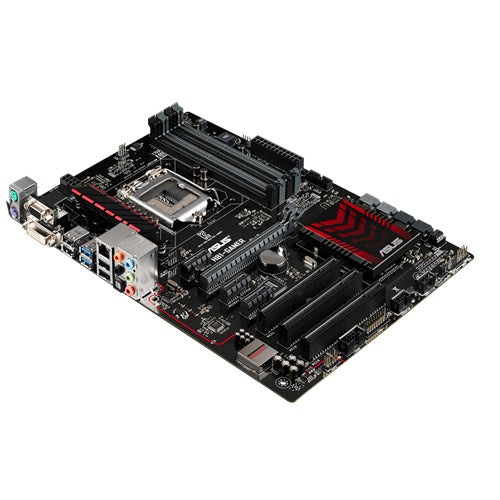

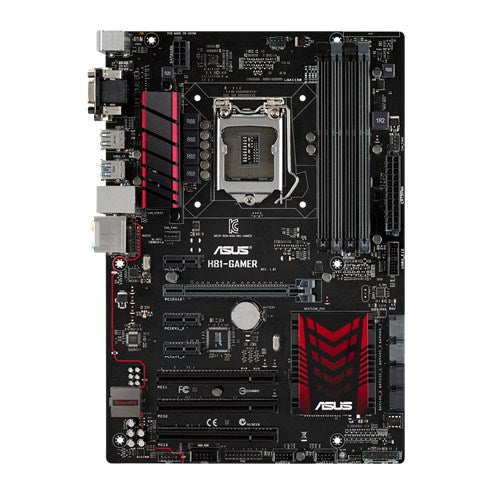

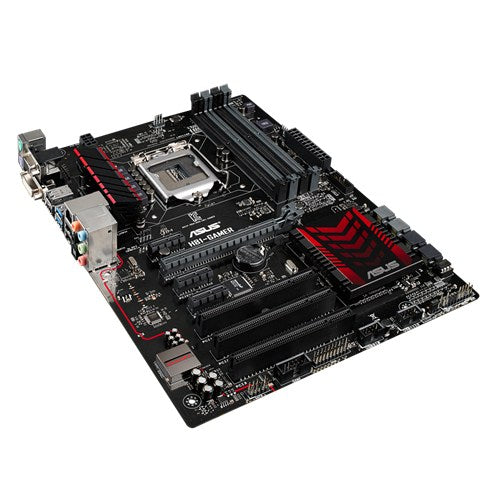

Asus H81-Gamer

Buy Asus H81-Gamer online for Rs.11900 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

H81 gaming board is fun fulfilled with SupremeFX audio, Intel LAN, and Gamer's Guardian components and AI Suite 3

• LGA1150 socket for the 4th and New 4th Generation Intel® Core™ i7/ Core™ i5 / Core™ i3, Pentium®, and Celeron® processors
• Dual Channel DDR3 1600MHz Support
• SupremeFX - Flawless audio that makes you part of the game
• Intel Gigabit Ethernet - Networking that just goes faster
• Gamer's Guardian – The real-world protection

Specification

CPU

Intel® Socket 1150 for the New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® H81

Memory

4 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
* Due to Intel® chipset limitation, this motherboard can only support single-side memories when four modules are installed and they will run at the maximum transfer rate of DDR3 1066 MHz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 2.0 x16 (x16 mode, gray)
3 x PCIe 2.0 x1
3 x PCI

Storage

Intel® H81 chipset :

2 x SATA 6Gb/s port(s), gray
2 x SATA 3Gb/s port(s), black
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

Intel®, 1 x Gigabit LAN Controller(s)

Audio

SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output

Audio Feature :

- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Optical S/PDIF out port(s) at back panel
- Audio amplifier: Provides the highest-quality sound for headphone and speakers

USB Ports

Intel® H81 chipset :

2 x USB 3.0/2.0 port(s) (2 at back panel, blue)

Intel® H81 chipset :

8 x USB 2.0/1.1 port(s) (4 at back panel, )

ASMedia® ASM1042 controller :

2 x USB 3.0/2.0 port(s) (2 at mid-board)

Special Features

Gamer's Guardian:

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
- DIGI+ VRM

ASUS EPU :

- EPU

ASUS Exclusive Features :

- GPU Boost
- AI Suite 3
- Ai Charger+
- USB 3.0 Boost
- Disk Unlocker

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert 2

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

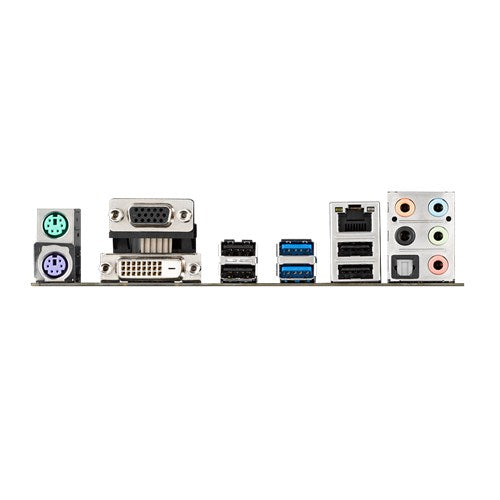

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports

1 x AAFP connector
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Form Factor

ATX Form Factor
12 inch x 8.4 inch ( 30.5 cm x 21.4 cm )
