Asus H61M-K

Buy Asus H61M-K online for Rs.5100 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featutres

Most cost-effective micro-ATX H61 choice with best UEFI BIOS support

• UEFI BIOS - Flexible & Easy BIOS Interface
• Network iControl - Regulate Network Bandwidth Real-time
• Anti-Surge - Full-time Power Guardian-Make System Free From Risk
• AI Suite II - One-stop Access to Innovative ASUS Features

Specification

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 77 W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® H61(B3)

Memory

2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

Graphic

Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

Expansion Slots

1 x PCIe 3.0/2.0 x16 *1
2 x PCIe 2.0 x1

Storage

Intel® H61(B3) chipset :

4 x SATA 3Gb/s port(s), blue

LAN

Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2

USB Ports

Intel® H61(B3) chipset

8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

Special Features

ASUS Exclusive Features

- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert

ASUS EZ DIY

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

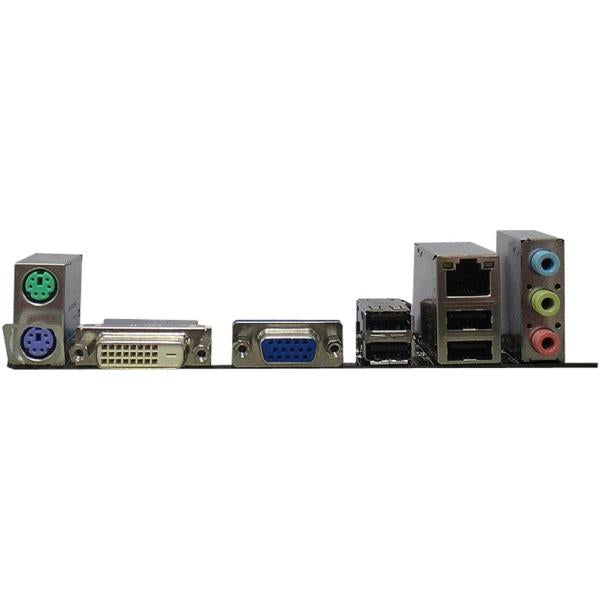

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

Accessories

I/O Shield
2 x SATA 3Gb/s cable(s)

BIOS

64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready
Manageability
WOL, PXE, PME Wake Up

Support Disc

Drivers
ASUS Utilities
ASUS Update
Anti-Virus Software (OEM Version)

Form Factor

uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
