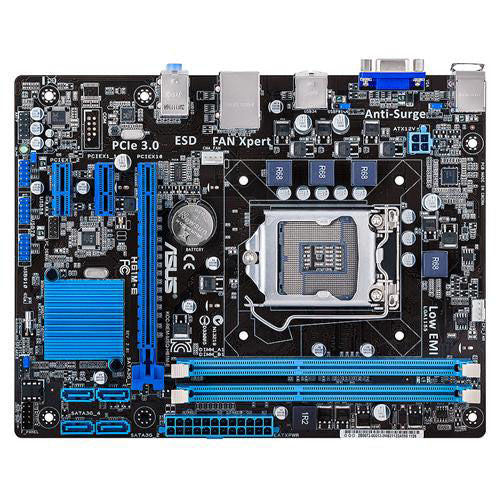

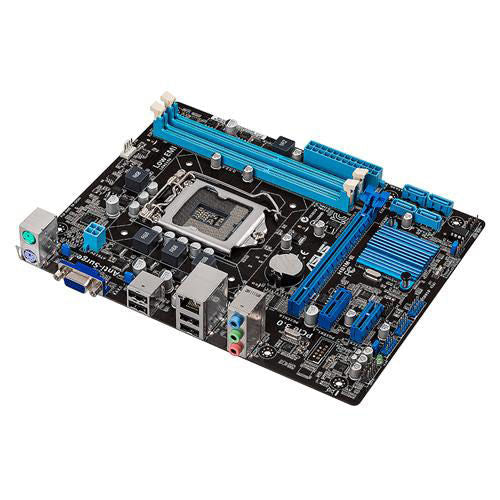

Asus H61M-E

Buy Asus H61M-E online for Rs.5100 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

Intuitive UEFI BIOS and easy network controls on H61 platform

• UEFI BIOS - Flexible & Easy BIOS Interface
• Network iControl - Regulate Network Bandwidth Real-time
• Anti-Surge - Full-time Power Guardian-Make System Free From Risk
• ESD Protection - Protect Your Computer with ESD Guards
• AI Suite II - One-stop Access to Innovative ASUS Features

Specification

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® H61(B3)

Memory

2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

Graphic

Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

Expansion Slots

1 x PCIe 3.0/2.0 x16 *1
2 x PCIe 2.0 x1

Storage

Intel® H61(B3) chipset

4 x SATA 3Gb/s port(s), blue

LAN

Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2

USB Ports

Intel® H61(B3) chipset

10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Special Features

ASUS Exclusive Features

- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl

ASUS Quiet Thermal Solution

- ASUS Fan Xpert

ASUS EZ DIY

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

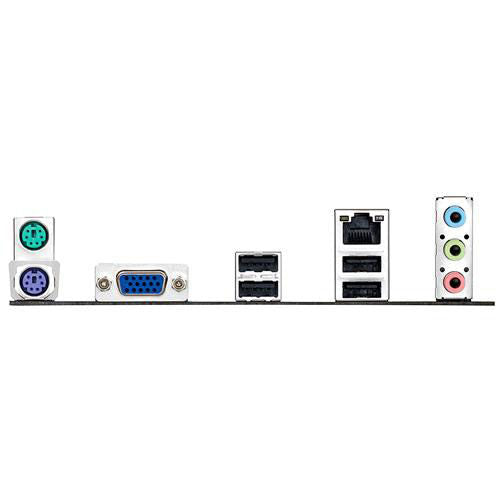

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

Accessories

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

BIOS

64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready
Manageability
WOL, PXE, PME Wake Up

Support Disc

Drivers
ASUS Utilities
ASUS Update
Anti-Virus Software (OEM Version)

Form Factor

uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
