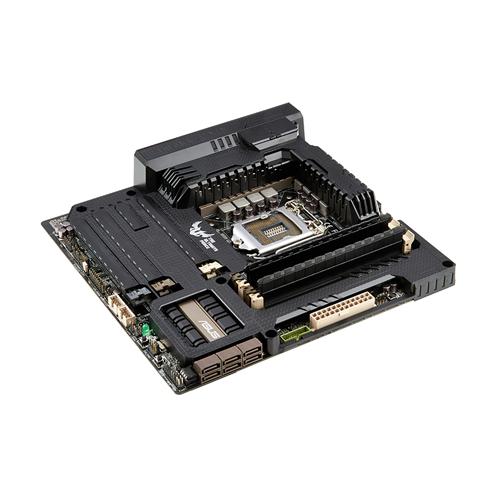

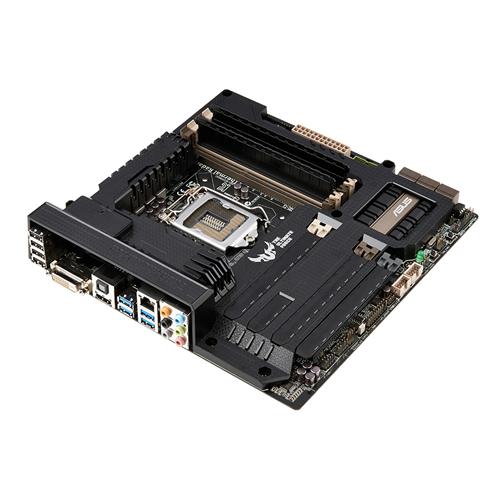

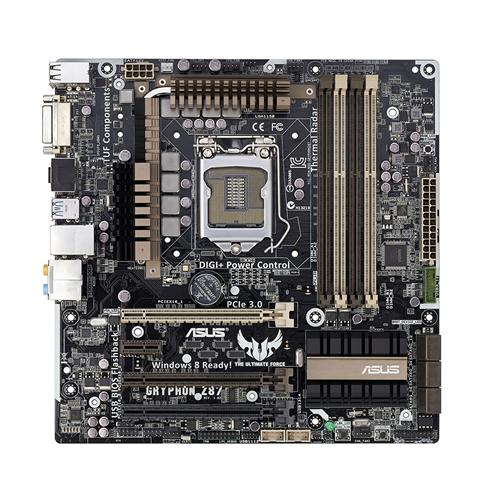

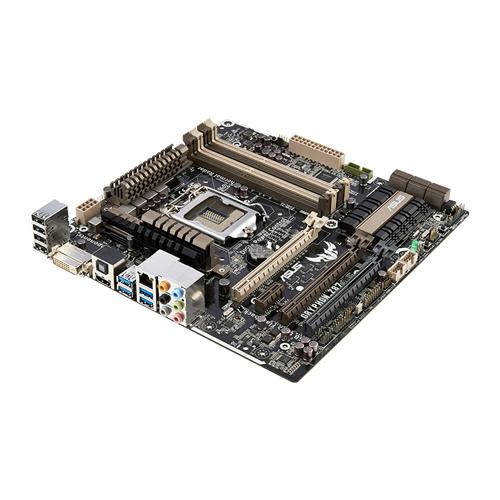

Asus Gryphon Z87

Buy Asus Gryphon Z87 online for Rs.20700 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featutres

• TUF mATX Intel® Z87 military-grade motherboard with advanced cooling and DIY flexibility
• TUF Thermal Radar 2
• TUF Components [Alloy Choke, Cap. & MOSFET; Certified by Military-standard]
• Server-grade Testing Program
• DIGI+ Power Control
• ESD Guards
• Featured by GRYPHON ARMOR KIT Support

Specification

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® Z87

Memory

4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1

Storage

Intel® Z87 chipset :

6 x SATA 6Gb/s port(s), brown
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

Intel® I217V, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection

USB Ports

Intel® Z87 chipset :

6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)

Intel® Z87 chipset :

8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

Special Features

TUF ENGINE! Power Design :

- 8 +2 Digital Phase Power Design
- TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility

Ultimate COOL! Thermal Solution :

- TUF Thermal Radar 2

ASUS Exclusive Features :

- Remote GO!
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- USB Charger+
- ESD Guards
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost

ASUS EZ DIY :

- DirectKey
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS

ASUS Q-Design :

- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

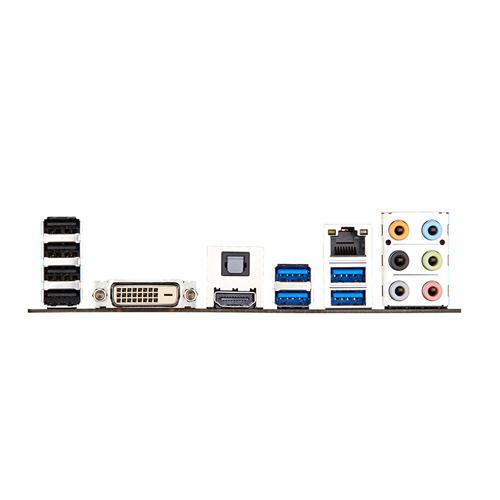

Back I/O Ports

1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x Assistant Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)

Accessories

User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers
ASUS Utilities
ASUS/TUF CPU-Z
Anti-virus software (OEM version)

Form Factor

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
