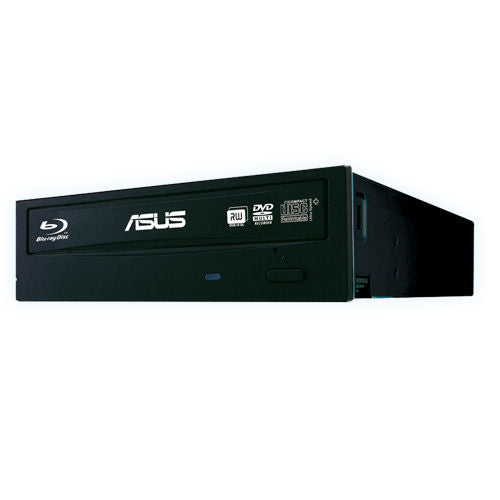

Asus BW-12B1ST Internal Blu-Ray Burner

12X Blu-ray High Speed

With the fastest 12X Blu-ray writing, it only takes 11 mins to back up 25GB* of data

The Best Burning Quality

OTS Technology increases burning success rates and provides users fast and high quality operation

Green Focus

E-Green auto-closes drive application when not in use, saving over 50% power consumption.

Data Protection Solution

E-Hammer helps users delete data permanently on a writable disc (CD-R and DVD-R), ensuring data security with no need to destroy the disc.

Double the Security On-the-Go

Disc Encryption II doubles the security with password-controls and hidden-file functionariy, protecting important user data.

Drag-and-Burn

Friendly interface with only three simple steps to burn a disc, making the process easier than ever

Color
Black

Read Speed
BD-R : 8X
BD-RE : 8X
BD-ROM : 8X
BD-R(DL) : 8X
BD-RE(DL) : 6X
BD-ROM(DL) : 8X
DVD+R : 16X
DVD-R : 16X
DVD+RW : 12X
DVD-RW : 12X
DVD-ROM : 16X
DVD+R(DL) : 12X
DVD-R(DL) : 12X
DVD-ROM(DL) : 12X
DVD-RAM : 12X
CD-R : 48X
CD-ROM : 48X
BDMV Playback : 4X
DVD Video Playback : 6X
VCD Playback : 16X
Audio CD Playback : 16X

Write Speed
BD-R : 12X
BD-R(DL) : 8X
BD-R(LTH) : 4X
BD-RE : 2X
BD-RE(DL) : 2X
DVD+R : 16X
DVD-R : 16X
DVD+RW : 8X
DVD-RW : 6X
DVD+R(DL) : 8X
DVD-R (DL) : 8X
DVD-RAM : 12X
CD-R : 48X
CD-RW : 24X

Writing Mode
BD-RE : Sequential Write/Random Write
BD-R : Sequential Write
DVD+R & DVD+R (DL) : Sequential Write
DVD-R & DVD-R(DL) : Incremental Recording
DVD+RW : Random Write
DVD-RW : DAO/Restricted Overwrite/Incremental Recording
DVD-RAM : Random Write
CD-R/RW : DAO/TAO/SAO/Packet Write

Access time
BD(SL/DL) : 250 ms
DVD : 150 ms
CD : 150 ms

Interface
SATA

OS Support
Windows® 7
Windows® Vista
Windows® XP

System Requirements
Processor: Pentium® D 945(3.4GHz) or higher
Memory:1GB or more is recommended
HDD:10GB or more
Graphics Card: NVIDIA® GeForce 7600 GT or ATI X1600 series or above
Use HDCP Compatible display and VGA card to High Definition digital output

Software
Cyberlink Power2Go 7
Cyberlink PowerDVD 10 (optional)
Cyberlink PowerBackup 2.5 (optional)
Cyberlink InstantBurn 5 (optional)
E-Green

Disc Formats
Audio CD, Video CD, CD-I, CD-Extra, Photo CD, CD-Text, CD-ROM/XA, Multi-session CD, BD video, DVD Video
Disc Diameters
12cm/8cm
Mounting Orientation
Vertical and Horizontal (+5° ~ -5°)

Dimensions
170 x 146 x 41 mm (LxWxH)

Weight
650 g

Power
DC+5V ±5%,DC+12V ±10 %

Temperature
Operating : 5 ? to 45 ?
Storage : -20 ? to 60 ?

Humidity
Operating : 5 % ~ 85 % (Non-condensing)
Storage : 15 % ~ 90 % (Non-condensing)
