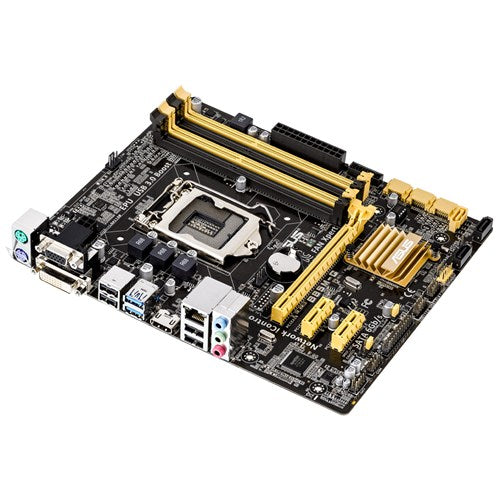

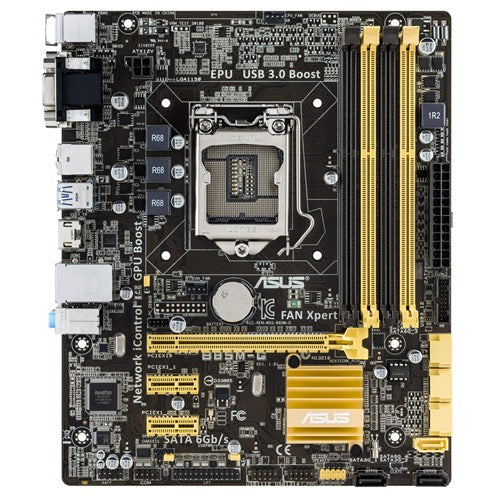

Asus B85M-G

Buy Asus B85M-G online for Rs.8300 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

Micro-ATX B85 features high-endurance 5X Protection and new UEFI BIOS

• ASUS 5X Protection: All-round protection provides the best quality, reliability, and durability
• USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
• Network iControl: Real-time network bandwidth management
• Fan Xpert :Dedicated CPU and case fan controls
• CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
• AI Suite 3: One-stop access to innovative ASUS features

Specification

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Celeron® dual-core/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® B85

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously

Expansion Slots

1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1

Storage

Intel® B85 chipset :

4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,

LAN

Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

USB Ports

Intel® B85 chipset :

4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)

Intel® B85 chipset :

8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

Special Features

ASUS 5X Protection :

- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

ASUS EPU :

- EPU
GPU Boost

ASUS Exclusive Features :

- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

ASUS Q-Design :

- ASUS Q-Slot
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

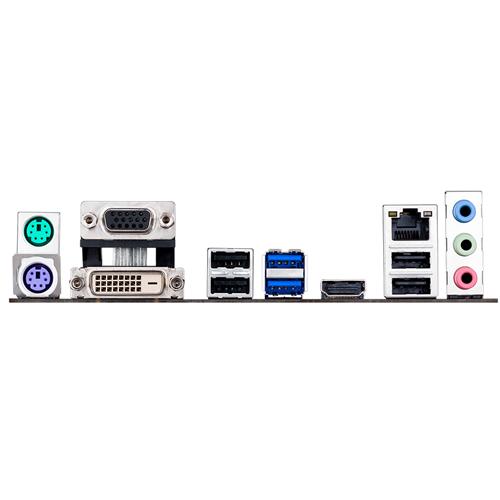

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)

Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)

BIOS

64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support Disc

Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor

mATX Form Factor
9.2 inch x 7.6 inch ( 23.3 cm x 19.3 cm )
