Asus B85-Pro Gamer

Buy Asus B85-Pro Gamer online for Rs.13500 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

High-value gaming board with SupremeFX audio, Intel LAN, and highly-durable components

• LGA1150 socket for 4th Generation Intel® Core™ i7/ i5/ i3, Pentium®/Celeron® Processors
• Intel® B85 Express Chipset
• Dual DDR3 1600 support
• SupremeFX - Flawless audio that makes you part of the game!
• Intel Gigabit Ethernet & GameFirst II - Networking that just goes faster!
• Sonic Radar - Scan and detect to dominate
• Gamer's Guardian for real-world protection!
• AI Suite 3 - Optimized performance, always!

Specification

CPU

Intel® for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Build in Intel® B85

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
3 x PCI
Storage

Intel® B85 chipset : *1

4 x SATA 6Gb/s port(s), gray
2 x SATA 3Gb/s port(s), black
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

Intel® I217V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST II

Audio

SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
- High-fidelity audio OP AMP(s)

Audio Feature :

- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Sonic Radar
- Optical S/PDIF out port(s) at back panel

USB Ports

Intel® B85 chipset :

4 x USB 3.0/2.0 port(s) (2 at back panel, , 2 at mid-board)

Intel® B85 chipset :

8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

ROG Exclusive Features

GameFirst II

Special Features

ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration

Gamer's Guardian

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O

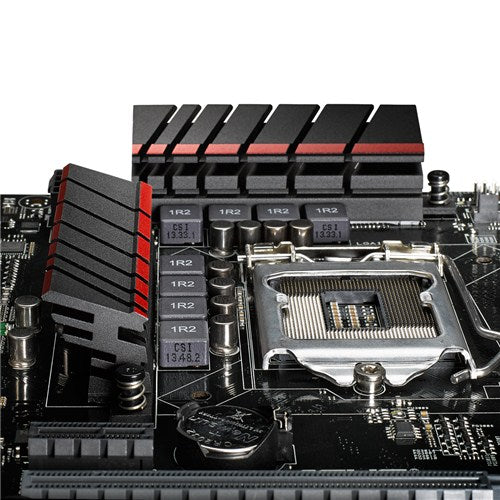

- DIGI+ VRM

ASUS TPU

- Auto Tuning
- TurboV
- GPU Boost without switch

ASUS EPU

- EPU

ASUS Exclusive Features

- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker

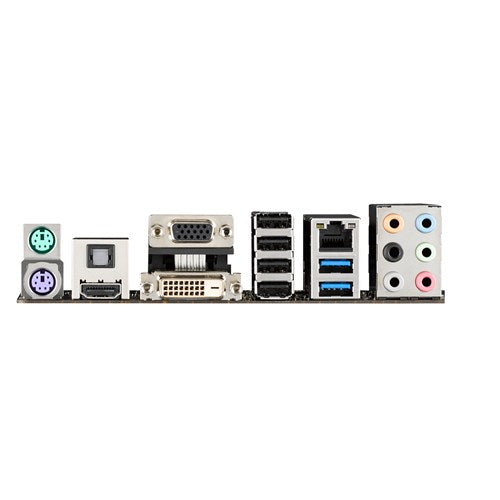

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

Accessories

User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS,ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version

Operating System

Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit

Form Factor

ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.8 cm )
