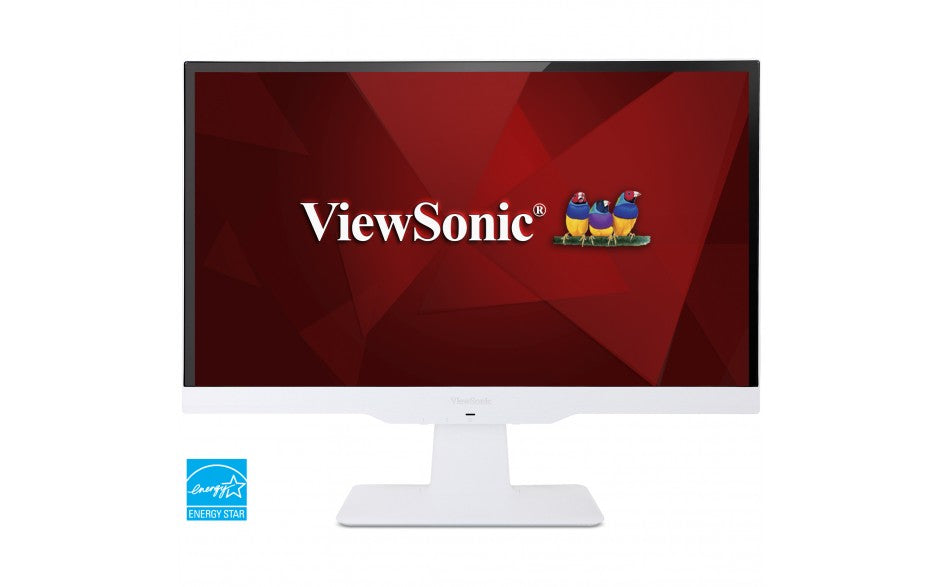

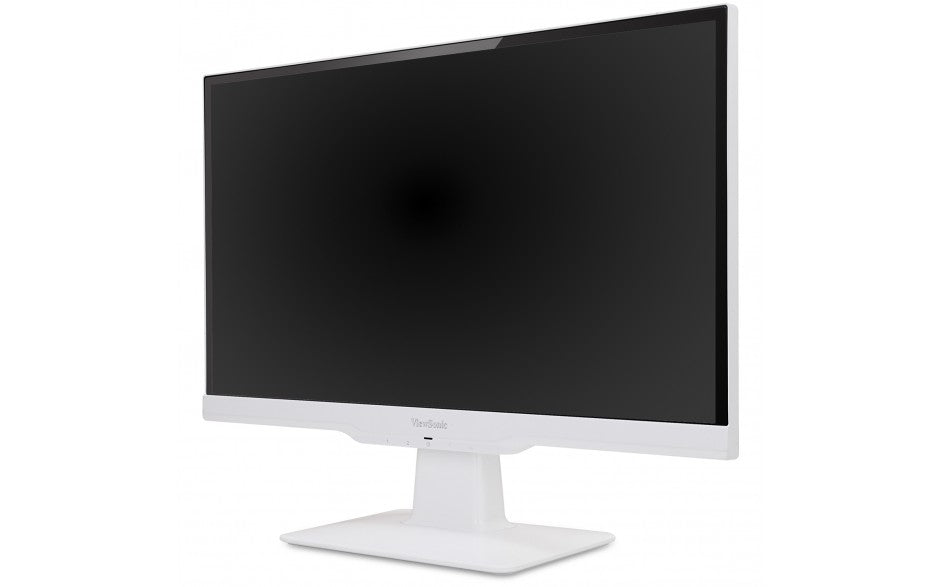

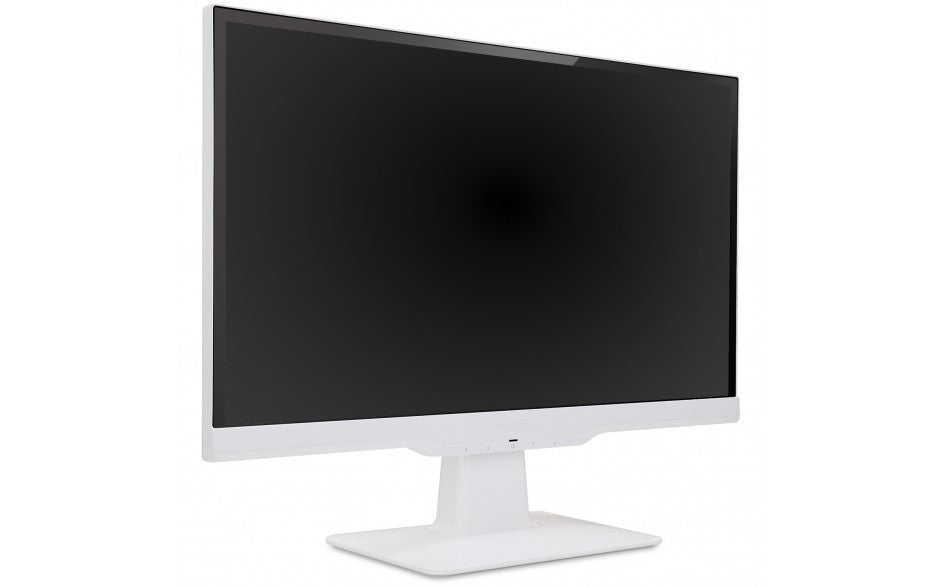

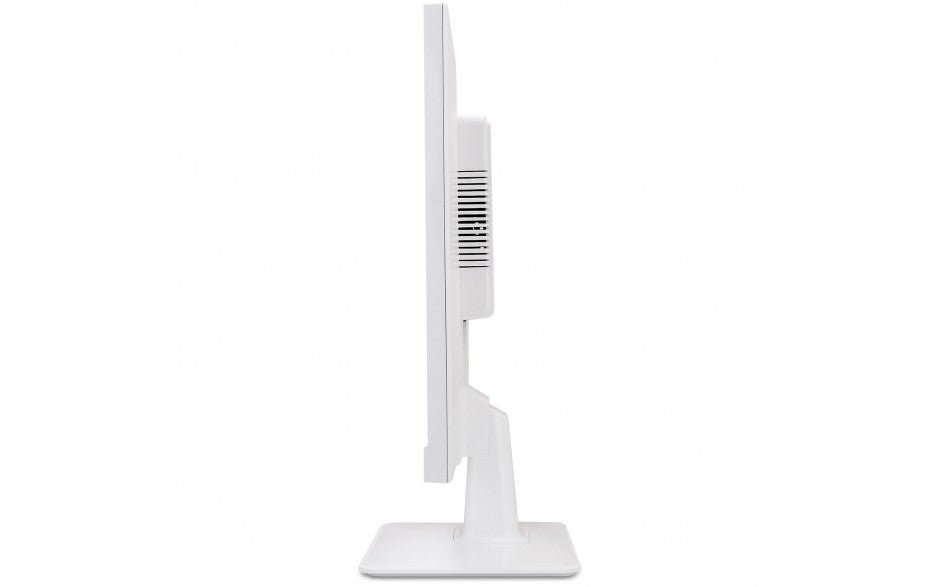

ViewSonic VX2263Smhl-W 22" LED

Description

The ViewSonic VX2263Smhl-W is a 22” (21.5” viewable) Full HD 1080p display designed for entertainment, gaming, and multimedia applications. An MHL port enables seamless connectivity, and simultaneous battery charging, of MHL-enabled mobile devices to facilitate easy content sharing and mobile gaming on a larger screen. Additional versatile connectivity options include HDMI and VGA ports for added convenience in traditional PC environments. In addition, ViewSonic’s SuperClear image enhancement technology delivers superior color performance with excellent color reproduction, while a 50M:1 MEGA Dynamic Contrast Ratio and integrated stereo speakers provide great multimedia and entertainment performance. Additional features include Eco-mode for increased energy savings, as well as a 100x100mm VESA mount for more flexible installation options. A premium design includes a frameless edge-to-edge glass faceplate and slim bezel beneath the glass, making the VX2263Smhl-W a stylish addition to any desktop.

Full HD 1080p Resolution

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.

*The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product.

Larger Screen for Mobile Devices

An integrated MHL port enables users to connect compatible high-definition mobile devices, such as smartphones and tablets, directly to the monitor. This allows digital content from mobile devices to be viewed on a larger screen, while also simultaneously charging the batteries of the mobile device.

The Power of HDMI®

HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.

Frameless Design

Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.

Lower Energy Consumption

With an energy-saving Eco-mode feature and ENERGY STAR compliance, this monitor delivers great power savings along with its stunning screen performance.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience. An additional speaker can be added via the SPDIF audio-out port for expanding sound to different locations in the room or venue, via cable.

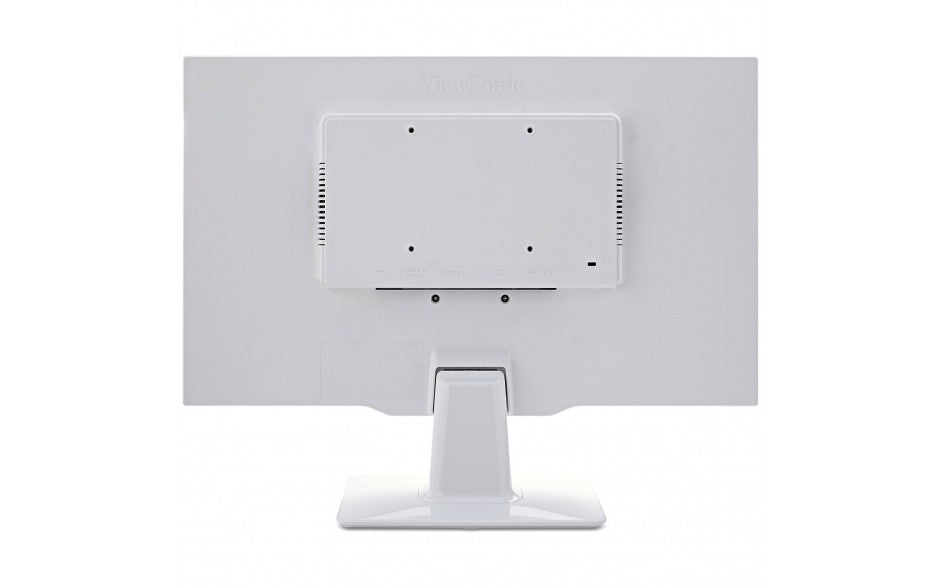

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient 100 x 100mm VESA-compatible mount design.

ViewMode

ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Key Features

• SuperClear image enhancement technology with wide viewing angles for excellent color performance
• MHL connectivity with charging capability to enable gaming or content sharing from mobile devices
• Additional HDMI and VGA inputs for flexible connectivity
• Full HD 1080p, 50M:1 MEGA Dynamic Contrast Ratio, and superior front-of-screen performance
• Frameless, glossy-finish premium design
• ViewSonic proprietary Eco-mode provides additional energy savings
• VESA-mountable design for flexible placemen

General

Regulations
FCC-B (including ICES003), UL, ENERGY STAR® 6.0, EPEAT Silver, Mexico NOM, Mexico Energy, NRCan

PACKAGE CONTENTS
VX2263Smhl-W display, power cable, AC/DC adapter, VGA cable, HDMI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD (User Guide)

Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.

Lcd

Type
21.5" Wide Color a-Si TFT Active Matrix

Video Input

Sync
Separate Sync

Display

Panel Surface
3H Anti-glare, hard-coating

Dynamic Contrast Ratio
50,000,000:1

Viewable Area (in.)
21.5

Static Contrast Ratio
1000:01:00

Viewing Angles
178º horizontal, 178º vertical

Light Source
LED

Resolution
1920 x 1080

Type
IPS

Minimum Backlight Life (Hours)
30,000

Brightness (typ.)
250 cd/m2

Response Time (typical, GTG)
2ms

Display Size (in.)
22

Compatibility

Mac® Resolution (max)
1920 x 1080

PC Resolution (max)
1920 x 1080

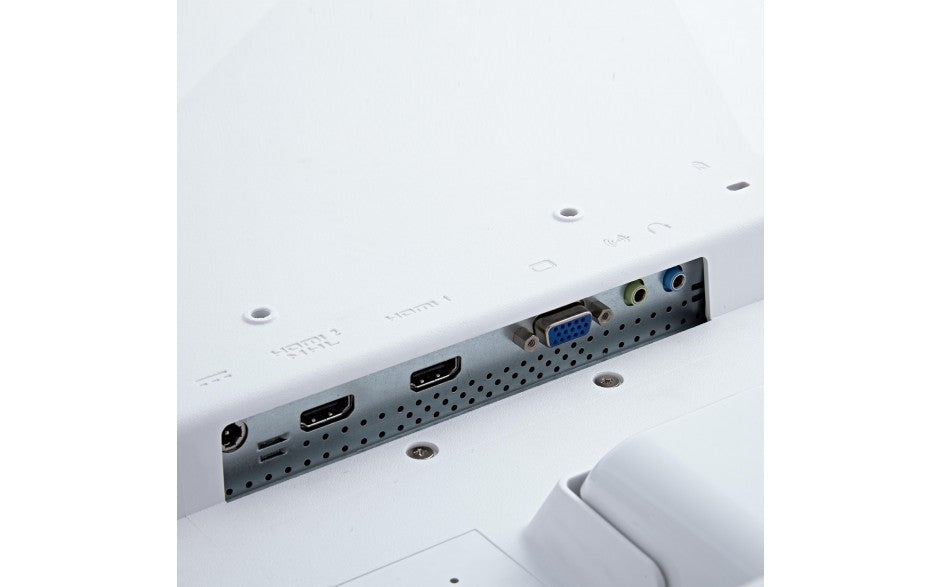

Connector

HDMI MHL
1

HDMI
1

VGA
1

3.5mm Audio Out
1

3.5mm Audio In
1

Audio


Internal Speakers
1.5-watt (x2)

Power

Eco Mode (optimized)
17W

Eco Mode (Conserve)
14W

Consumption (typical)
20W

Voltage
AC 100–240V (universal), 50 / 60Hz

Additional Hardware

Kensington Lock Slot
1

Controls

Physical Controls
1, 2, Down, Up, Power

On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)

Operating Conditions

Temperature
32–104º F (0–40º C)

Humidity (non-condensing)
10–90%

Mount

VESA Compatible
100 x 100 mm

Video Signal

Frequency Horizontal
24~83kHz

Frequency Vertical
50~76Hz

Ergonomics

Tilt (Forward / Back)
5º / 15º

Weight (metric)

Net Without Stand (kg)
2.6

Net with Stand (kg)
2.9

Gross (kg)
4.5

Weight (imperial)

Net With Stand (lbs)
6.4

Net Without Stand (lbs)
5.7

Gross (lbs)
9.9

Dimensions (metric) (wxhxd)

Packaging (mm)
560 x 392 x 132

Without Stand (mm)
498.8 x 312.4 x 41.0

With Stand (mm)
498.8 x 387.7 x 164

Dimensions (imperial) (wxhxd)

Without Stand (in.)
19.6 x 12.3 x 1.6

With Stand (in.)
19.6 x 15.3 x 6.5

Packaging (in.)
22.0 x 15.4 x 5.2
