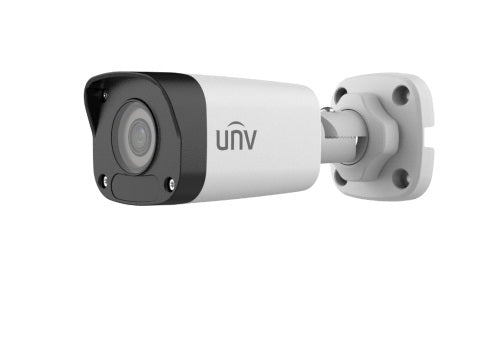

Uniview IPC2124LB-SF28-A 4MP Fixed IR Mini Bullet Network Camera

Buy Uniview IPC2124LB-SF28-A 4MP Fixed IR Mini Bullet Network Camera online at Rs. 13290  . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

High quality image with 4MP, 1/3.0"CMOS sensor

4MP (2560*1440)@25/20fps; 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps H.265, H.264

Smart IR, up to 30m (98ft) IR distance

Day/night functionality

2D/3D DNR (Digital Noise Reduction)

IP67 protection DC12V or PoE(IEEE 802.3af) power supply

3-Axis

Sensor 1/3", 4.0 megapixel, progressive scan, CMOS

Min. Illumination Colour:0.01 lux (F2.1, AGC ON)

0 lux with IR

Day/Night IR-cut filter with auto switch (ICR)

Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate:

0°~360° WDR DWDR

S/N >55dB

Lens Lenstype 2.8mm@F2.1

Iris Fixed

Field of View (H) 97°  Field of View (V) 52.2°  Field of View (D) 107.5° DORI

DORI Distance

Lens(mm) Detect (m) Observe (m) Recognize (m) Identify (m)

2.8 63.0 25.2 12.6 6.3

Illuminator

IR Range Up to 30m (98 ft) IR range Wavelength 850nm

IR On/Off Control Auto/Manual

Video Video Compression H.265, H.264

Frame Rate Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), Max

25fps;2MP(1920*1080),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max

30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps Video Bit Rate 128

Kbps~6144Kbps U-code Support

OSD Up to 4 OSDs Privacy Mask Up to 4 areas per scene ROI Up to 8 areas Video stream

Dual streams

Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction 2D/3D DNR

Smart IR Support

Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support

BLC Support

Defog Digital Defog

Events Basic Detection Motion detection

3DATASHEETGeneral Function Watermark, IP Address Filtering, Access Policy, ARP

Protection, RTSP Authentication, User Authentication Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP,

FTP, UPnP, HTTP, HTTPS, SMTP,Qos,SSL/TLS

Compatible Integration ONVIF (Profile S, Profile T),API,SDK

User/Host Up to 32 users. 3 user levels: administrator / operator /common user Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and

digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest

authentication for ONVIF

Client

EZStation

EZLive

EZView Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52

and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface Audio I/O N/A

Alarm I/O N/A

Serial Port N/A

Built-in Mic N/A

Built-in Speaker N/A

WIFI N/A

Network 1 * RJ45 10M/100M Base-TX Ethernet

Video Output N/A

Certification

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2:

2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)

CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach

(Regulation (EC) No 1907/2006)

Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power DC12V(±25%) , PoE(IEEE 802.3af)

Power consumption: Max 5.0W

Dimensions(L x W x H) 161 × 63 ×62mm (6.3” × 2.5” × 2.4”)

Weight 0.36kg(0.79lb)

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge protection 4KV

Reset button N/A
